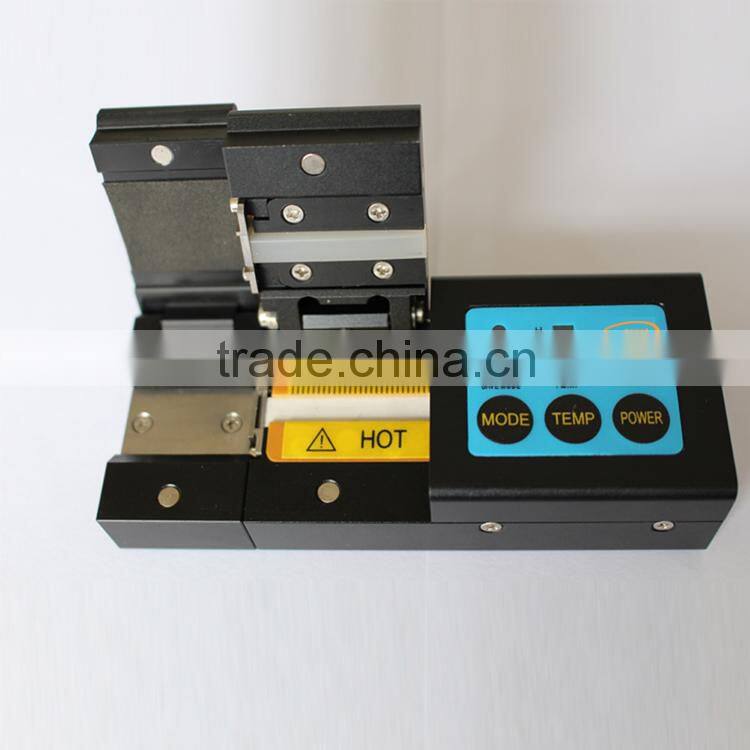

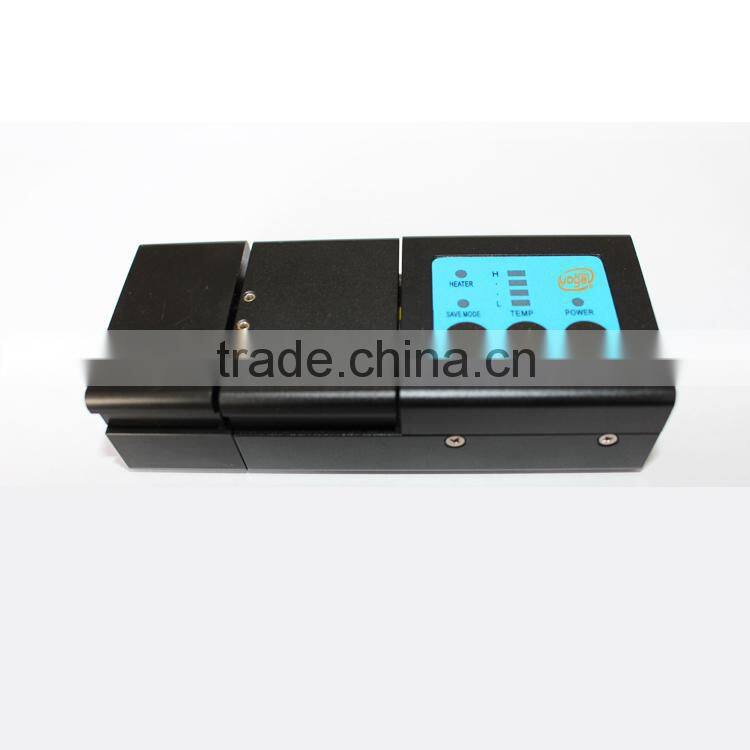

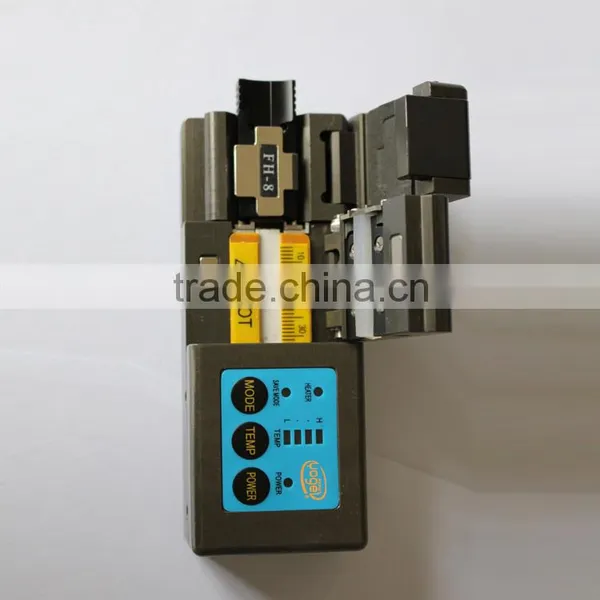

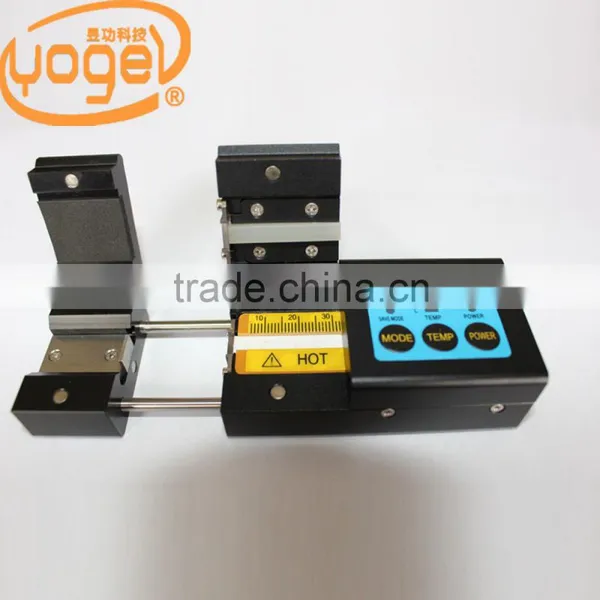

FTTH drop cable stripper tool adjustable fiber optic stripper hot sales fiber optic stripper
Thermal Strippers operates on ac power or the splicer's batteries. It's designed to conserve power for field stripping operations when conducted by battery power. Normal and battery save modes are selectable. A temperature selection switch provides easy optimization in the field for different fibers or operating conditions.
Linear bearing guide and thermal stripping to ensure no damage, easy-strip coating the fiber, stripped the speed and other characteristics.
Key Features
Low Insertion Loss
High Performance
Waterproof and Anti-corrosive
High environmental stability
Applications
1.Fiber Optical Communication Systems
2. Optical Fiber CATV
3. Passive Optical Network (PON)
4. Fiber Optic Amplifiers
5. Fiber Optic Access Networks/LAN
6. Monitoring Systems
7. Optical Fiber Sensor
Specifications
Specification | |
Coating stripped length |
Up to 30mm |
Heating mode |
Normal mode |
Power saving mode | |
Temperature setting |
This machine is equipped with 70 ° C, 80 ° C, 90 ° C, and100 °C Fourth gear |
Fiber fixing method |
Using the FH-1, FH-2 FH-4 and FH-8, FH-12 fixture |
Power supply mode |
Using an adapter to convert DC12V power |
Dimensions |
118.5 (L) X 46 (D) X 31.5 (H) mm |
Weight |
300g |
Environmental requirements |
Temperature 0-40 ° C temperature is below 85% |
Equipped with a heater to heats the coating of fiber to soften it for smooth stripping
Designed to strip the coating of the mass fiber up to 12 fibers ribbon.
Equipped with a heater to heats the coating of fiber to soften it for smooth stripping.
Convenient installation
|
main technical parameters
| |
Features |
This unit has the overall function of stripping and window strip |
Stripped Length |
Max 30mm |
Heating Mode |
Normal mode |
|
Power-saving mode |
Temperature Setting |
Four Temperature: 70℃,80℃,90℃,100℃ |
Fiber Clamped Mode |
Serials of clamps: FH-1,FH-2,FH-4,FH-8,FH-12 |
Power Supply |
DC 12V power supply using the adaptor conversion |
Dimensions |
118.5(L) X 46(D) X 31.5(H) mm |
Weight |
300g |
Environmental requirements |
Humidity below 85% % |
1pieces/carton, Optical Fiber Product can be OEM and ODM
We can design some special packaging according to customer's requirement
Delivery Detail
3~5 days after receipt of deposit for little orders
Shanghai Yogel Communication Equipment Co.,Ltd.
welcome to visit our factory!
| Fast delivery |
| Competitive price |
| Reliable quality, OEM service available |
| Prompt answer for any question or inquiry |
| Steady quantities supply, Strict quality control |
| Professional product and technical support |
| advanced technology and anefficient management team |
| Excellent OWIRE or your own brandbox/roller design and package |
| We can provide goodservices on logistic andother help you may need |
Yogel mainly specializes in developing and manufacturing optical fiber patch cord and optic communication equipment,WDM, CWDM, DWDM, optical switch, circulator, isolator, adaptor,attenuator,conector,patchcable,loopbacks, Optical Equipments,Etc.
The core of Yogel is honesty and efficiency.our company has been audited and approved ISO9001,CE. For any question,pls feel free to contact us.Your inquiry is expected! Warmly welcom you to inquiry us for this product.
The special injection molding process provide each connecion greater durability in resisting pull ,strain and impacts from cabling installs on the other hand each cable is 100%optically inspected and tested for insertion loss before you receive it .It also have great performance in immune to electrical interference .
Shanghai Yogel Communication Equipment Co., Ltd was founded in July,2012. (The former company was founded in 2004). The whole team has over 60 technical and management staffs with Master and Bachelor degree, and nearly 200 employees.The company invariably focus on production,sales and technology service of fiber optics products.
Supplier Assessment Reports are detailed on-line reports about the supplier's capabilities.
It helps you get all the information you need to trade confidently with suppliers.
- Fiber Optic Patch Cord
- Fiber Optical FTTX products
- Optical Fiber Test Instruments
- Optical Fiber Attenuator
- Fiber Optical Couplers
- Optic Fiber and Cable Distribution Products
- PLC or FBT Optic Fiber Splitter and Chips
- Optical Distribution Unit/ Optical Splitter Box
- For more product please kindly send me a email
|
Before Sale Service |
professional offer detailed products test report related specifications |
| Contract Manufacturing |
OEM Service Offered Design Service Offered Buyer Label Offered |
1. Can I get some samples for optical fiber product?
Yes, Sample order is available for quality check and market test .But you have to pay the express cost.
2. What’s delivery time ?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3. What’s your payment terms ?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4. What’s your Fiber Type?
We provide G.652D Fiber , can be customized.
5. Do you have the products in stock ?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6. How does your factory do the quality control ?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping.
7.How to contact us?
If you have any questions or requirements, please send your Enquiry Details in the Below, Click "Send" Now! Or "the onlineTM".
