Home > Instruments & Meters > Test Instrument > Test Machine > CHC Z-survey Z6 GNSS Receiver, Powerful Survey Equipment, RTK GNSS

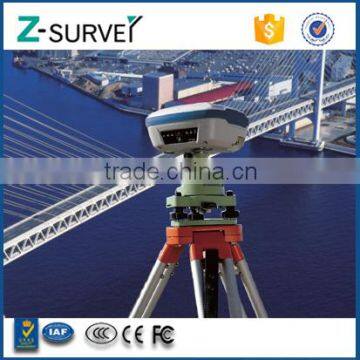

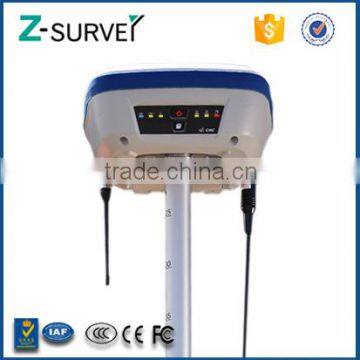

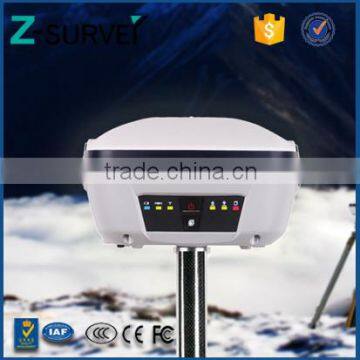

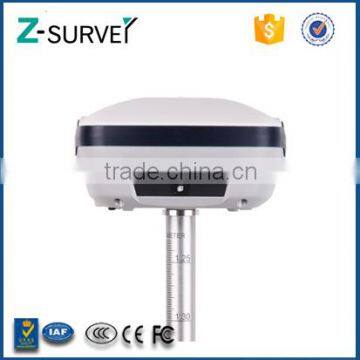

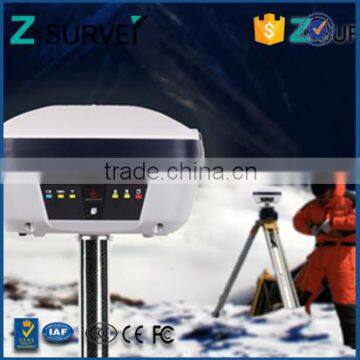

CHC Z-survey Z6 GNSS Receiver, Powerful Survey Equipment, RTK GNSS
US$ 8,500 - 11,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Z-survey
Model Number:
Z6
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CHC X20+/X20i(iOS) Bridge Construction Equipment Gis Supplies PriceUS$ 2,600 - 3,800MOQ: 1 Piece -
CHC X20+/X20i(iOS) Rugged Dgps Optical Measuring Machine GPS L1US$ 2,600 - 3,800MOQ: 1 Piece
-
CHC X90+ GPS Static Receiver, Post Processing Receiver, GNSS ReceiverUS$ 4,000 - 5,500MOQ: 1 Piece
-
Z-survey Z6 GNSS Receiver, Navigation GPS, Powerful Survey EquipmentUS$ 8,500 - 11,000MOQ: 1 Piece
-
CHC X20+/X20i(iOS) Rugged Gnss Gps Surveying Instruments ChineseUS$ 2,600 - 3,800MOQ: 1 Piece
Place of Origin
Shanghai, China
Brand Name
Z-survey
Model Number
Z6
Z-survey Z6 GNSS Receiver, Powerful Survey Equipment, RTK GNSS

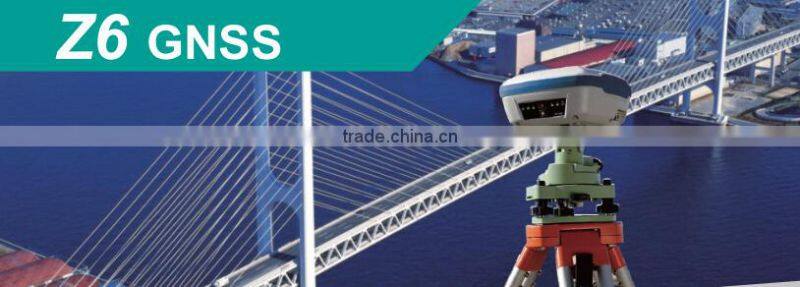

The Z-Survey Z6 GNSS is a highly integrated receiver combining GNSS chip, antenna, UHF and GPRS
modules together with the excellent fabrication process, makes you confident of facing any challenge.
With the ability to track every satellite signals from all existing constellations and a wide range of satellite
signals, the Z6 provides more powerful antiinterference ability, higher measurement precision as well as
more optimized solution for very long baselines, which eliminate you the worries in any harsh environment.
rtk gnss
Z-survey Z6 RTK GNSS Kit
| Z6 GNSS RTK | 220 Channel | ||
| Part Number | Description | Pcs |
| Z6 Kit w/ Internal Tx/Rx: 450-470 MHz | ||
| Z6 Kit w/ Internal CHC Rx: 450-470 MHz | 1 | |
| 1173 806 217 | Z6 GNSS Receiver | 1 |
| 0402 000 006 | UHF Whip Antenna | 1 |
| 0406 000 038 | Transport Hard Case | 1 |
| 0403 000 038 | GNSS to PC Data Cable | 1 |
| 0101 060 019 | Internal Tx/Rx Datalink rtk gnss | 1 |
| Z Series Base Accessory Kit | ||
| Z Series Base Accessory Kit | 1 | |
| 0505 990 001 | Battery Charger w/ Power Adapter with Cord | 1 |
| 0405 000 007 | Lithium Battery | 2 |
| 0403 000 043 | H.I. Tape | 1 |
| 0403 000 046 | Tribrach w/ Optical Plummet | 1 |
| 0403 000 044 | Tribrach Adaptor | 1 |
| 0404 000 047 | Extension Pole | 1 |
| 0403 000 108 | External Power Cable | 1 |
| Z Series Rover Accessory Kit | ||
| 0505 010 005 | Z Series Rover Accessory Kit | 1 |
| 0505 990 001 | Battery Charger w/ Power Adapter with Cord | 1 |
| 0405 000 007 | Lithium Battery | 2 |
| 0404 000 004 | 2M Range Pole w/ Bag rtk gnss | 1 |

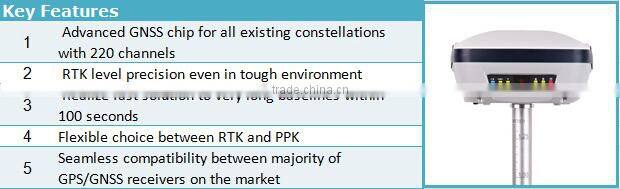

Key Features
rtk gnss
Specifications
| GNSS characteristics | |
| 220 channels | with simultaneously tracked satellite signals |
| - GPS: L1C/A, L1C, L2C, L2E, L5 | |
| - GLONASS: L1C/A,L1P, L2C/A, L2P, L3 | |
| - SBAS: WAAS, EGNOS, MSAS | |
| - Galileo: E1, E5A, E5B (test) | |
| - BeiDou: B1, B2 (optional) | |
| Advanced multipath mitigation technology | |
| Low noise carrier phase measurement rtk gnss | |
| Performance specifications | |
| Real Time Kinematics (RTK) | - Horizontal: 8 mm + 1 ppm RMS |
| - Vertical: 15 mm + 1 ppm RMS | |
| - Initialization time: typically < 10 s | |
| - Initialization reliability: typically > 99.9% | |
| Post Processing Static | - Horizontal: 3 mm + 0.5 ppm RMS |
| - Vertical: 5 mm + 0.5 ppm RMS | |
| - Baseline Length:≤300 km | |
| Communications | |
| 1 x RS232 serial port | 1 x high speed USB |
| Integrated 3G modem (WCDMA) | Integrated Bluetooth ® |
| 1 x Radio antenna connector | 1 x GPRS antenna connector |
| CHC radio modem internal Rx: 410430/450470 MHz | |
| Optional radio modem(2) | - Internal Rx/Tx: 403473 MHz |
| - External Tx DL5C: 5W/10W/20W/28W | |
| Protocols | - RTCM2.x, RTCM3.x, CMR, CMR+ input and output |
| - NMEA0183 output | |
| - HCN outputs for GNSS raw data | |
| Data Storage | 4 GB internal memory, up to 32 GB expansion |
| Physical rtk gnss | |
| Size (LxWxH) | 180 x 80 mm (7.1 x 3.2 in) |
| Weight | 1.2 kg with battery (42 oz) |
| Operating temperature | -45 °C to +75 °C (-49°F to 167°F) |
| Storage temperature | -50 °C to +85°C (-58°F to 185°F) |
| Humidity | 100% condensation |
| Waterproof and dust proof | IP67 protected from temporary immersion to depth of 1 meter |
| Shock | survives a 2meter drop on to concrete |
| Electrical | |
| Power consumption | 2.8W |
| Liion battery capacity | 2200mAh |
| Battery life | typical 4.5 hours in RTK mode |
| External power input | 918 VDC |
| Software(optional) | |
| Landstar field data collection software rtk gnss | |
Packaging Details
CHC provides the most reliable packaging to perfictly protect the equipment from transportation damages.
rtk gnss
Production Lines
CHC has the latest production facilities, professional production lines and strict testing requirement to make sure every device on your hands is with good quality and can be trusted rtk gnss
Contact Us
CHC will always dedicate the best service to you. rtk gnss
|
Shanghai Huace Navigation Technology LTD.
599 Gaojing Road, Building C,
Reliable - Powerful - Competitive |
|
rtk gnss
