Place of Origin Shanghai, China
Brand Name CHC
Model Number X90+

CHC X90+ Post Processing GNSS Receiver



CHC X90+ GPS Static Receiver, Post Processing Receiver, GNSS Receiver





The  X90+ L1/L2  GPS/GNSS receiver  is  designed  to  enable  every surveyor to access to high precision, robust performances and reliable technology but  without  the  common  price  constraints  usually  associated with GPS investment. The X90+ GPS  receiver  matches  a wide range of  applications requiring  static positioning, and  PPK  as  well.



X90+ GPS/GNSS Receiver kit



X90+ GPS Post Processing | 24 Channel
Part Number Description Pcs
X90+ Kit
0505 040 001 X90+ Kit 1
1190 403 026 X90+ GPS Receiver Static Only 1
0406 000 009 Carrying Pouch 1
0403 000 038 GPS to PC Data Cable 1
0403 000 108 External Power Cable 1
0505 990 001 Battery Charger w/ Power Adapter with Cord 1
0405 000 007 Lithium Battery 2
Post Processing Software
1904 210 571 CGO Post Processing Software 1









Competitive  and  Reliable
The  X90+ breaks  the  price  barrier  for  centimeter  level  accuracy positioning  and  provides  extremely quick  return    on  investment compared to equivalent GPS technology or traditional optical survey equipment.


Outstanding  Performances
Just  positioning  the  X90+ and  turning  it  on,  data  recording starts automatically and collection continues until the receiver is turned off. Baselines up to 100 KM process, day or night.


Compact and Lightweight
Only 20 cm (7.9) in diameter makes the X90+  only weight 1,4 kg (3.08lbs). It significantly reduces tiredness of the surveyors in the field work.

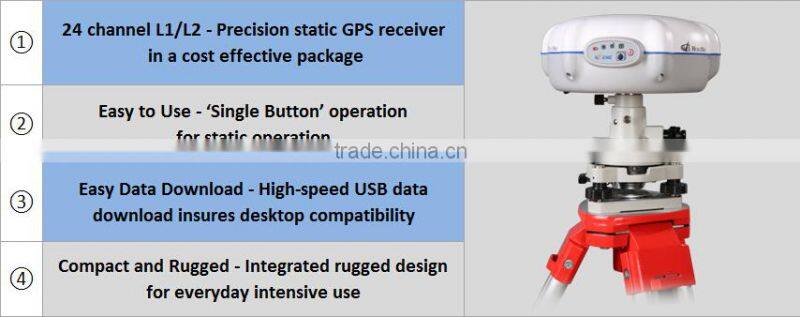

Key Features

  static gnss  Receiver

CHC X90+ GPS Static Receiver, Post Processing Receiver, GNSS Receiver



Specifications

CHC gnss receiver

GPS Characteristics

·  24 channels
­ −         GPS: 12x L1, 12x L2
·  Advanced multipath mitigation
·  Optimized for low­elevation satellite tracking
Performance specifications

· Post Processing Static
­ −          Horizontal: 5 mm+1 ppm RMS
­ −          Vertical: 10 mm+ 2 ppm RMS
· Post­Processed Kinematic
­ −          Horizontal:  5­10 cm

−         Vertical: 10­20 cm

Communications

· 1x RS232 serial port
· 1x high speed USB
· Protocols

−         RINEX and HCN outputs for GPS raw data
· Data Storage:
­ −        4 GB internal memory
−         GPS device mounts as a USB external hard drive

Physical

· Size (H×D): 85 x 200 mm (3.35 x 7.85 in)
· Weight: 1.4 kg with battery (49 oz)
· Working Temperature: ­-30 °C to +60 °C (­22 °F to 140 °F)
· Storage Temperature: ­-40 °C to +70°C (­40 °F to 158 °F)
· Humidity: 100% condensation
· Dust proof: IP67
· Waterproof: protected from temporary immersion to depth of
  1 meter, floats.
· Shock: survives a 2 meters drop onto concrete

Electrical

· Power consumption: 2.6 W
· Battery capacity: 2200 mAh
· Operating times on internal battery Up to 6 hours
· External power input: 9­18 VDC

Software

· Optional CGO software
−         Static office software
­ −         Combined ease of use and advanced data quality control



Packaging Details

  CHC GNSS  receiver is the best post-processing receiver

CHC X90+ GPS Static Receiver, Post Processing Receiver, GNSS Receiver

CHC provides the most reliable packaging to perfectly protect the equipment from transportation damages.



Production Lines

chc x90+ gnss receiver is the best post processing receiver.

CHC X90+ GPS Static Receiver, Post Processing Receiver, GNSS Receiver

 CHC has the latest production facilities, professional production lines and strict testing requirement to make sure

 every device on your hands is with good quality and can be trusted.



Contact Us

 If you have any question on our x90+ gnssreceiver, please feel free to contact us.

CHC will always dedicate the best service to you.



   Shanghai Huace Navigation Technology LTD.




    599 Gaojing Road, Building C,
    201702, Shanghai, China

    Phone: +86 21 5426 0273













    Reliable - Powerful - Competitive

 CHC X90+ GPS Static Receiver, Post Processing Receiver, GNSS Receiver

CHC X90+gnss receiver can well finish every kind of harsh survey job as required
