Home > Products > New Products > Baking-free brick machine with the hydralic press brick making machine

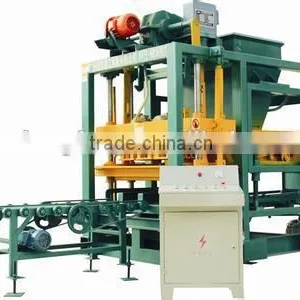

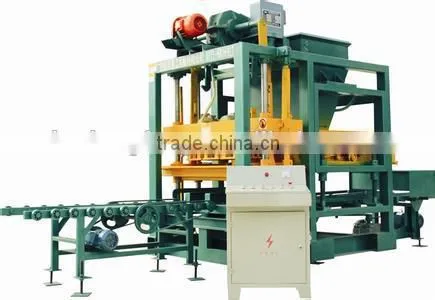

Baking-free brick machine with the hydralic press brick making machine
- 100 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T Credit Card
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Other, block making machine:hollow brick, porous brick and cement solid brick | Brick Raw Material: | Other, sand, stone powder, fly ash, cement, slag, etc, |
Processing: | Brick Molding Machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 38000pcs/day | Place of Origin: | Henan, China | Brand Name: | Dongfang |
Voltage: | 380V | Power: | 20.5 kw | Dimension(L*W*H): | 3700*2100*2700mm |
Certification: | ISO, BV, | Warranty: | 1year |
Product Description
1. Introcuction of baking-free brick machine:
The baking-free brick machine can highly reduced the humam power with low cost.
The working principle is :Raw materials after screening and crushing, through pressure and vibration, become one-time and final molding blocks.
1) qt4-20 block making machine.is an equipment involving mechnical, hydraulic and electrical control systems. It is characterized by high efficiency, reasonable design, compact structure, easy operating and convenient maintenance.
2). For the product forming, the machine takes the hydraulic force as the main and the mechanical force as the auxiliary, through vibrating and pressing, to finish the forming procedure. The formed products are high in compressive strength, good in density, perfect in anti-frost and precise in dimensions.
3).Its four guiding columns are coated with cadmium, having perfect torsional strength and wearing capacity. Its material distributor, using sensor and hydraulic proportional driving technologies, can produce forced centrifugal discharging under the function of swing and arc-breaking mechanism to provide quick and even material distributing, and to increase the productivity.
2.The advantage of baking-free brick machine:
Our machine have passed the ISO 9001:2000 certificate.
Low investetment,
Low failure rate of the product.
It is a new type of machine which has the characteristics of energy conservation and environmental protection.
3.The production capacity of baking-free brick machine:
| Size | Pcs/Mould | Pcs/Day |
Hollow Block | 390mmX190mmx190mm | 4 | 5800 |
Cellular Brick | 390mmx115mmx90m | 12 | 18000 |
Standard Brick | 240mmx115mmx52mm | 26 | 38000 |
other requirment of baking-free brick machine:
Working site | 2000-3000m^2 | Working shed | 500m^2 |
Raw material work shop | 500m^2 | Office | 50m^2 |
Staff and workers | 7-8 people | Power distribution | 40kw |
Water consumption | 5T/day | pallet quantity | 1500pcs |
4.Main Technical Parameter of baking-free brick machine:
Forming pieces | 400*200*200 4pcs/mould hollow brick |
240*115*90 12pcs/mould cellular brick | |
240*115*53 26pcs/mould standard brick | |
Total Weight | 6T |
Forming Cycle | 20-25s |
Size of host Machine | 3700*2100*2700mm |
Power of Host Machine | 20.5kw |
Exciting Force | 60kn |
Vibrating Frequency | 3000-4500r.pm |
Size of Carriage Plate | 900*550*30mm |
Any change of the technical data shall not be advised additionally.
5.Brick Samples of the baking-free brick machine:
We can also produce the size according to your requirements, the followed samples’ picture are some of our products for your reference.
6.Raw Materials of baking-free brick machine:
Wide range of raw materials could be adopted such as fly ash, coal residue, coal wastes, chemical residue,
sand, stone, concent, cement, construction wastes and so on.
The followed pictures ONLY for your reference.
7.our factory
8. Baking-free brick machine ready to go overseas:
9.Our service:
Dong fang Delivery time: within 20 days after received your 30% TT down payment.
Payment: TT or LC
Warranty: One Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team with 10 years experience. We devote to all-round service of all the products from shipment to maintenance.
Our professional service includes: Free training, Guidance Installation and Debugging.
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
Please contact me to get more information:
Skype: verading6
Mobile: 86-13017669373
