Brick machine burn-free brick Machine steady work performance

Specifications

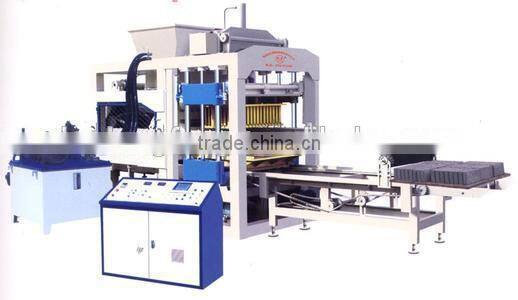

Brick machine
1. burn-free brick machine
2. steady work performance
3. a lot of models
4.certification:ISO9001,BV



1.Introduction of Brick machine:





Brick machine can use fly ash, river sand, mountain sand, ore powder, slag, building rubbish and other industrial waste residue make non-burned brick, steaming brick, cement brick and refractory bricks.











2.Advantage of  Brick machine:





Our machine have passed the ISO 9001:2000 certificate.



 Low investetment,



 Low failure rate of the product.



 It is a new type of machine which has the characteristics  of energy conservation and environmental protection.





3.Main Features of baking-free brick machine:











1.    Baking-free brick machine:



 A.Visualization screen with easy operation;







    B. Is able to set up, update and amend the production perimeters, to maximize the production output;







    C. Dynamic display of the systems status, automatic trouble shooting and warning notice;







    D. Has automatic-locking function, avoiding mechanical accidents caused by operational mistakes;







    E. Is able to troubleshoot the machinery via tele-service







2. Baking-free brick machine  high-dynamic proportional and directional valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the hydraulic cylinder when working; uses integrated high-pressure and soft oil pipes, with easy installation;







3. Baking-free brick machine Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well;







4. Baking-free brick machine Integrated structure of vibrating and moulding platforms, which reduces the weight of the machine, and improves the vibrating efficiency;







5. Baking-free brick machine Uses double-line aero vibration-proof system, which reduces the vibrating force on the mechanical parts, improves the using lifetime of the machine, and reduces the noise;







6. High-precision guide bearings are used to assure the precise movement between the tamper head and the mould.







4.Technical Parameter of Brick machine:



Host Size	6600*2100*2670mm
Forming area	800*500 mm
Forming a high degree	30-200
Molding cycle	15 s
Pallet size	850*680*25 mm
Host weight	12.5T
Total power	32KW



Any change of the technical data shall not be advised additionally.

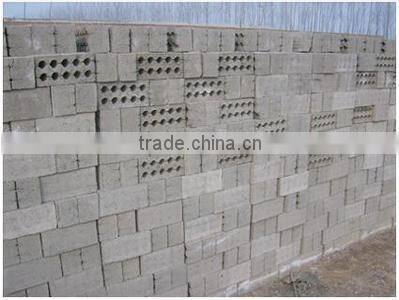

5.Brick Samples of the brick machine:



We can also produce the size according to your requirements, the followed samples’ picture are some of our products for your reference.



Brick machine is multi-purpose, by changing brick mould, brick shaping machine can produce different specifications of cement products, such as hollow bricks, porous bricks, standard bricks, insulated bricks ,sprig-grass bricks and pavement bricks.



we have export brick shaping machine to many countries,and our brick shaping  machine quality and service have be confirmed by more and more clients.







7.Raw Materials :



The raw materials can be sand, stone powder, fly ash, cement, slag, etc., the followed picture is some of the stone powder for your reference.

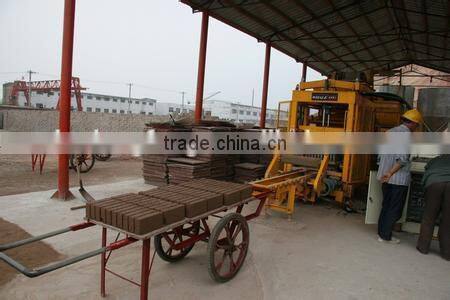

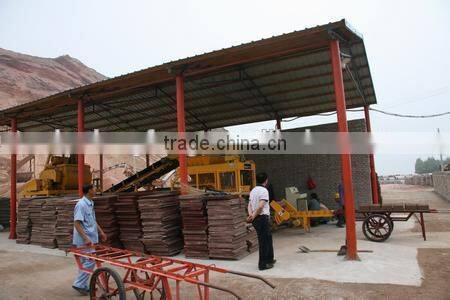

 8.Our factory























 10.Our service:

Dong fang Delivery time: within 20 days after received your 30% TT down payment.

Payment: TT or LC

Warranty: One Year (Calculated from the goods arrived the destination port.)  If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).



We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team with 10 years experience. We devote to all-round service of all the products from shipment to maintenance.
Our professional service includes: Free training, Guidance Installation and Debugging.



 If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
