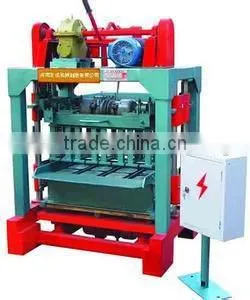

Brick machine burn-free brick making machine with good performance

Specifications

Brick machine burn-free brick making machne
1. good performance
2. high efficiency
3. low energy consumption
4.ISO9001,CE



1. Introduction of the brick machine burn-free brick making machine:



QTJ4-35 mechanical stripping brick block machine is designed by our factory according to China's small and medium sized hollow block machine’s design specification, strong stability, resistance to wear.



Install a travel switch, greatly improving the product quality, with the characteristics of easy operation, high pressure, good performance, and it is equipped with electromagnetic brake motor effectively eliminate aftershocks, greatly improving the production efficiency, both save work and save electricity, small investment, quick effect, so it is small and medium-sized investors preferred ideal models.









2. Features of the brick machine burn-free brick making machine:



1, QTJ4-35 baking-free mechanical stripping brick block machine body are all made of high strength steel and special welding technology manufacturing, achieve to situation of the welding cracking not easily open, extremely strong and durable;



2, pressure head downward adopts worm gear speed reducer drive technology to achieve smooth downward; Head down adopts the four gear rack occlusal technology to molding brick height unification, edges tidy and beautiful, and not easy to damage the mold box. Pressure head with two adjustable vibrator to offer the required vibration force for producing different bricks.



3, the feeder box adopts double rack propulsion technology, marching with closed the container door to achieve the whole machinery complete, simple structure, be clear at a glance, stability production, easy to maintenance.



4, the up and down of the mould box adopts lifting the arms chain bar pusher technology to achieve balance in sync, marching slide smoothly, don't damage the sliding sleeve and sliding axis.



5, vibration platform adopts the washboard type cast steel technology to encrypt the amplitude, the average distribution of vibration force, fully make force converge in vibration plat form, increase the density of the bricks, high strength. At the same time, it reduced the dispersion force destructive to the body.



6, the points' teeth and the rotation axis of the feeder box with 360 degree rotation technique to force the feeding, the effect is fast feeding, and very uniform.



7, electric control cabinet using automatic and manual two panels for a cabinet in production technology, to achieve automatic panels under the condition of sudden fault, immediately knob to manual panels, the production can be continued to carried out. The purpose is non-stop after starting up to guarantee the normalization of production, in order to improve work efficiency.



8, the storage bin adopts slidable before and after technology to facilitate cleaning feeder box.



9, both frame and the mould adopt carbon dioxide protection welding technology to achieve strong firm, not fried, not crack, not deformation, greatly extend the service life.





3. Special design of the brick machine burn-free brick making machine:





1, all the body made of strong square steel welding, extremely strong resistance to vibration stability performance is very good.



2, the mould box adopts double column sliding, with compact and stable synchronization up and down, and block forming rate is greatly increased.



3, pressure head can slide displacement, it is convenient for molding box to feeding, greatly improve work efficiency.



4, the mould box installation of limited position switch, is expected to avoid pressure head damaged machine in action.



5, when vibration used up, before and after in synchronization vibration, the mould box walls get the uniform stress, achieve to the best molding effect, ensure the bricks high strength compactness, clean edges and corners, pallet after forming.



4. Technical Parameter of the brick machine burn-free brick making machine:





Overall size			10000x3600x2750mm
Carriage size			880x450x25mm
Cycle			35 seconds
Electrical source			380v/50 Hz
Forming Number			8 pcs/mold 240*115*53(min)
Power Rating			4.8 kW
Weight			0.7t
Capacity			300-3000pcs/h
Cutting specifications	Forming number	Forming cycle		Capacity(8 hour)
390*190*190	4 pieces	35-40s		2800-3000pcs
390*240*190	3 pieces	35-40s		2200-2500pcs
240*115*90	9 pieces	35-40s		6000-6500pcs
240*115*53	24 pieces	35-40s		20000pcs



Any change of the technical data shall not be advised additionally.





5. Brick Samples of the brick machine burn-free brick making machine:





We can also produce the size according to your requirements, the followed samples’ picture are some of our products for your reference.





6. Raw Materials of  the brick machine burn-free brick making machine:





The raw materials can be sand, stone powder, fly ash, cement, slag, etc., the followed picture is some of the stone powder for your reference.







7.Our factory:





















8.Our service:







Dong fang Delivery time: within 20 days after received your 30% TT down payment.



Payment: TT or LC



Warranty: One Year (Calculated from the goods arrived the destination port.)  If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).







We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team with 10 years experience. We devote to all-round service of all the products from shipment to maintenance.
Our professional service includes: Free training, Guidance Installation and Debugging.







 If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
