Brick machine Burn-free brick machine MZJ600

Specifications

Brick machine Burn-free brick machine MZJ600
1. High strength
2. No need pallets
3.High pressure
4.ISO9001,BV,CE





1.Introduction of brick machine, burn-free Brick Machine



The brick machine can take various kinds of industrial dross ,coal refuse such as fly ash ,slag ,river sand ,sand ash etc as materials ,is widely used for making bricks.needing baking-free ,can be taken care naturally or in the general temperature degree ,reaching the standard of the national building material industry .Therefore ,it is the ideal equipment of being rich .Industrial dross can be taken properly and environment be protected from polluting ,soil can be saved largely and employment also be resolved perfectly and naturally .







1.360Ton moulding pressure, so the brick has a strong strength







2. A man can stand on the brick which was made just now







3. No pallet. It can be stacked directly 10-15 layers





2.Main technology parameters of brick machine,burn-free brick making machine:



Production capacity bricks (pcs/h)	5000
Most tremendous pressure (t)	600(Mechanical vibration and double-sided pressure )
Each time formation (pcs/once)	3
Make bricks specification (mm)	240*115*53 240*115*90 240*190*90 240*240*90
Motor of host machine (kw)	37
Weight (t)	14.3
Dimension (mm)	2560*2450*3000
Piece of bricks per mould	3 pcs/mould
Bricks type	standard brick hollow brick paving brick
Power supply	Three-phase AC380V 50Hz
Worker needs	5-7



  3.The advantages of brick machine,burn-free brick making machine:



1.High pressure: MZJ600-3 brick making machine with pressure for 600 Ton

2. Low investment: our brick making machine is no need fire no need autoclave no need pallets and less labor cost.

3.Low failure rate: the way to make brick is: shacking together with mechanical pressure. so that the bricks are high density, intensity height are heated by electricity, with non sticky characteristics, can reducing the failure rate. In addition, the brick was made just now can carry an adult male, and can be stacked directly 10-15 layers.

4.Superior quality material: Machine body material is used 40#steel with 5 mm thickness;  the material of mould is 40 chromium; Using antifriction bearing device ,effectively reduce friction and also with low noise.

5. Certificates: Our machine have passed the ISO 9001:2000 certificate, and national patent. We are the only one who can producing the high pressure brick making machine.

6. Widespread raw material: slag, coal slag, construction waste, fly ash ,cement sand etc. We can making the raw materials formula for you, so that it is workable and also cost , saving.

7. Large capacity: MZJ 600-3 with capacity is 5000 pcs/hr.

8. After sale service: our warranty period of main component is 1 year.

 Compared with other baking-free bricks machine in the market, this brick machine has following advantages:

1.after bricks being formed, no need pallet, can be stacked directly 10-15 layers, save cost;



2.national patent, reliable manufacturer, 30 years of production experience;



3.high capacity with good quality and strength, 5000 pcs/h;



4.tremendous brick forming pressure: 600ton;



5.air exhaust fully,  no gas entrapment, ensure uniform density and high quality of bricks;



6.very little noise.





4. The main working accessories of brick machine burn-free brick making machine:



1. Machine body material: is used 40#steel with 5 mm thickness;



2. The material of mould is 40 chromium;



3. Using antifriction bearing device, effectively reduce friction and also with low noise.



5. The production line of brick machine burn-free brick making machine:



Raw meterial  → Two bin feeder ( Automatic proportioning of raw materials )   → Edge runnner ( Biaxial  Wheel grinding mixing  )  → Feeding machine ( Automatic quantitative feeding )   → Belt conveyor ( Material Transfer )  → The main part of machine ( MZJ 600-3 )  → The finished brick



6. The brick samples producted by brick machine burn-free brick making machine:













Brick machine is multi-purpose, by changing brick mould, brick shaping machine can produce different specifications of cement products, such as hollow bricks, porous bricks, standard bricks, insulated bricks ,sprig-grass bricks and pavement bricks.







7.Raw Materials of the burn-free brick machine :











The raw materials can be sand, stone powder, fly ash, cement, slag, etc., the followed picture is some of the stone powder for your reference.

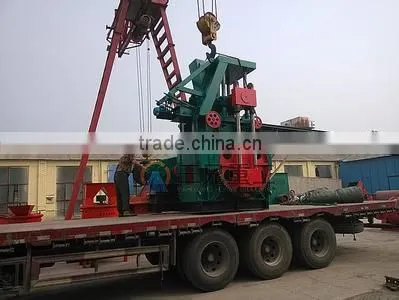

 8.Brick machine ready to go worldwide:

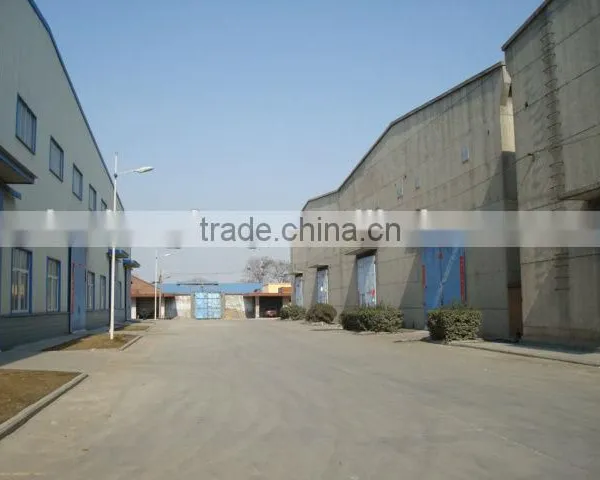

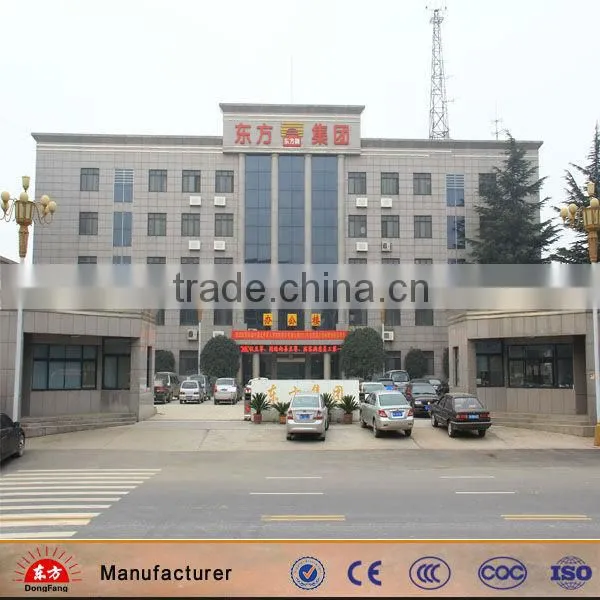

 9.Our factory





































10.Our service:















Dong fang Delivery time: within 20 days after received your 30% TT down payment.







Payment: TT or LC







Warranty: One Year (Calculated from the goods arrived the destination port.)  If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).















We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team with 10 years experience. We devote to all-round service of all the products from shipment to maintenance.
Our professional service includes: Free training, Guidance Installation and Debugging.















 If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
