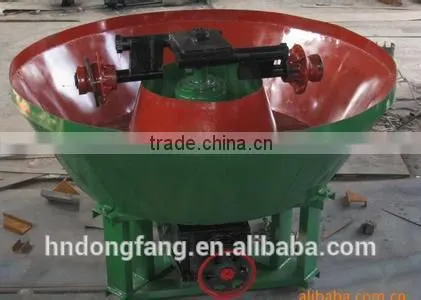

New type and durable Gold wet pan mill machine
Description:
Gold wet pan mill machine is mainly used to separate gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and other minerals .
Features :
With less investment, fast efficiency, small space occupation, saving power, sturdiness and durability, easy maintenance and high return on investment. It is the most suitable production for alternative ball mill, is ideal for small and medium enterprises dressing.
Technical Parameters:
Model |
Specification |
Input size(mm) |
Rotate Speed (r/min) |
Powder(kw) |
Weight(t) |
1600A |
1600×400×200×500±20mm |
30mm |
20-22 |
25KW |
14.5 |
1500A |
1500×350×200×460±20mm |
20-22 |
22KW |
13.5 |
|
1500B |
1500×350×150×460±20mm |
20-22 |
22KW |
12.3 |
|
1500C |
1500×300×150×420±20mm |
20-22 |
22KW |
11.3 |
|
1400A |
1400×250×150×350±20mm |
16-18 |
18.5kw |
8.5 |
|
1400B |
1400×250×150×350±20mm |
21-23 |
18.5kw |
8.5 |
|
1350A |
1350×250×150×350±20mm |
16-18 |
18.5kw |
8 |
|
1350B |
1350×250×150×350±20mm |
21-23 |
18.5kw |
8 |
|
1300A |
1300×250×150×350±20mm |
16-18 |
15kw |
7.5 |
|
1300B |
1300×250×150×350±20mm |
21-23 |
15kw |
7.5 |
|
1200A |
1200×200×80×250±20mm |
17-19 |
7.5kw |
5.5 |
|
1200B |
1200×200×80×250±20mm |
23-25 |
7.5kw |
5.5 |
|
1100A |
1100×200×80×250±20mm |
17-19 |
7.5kw |
5 |
|
1100B |
1100×200×80×250±20mm |
23-25 |
7.5kw |
5 |
|
1000 |
1000×200×80×250±20mm |
13-15 |
5.5kw |
4.5 |
Application :
Gold wet pan mill machine is mainly though raw material repeated mixing, rolling, crushing and rolling to reach equilibrium moisture, uniform ratio, low air content, so as to improve the molding rate and molding quality. The final grinded products are with high density, good strength, high percentage of non porosity. This machine mainly used for choosing gold, silver, lead, zinc, iron, molybdenum, copper, antimony mine, The ores that ball mill can be choosen, the gold grinding machine can be used.
Operation :
1.When inputting gold sand into the rolling drum, the rollers compress the sand over and over into tiny particles.
2.Please put in 5 kg mercury at first, the mercury can absorb the gold or other metals.
3.At last, use a high-density red cloth to wrap mercury up.
4.Then squeeze it, the mercury will be pressed out and pure gold stayed.
5.As to the large capacity, we can use mercury shaking machine and mercury steamer to replace the manual work.
Presention:
Company Introduction:
Henan Dongfang Group is a manufacture factory ,where we produce civilian industry products .The factory has very rich experience as it has a history of more than ten years. The factory covers more than 60,000 square meters,180 sets of gold processing equipment,more than 1,000 employees,and our factory .
Welcome to visit our factory and patronize for our common development creating brilliancy!
