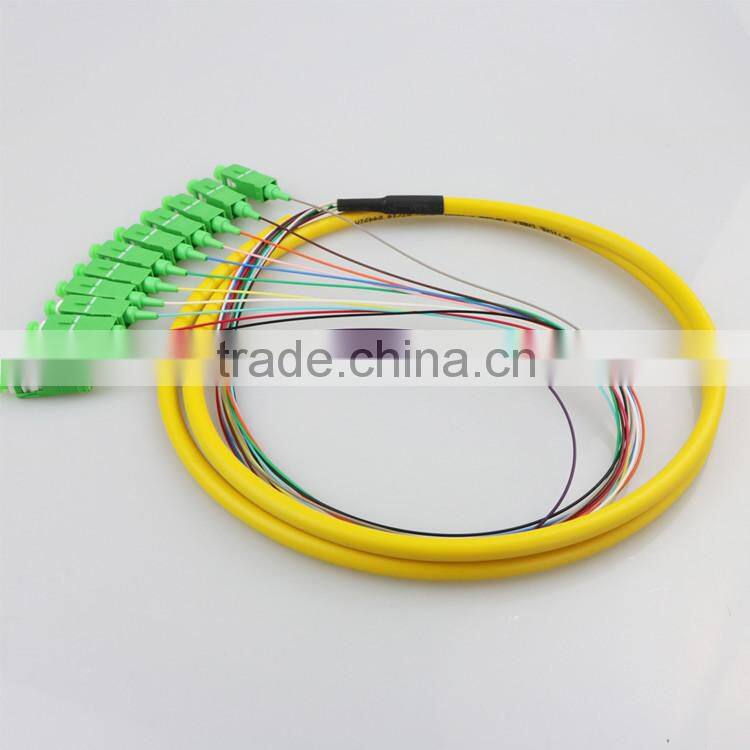

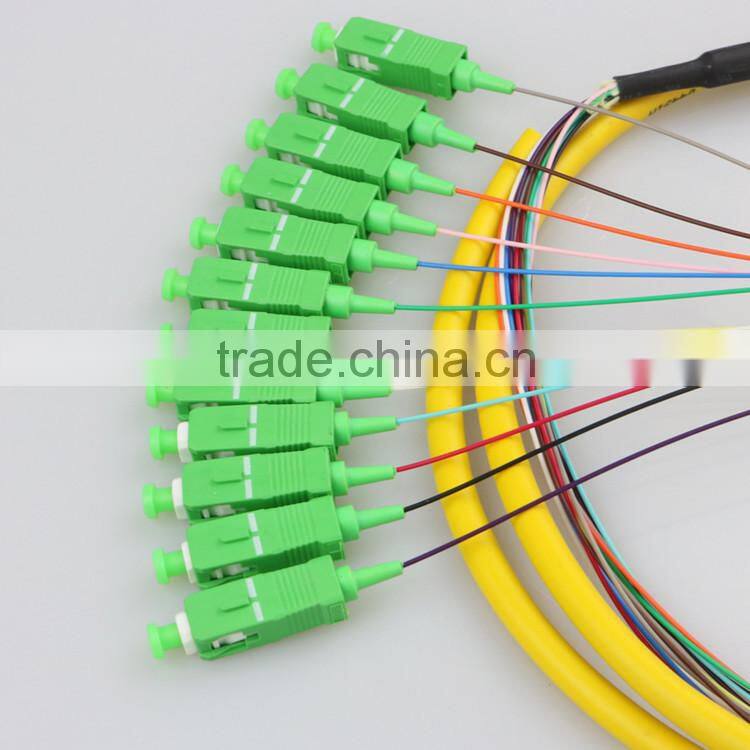

catv FTTH High quality 12 core SC APC fiber bundleSmall Type Optical Fiber Splitter for SC/APC
| Keyfeatures |
Environmentally Stable
Loss Polarization dependence Loss
Good Repetition
Good Exchange
High thermal stability
Low Insertion Loss
High Return Loss
| Specifications |
Configuration |
N X 4 N=1,2,4 |
N X8 N=1,2,8 |
N X16 N=1,2,16 |
N X32 N=1,2,32 |
||
Grade |
Grade" A" |
|||||
Operating Wavelength(nm) |
1310/1490/1550 |
|||||
Bandwidth |
±20nm |
|||||
Excess Loss(dB) |
0.25 |
0.5 |
0.6 |
0.08 |
||
Typical Excess Loss(dB) |
6.3 |
9.5 |
12.7 |
15.9 |
||
Typ.Insertion Loss(dB) |
6.8 |
10 |
13.6 |
17 |
||
PDL(dB) |
≤0.2 |
≤0.3 |
≤0.4 |
≤0.5 |
||
Uniformitity(dB) |
0.8 |
1.2 |
1.8 |
2.4 |
||
Thermal Stability(dB) |
≤0.2 |
≤0.3 |
≤0.4 |
≤0.5 |
||
Directivity(dB) |
≥55(≥602×2) |
|||||
Operating Temperrature(℃) |
—40℃~+85℃ |
|||||
Package Type |
|
|||||
Output Length |
1meter, others on request |
|||||
Output Type |
FC/APC,others on request |
|||||
Package Dimensions(mm) |
10x20x90 |
10x80x100 |
15x92x120 |
18x115x140 |
||
| Applications |
LAN
Fiber Optic Sensor
TEST Instrument
Optical Fiber Communication room
Cross Connecting Cabinet
CATV
Net EPON
Network Cabinets
FTTH
PON
Packaging Details:15pieces/carton, Optical Fiber Product can be OEM/ODM
We can design some special packaging according to customer's requirement.
Delivery Details:3~5 days after receipt of deposit for little orders.
Before Sale Service:professional offer detailedproducts test report related specifications
Contract Manufacturing: OEM Service Offered design service offered buyer Label Offered
Shanghai Yogel Communication Equipment Co.,Ltd. welcome to visit our factory!
The core of Yogel is honesty and efficiency.pls feel free to contact us.
Your inquiry is expected! Warmly welcom you to inquiry us for this product.
