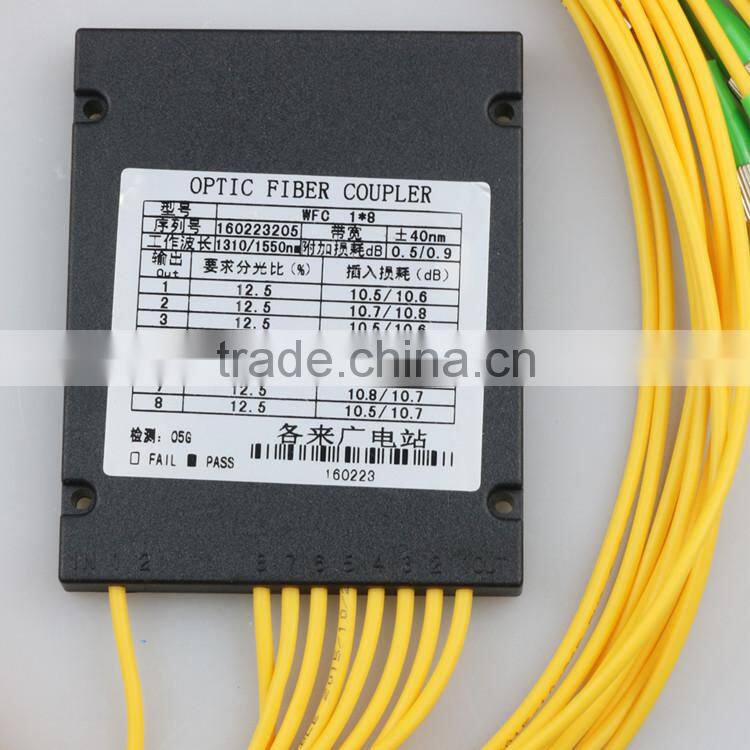

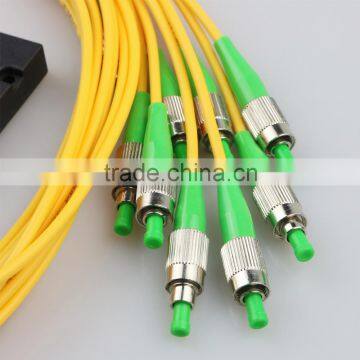

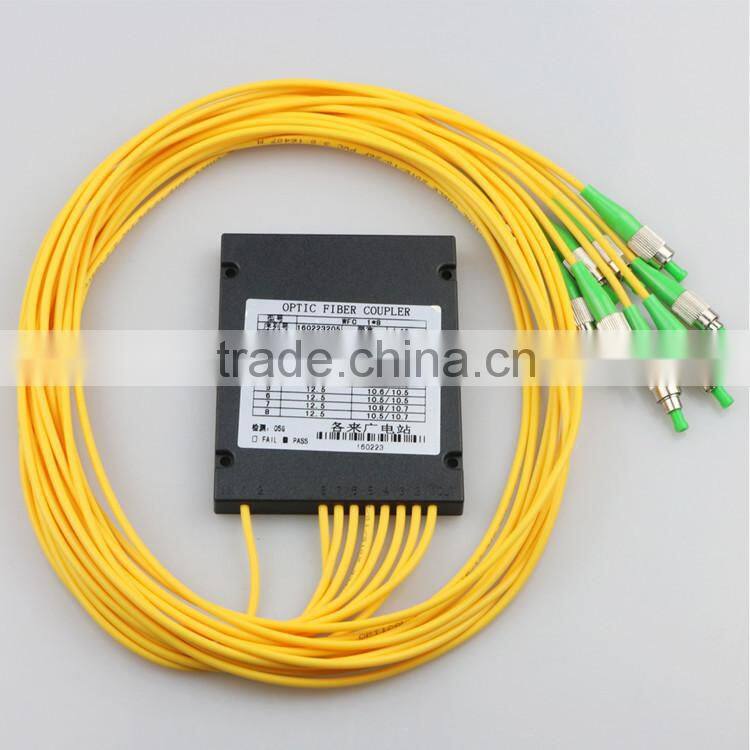

Out of 1 metersFTTH 1 * 8 FC /APC connector FBT fiber optic coupler

Name: Out of 1 metersFTTH 1 * 8 FC /APC connector FBT fiber optic coupler
Brand: yogel
Price: USD $1 - 30 / Piece

FOB Price

USD $1 - $30 / Piece

1 Piece(Min.Order)

Product Details

Place of Origin:

Shanghai, China

Brand Name:

yogel

Model Number:

1*8 FC APC

NAME: FTTH 1 * 8 FC /APC connector FBT fiber optic coupler

◊ Low insertion loss

◊ Low polarization dependent loss

◊ High return loss

◊ Good uniformity

◊ Compact mechanism

◊ Wide working bandwidth

Applications

♣ FTTH
♣ passive optical network
♣ CATV system local area network
♣ Optical fiber test equipment

	Model	1X2	1X4	1X8	1X16	1X32	1X64
Operating Wavelength			1260--1650
	(Typical)	3.6	7	10	13.3	16.3	20
insertion Loss	(Max)	3.8/	7.2/	10.5/	13.5/	16.5/	20.5/
(dB)		4	7.4	10.7	13.7	16.9	21
	(Typical)	0.3	0.4	0.5	0.6	0.8	1.2
Loss Uniformity	(Max)	0.4	0.6	0.8	1.2	1.5	2.5
(return Loss)		55/50	55/50	55/50	55/50	55/50	55/50
	(Typical)	0.1	0.1	0.15	0.15	0.15	0.2
PDL(dB)	(Max)	0.2	0.2	0.3	0.3	0.3	0.4
(Directivity)	(Min)	55	55	55	55	55	55
(Fiber Length)m		1.2(+0.1) Customer specified 1.2(+0.1) or specified by customers
(Fiber Type)		kangningSMF-28e Customer specified corning SMF-28e or specified by customers
(WDL)	(Typical)	0.2	0.2	0.2	0.3	0.3	0.3
	(Max)	0.3	0.3	0.3	0.5	0.5	0.5
	(Typical)	0.2	0.2	0.2	0.3	0.3	0.3
Temperature Stability	(Max)	0.4	0.4	0.4	0.5	0.5	0.5
(Operating Temperature)		(-40℃~+85℃)
(Storage Temperature)		(-40℃~+85℃)

Recommendation

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

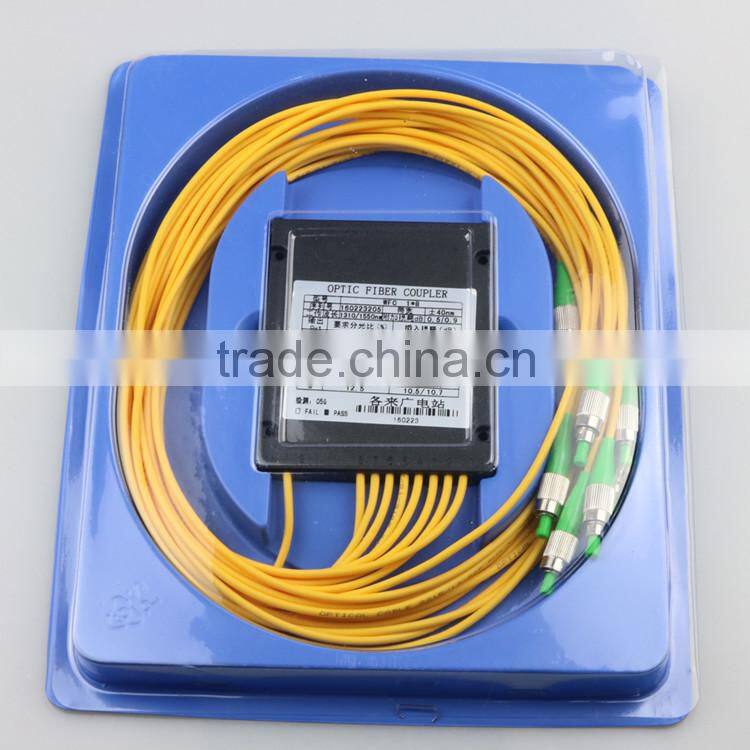

Packaging and logistics

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

Company strength

Q:	Are you manufacturer?
A:	Yes!
Q:	How about the quality?
A:	Our company's products are through the quality of the test, the indicators have reached the international standard!
Q:	Which currencies are supported?
A:	Dollar, euro, RMB
Q:	What are the after-sales service?
A:	In the face of service and quality problems, can be settled through friendly consultations, as far as possible in accordance with customer needs, meet customer needs, meet product quality problems, we can free replacement of new products!

Shanghai Yogel Communication Equipment Co., Ltd.: Contact nameRoger Dai; Phone86-021-64905702; AddressNo. 1128, Denghui Road
