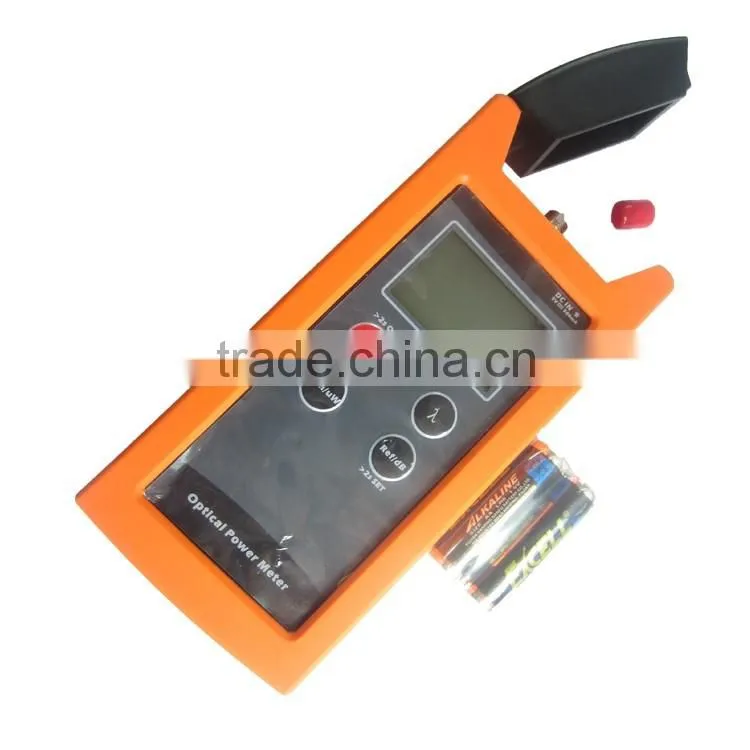

Help CenterFTTH Fiber Optic 2015 Digital Handheld Optical Power Meter With 2 AA Battery
Related Products
-
Made in China Pen-type Visual Fault Locator for Optical Fiber Tracing 10/20km Communication EquipmentUS$ 0.9 - 50MOQ: 1 Piece -
FTTH Electronic Visual Fualt Locator 10km 20km Optical Fiber Communication Underground Test EquipmentUS$ 0.9 - 50MOQ: 1 Piece
-
Low Price Low Losscave Detector Mine Loca FTTH Visual Fault Locator for Optical Fiber Tracing 10km Optical Fiber Fault DetectorUS$ 0.9 - 50MOQ: 1 Piece
-
Widly Used Optical Fiber Laser Visual Fault LocatorUS$ 13.8 - 60MOQ: 1 Piece
-
FTTH Optical Power Meter of China Supplier on Line ShoppingUS$ 39 - 150MOQ: 1 Piece
Optic Equipment High-Precision Mechanical Handheld Optical Power Meter
Description:

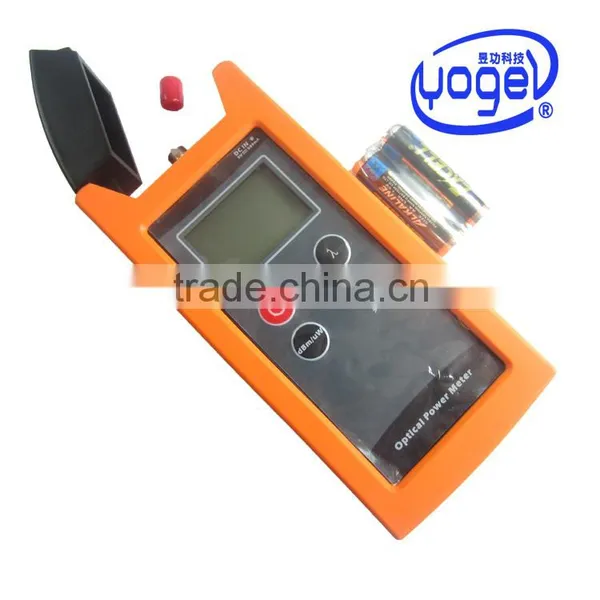

YG503 Handheld Optical Power Meter is a self-developed test instrument. For the installation, operation and maintenance of fiber-optic network is designed as a precise, durable, convenient, portable test instrument. Smart appearance with the backlight, auto-shutdown features, the wide range of optical power testing, test the accuracy of precision as well as a common interface design.
Features:
High sensitivity, large dynamic range
Special universal connector interface FC/SC/ST
Quick starting, without warm-up and reducing testing time
Low-voltage display function
Optional auto-shutdown feature
Automatic calibration function
The relative ratio test
Large LCD display and backlight
Application:
Maintenance Telecom
Maintenance CATV
Test Lab of Fiber Optic
Optical fiber sensors
Specifications
Type |
BD503A |
BD503B |
|
Wavelength(nm) |
800~1650 |
||
Detector |
InGaAs |
||
Optical Connector |
FC SC ST/ Universal 2.5mm adaptor (LC,MU can be optional ) |
||
Measurement Range(dBm) |
-70~+10 |
-50~+26 |
|
Uncertainty |
±5% |
||
ibrated Wavelength(nm) |
850,1300,1310,1490,1550,1625 |
||
Resolution(dB) |
0.01 |
||
Power Supply |
3pcs AAA 1.5V batteries |
||
working time(h) |
120 |
||
Operating Temperatrue(℃) |
-10~+50 |
||
Storage Temperatrue(℃) |
-20~+70 |
||
Automatic shutdown(min) |
10 |
||
Dimension(mm) |
125*65*29mm |
||
Weight(g) |
160g |
||
Packing:
1/carton box,or according to customer request
Shipping:
in7 days for power meter
