Price User-friendly Pen Type Optical Fiber Laser Visual Fault Locator
Description:

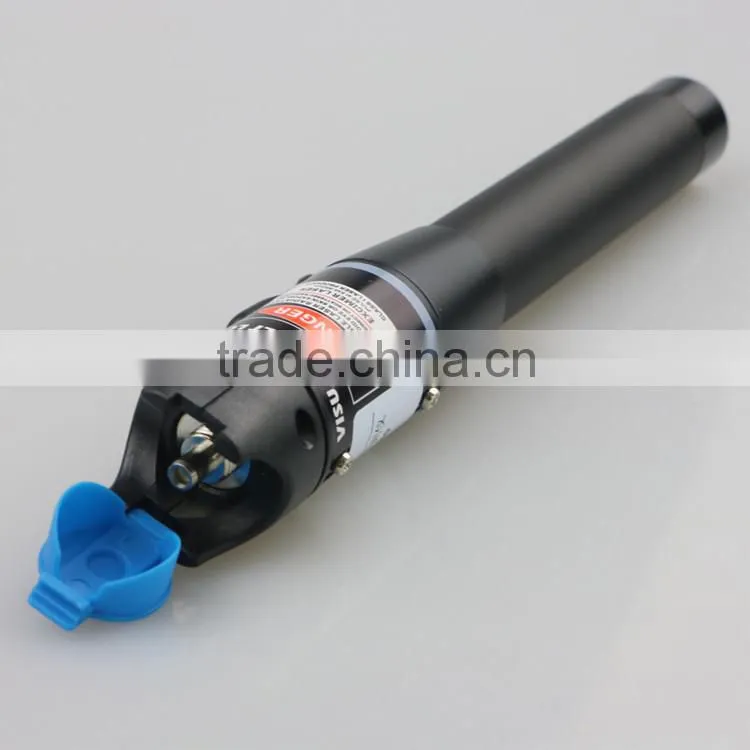

The Pen-type Visual Fault Locator is visible red laser source for finding breaks and tight bends in optical fibers.The VFL generates red laser and the visible red laser that escaping from optical fibers makes testing and finding breaks in LANs, verifying continuity, checking the validity of patch cables or looking for cracked fiber in splice cases, bad connectors, tight bends in fiber cable.
Key Features:
Easy to use
Fast response, no warm up
continuous and pulsed-light
20 MW for Max output power
Standard AAA alkaline batteries
Rugged and weatherproof design
2.5mm universal connector,1.25mm can be optional
Specifications :
Model |
BD |
Emitter Type |
FP-LD |
Wavelength (±20nm) |
650 |
Output Power (mw) |
1,3,5,10,15,20 |
asurement Range (Km) |
1,3,5,10,15 |
Modulation Frequencies(Hz) |
CW 2Hz |
Connector Type |
2.5mm Universal connector (LC,MU,E2000 can be optional) |
Power Supply |
A A A 1.5v (2pcs batteries) |
Battery Life(℃) |
≥50hrs |
Operating Temp(℃) |
-20~+ 60 |
Storage Temp. |
-40 ~+60 |
Dimension(mm) |
175*25 |
Weight(g) |
80 |
Operation:
---Put AA battery into the locator,and then press BLACK button on the bottom of the tester to switch on it.The locator will Switch
between the continuous laser and 2Hz.If the indicator is on;the laser outputs xontinuous 650nm red laser.
---Press BLACK button again,the laser and indicator are blinking at the same time;the frequency is about 2Hz,which is convenient to check line faults.And the press"PWR"again to switch to continuous laser mode.

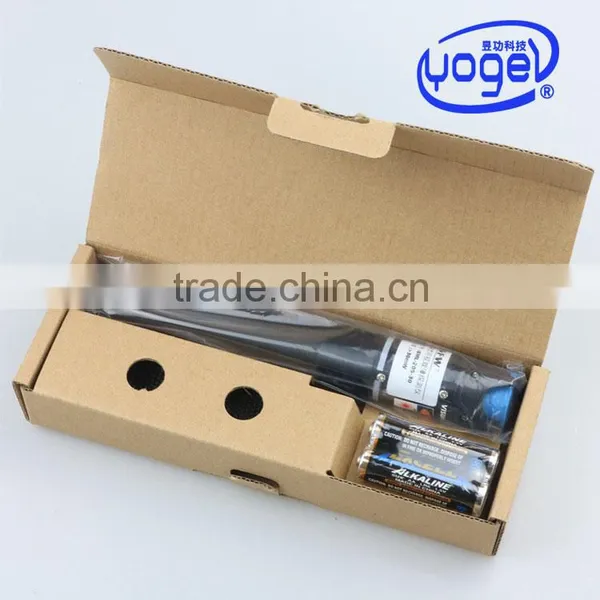

Packing:
1/carton box,or according to customer request
Shipping:
in7 days for

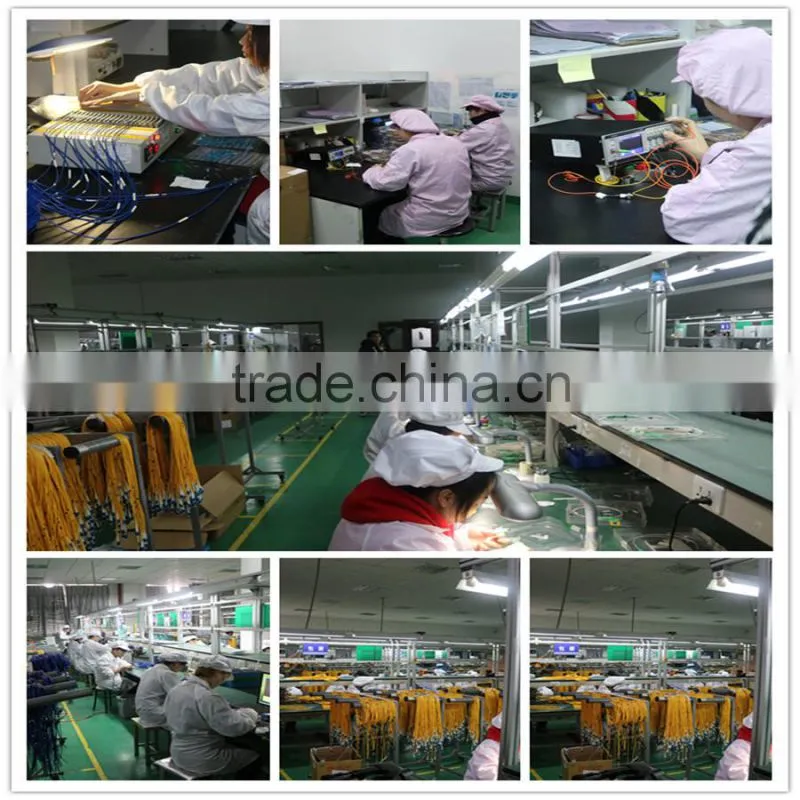

Welcome to our factory!
The main idea of Yogel company is honesty and efficiency.
Our company has been audited and approved ISO9001,CE.
Shanghai Yogel Communication Equipment Co., Ltd. is a professional company engaged in optical fiber passive devices, fusion splicer&accessories and optical test instruments.
We provide sales and services of patchcords, fast connector, fiber coupler, optical adapters and fiber splice closure.
Based on competitive prices, high-quality products and innovative technology, we stand apart from the rest in domestic FTTH, the DTV head-ends and broadcast industry.
For more information please visit Shanghai Yogel Communication Equipment Co., Ltd.
We offer the sincere dedicated service!
Before Sale |
detailed products test report related specifications |
During Cooperation |
OEM Service Offered Design Service Offered Buyer Label Offered |
After Sale |
Any problems on the product, please contact us |
If there any question, please contact us!
1. Can I get some samples ?
Yes, Sample order is available for quality check and market test .And you just to pay the cost.
2. What’s delivery time ?
It usually takes about 5-7 working days .
3. What’s your payment terms ?
We usually accept all these kinds of payment terms .Such as T/T,L/C, Western Union.Cash Etc.
4. What’s your warranty terms ?
We offer 12 months warranty time .
5. Can I mix different power in one container ?
Yes ,Different models can be mixed up in one container ,even one order .
6. How does your factory do the quality control ?
Every product will be fully assembled and carefully tested before packing and shipping.
Thank you for your kind Visiting!
