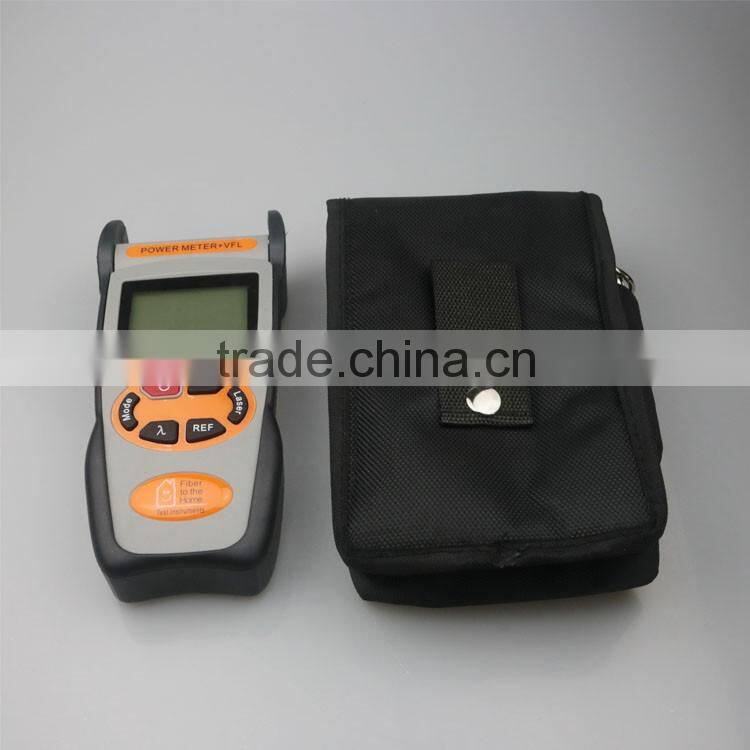

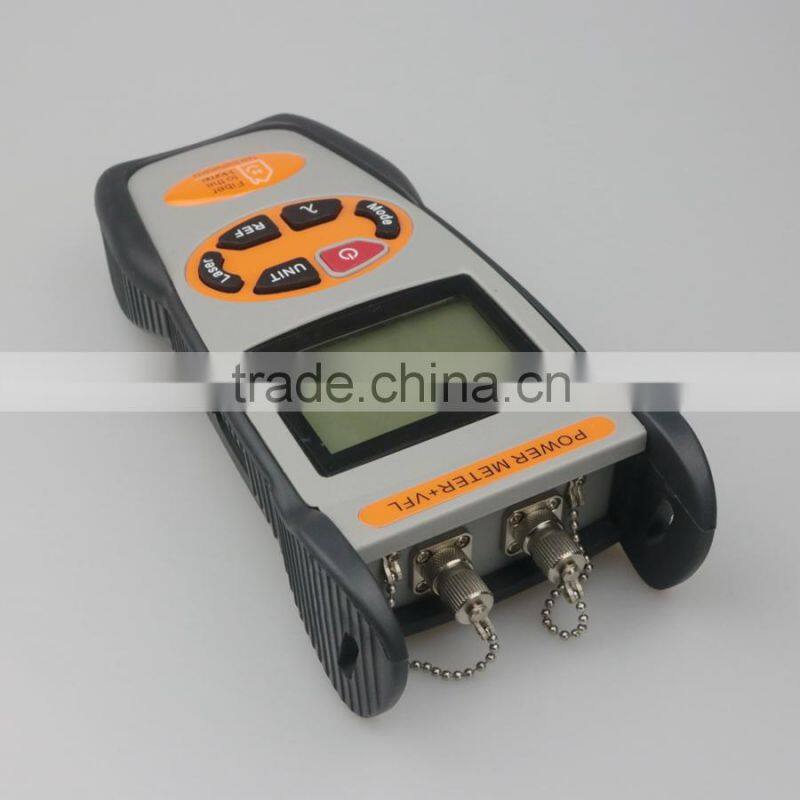

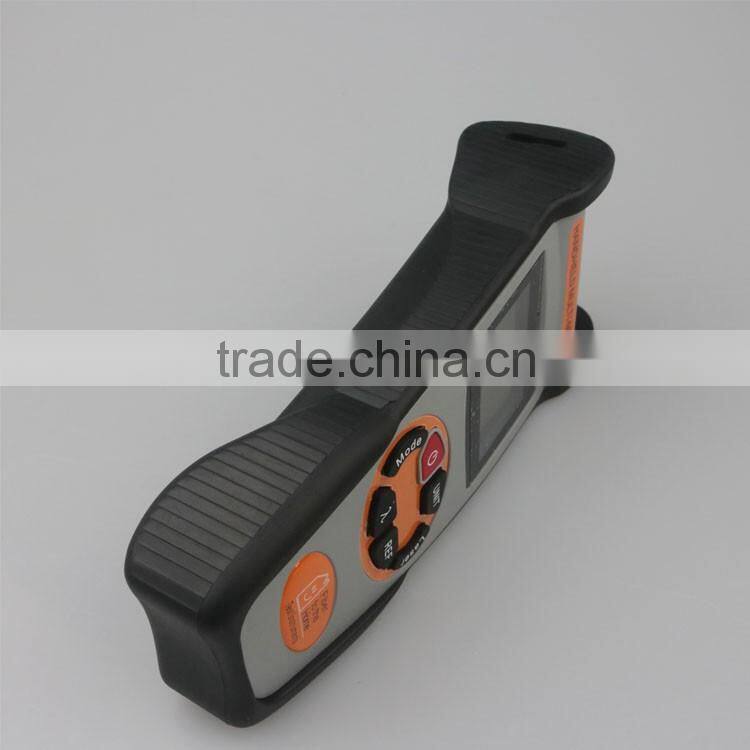

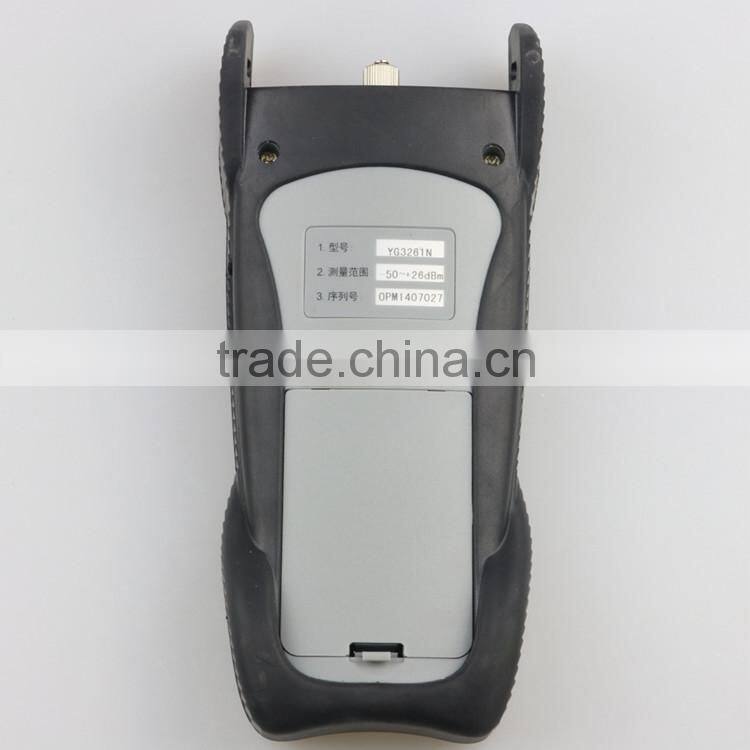

Optical Power Meter is a new generation handheld optical network tester.
It is calibrated at a large number of wavelengths to enable power measurements to be made on a wide range of Single Mode and Multimode fibre optic cable systems.
The wavelength is simply selected by wavelength button key.
By transmitting light at a known power level at one end of a fibre using a laser source, and measuring the power at the other end with the Optical Power Meter, the Attenuation (loss) of the cable can be determined.
By calibrating the source, with the meter connected directly, zeroing the meter and then inserting the cable, the cable loss can be measured directly.
The new Optical Power Meter is a tester that enables field technicians or laboratory personnel to measure power and loss in optical links.
Its InGaAs detector has exceptional accuracy, combined with an incredibly simple user interface.
Applications
1. Telecom optical installations
2. CATV optical installations
3. Optical test laboratories
4. Fibre optics installation and maintenance
5. SDH, SONET, Gigabit Ethernet, CATV, PON / FTTx, Opt LAN
6. Optical network commissioning
7. Quality assurance and acceptance testing
Features
1. Zeroing function for calibration of source and patch cords and relative loss measurement
2. Suitable for Single Mode and Multimode cables
3. Wide range of wavelength calibration points
4. Power readings in dBm or mW, or loss in dB
5. Clear LCD display with backlight
6. Robust design for field use
7. Long battery life :180h
WT-BPM-100 |
|
Measuring Range |
+8 ~ -70dBm |
Accuracy * |
± 0.2dB |
Calibrated Wavelengths |
850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm |
Resolution |
0.01dB |

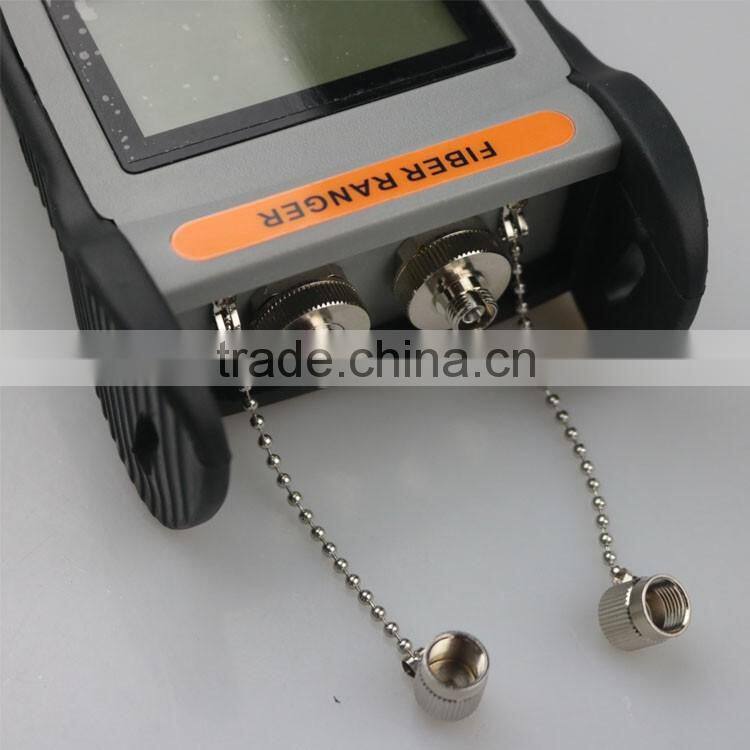

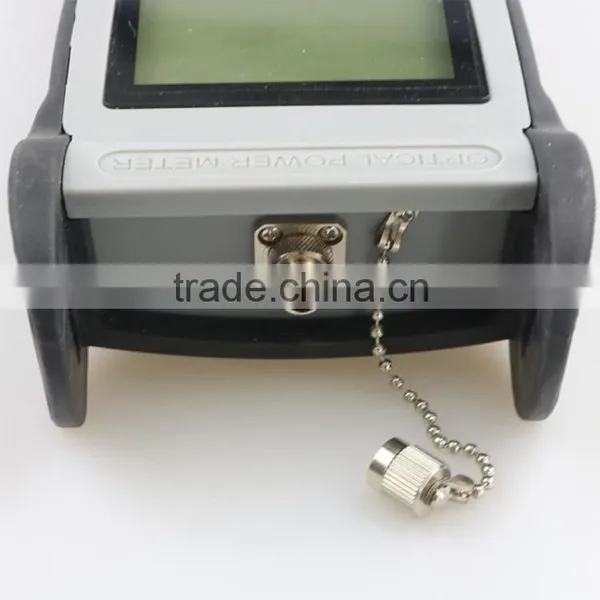

Connecting Adapter |
FC/PC & 2.5mm Universal |
Reference Value storage |
Yes |
Automatic Power Off |
No operation in 10 minutes (can be cancelled), Low battery energy |
Tone Detector ** (optional) |
+5 ~ - 40 dBm |
Battery Charge |
Yes |
Battery Life |
Above 100 hours |
Storage Temperature |
-20 -- +60 °C, 90%RH |
Operating Temperature |
-10 -- +50 °C, 90%RH |
Power Supply |
2 * AA batteries or AC/DC adapter |
Size |
160mm * 75mm * 32mm |
Weight |
About 180g |
Welcome to our factory.
The main idea of Yogel company is honesty and efficiency.
Shanghai Yogel Communication Equipment Co., Ltd. is a professional company engaged in optical fiber passive devices, fusion splicer & accessories and optical test instruments.
We provide sales and services of patch cords, fast connector, fiber coupler, optical adapters and fiber splice closure.
Based on competitive prices, high-quality products and innovative technology, we stand apart from the rest in domestic FTTH, the DTV head-ends and broadcast industry.
We attended the Peking Exhibition, hope to meet you next year.
For more information please visit Shanghai Yogel Communication Equipment Co., Ltd.
1. Can I get some samples of PON optical power meter?
Yes, Sample order is available for quality check and market test .And you just to pay the express cost.
2. What’s delivery time of optical power meter?
It usually takes about 5-7 working days .
3. What’s your payment terms ?
We usually accept all these kinds of payment terms .Such as T/T,L/C, Western Union.Cash Etc.
4. What’s your warranty terms ?
We offer 12 months warranty time .
5. Can I mix different power in one container ?
Yes ,Different models can be mixed up in one container ,even one order .
6. How does your factory do the quality control ?
Every product will be fully assembled and carefully tested before packing and shipping.
