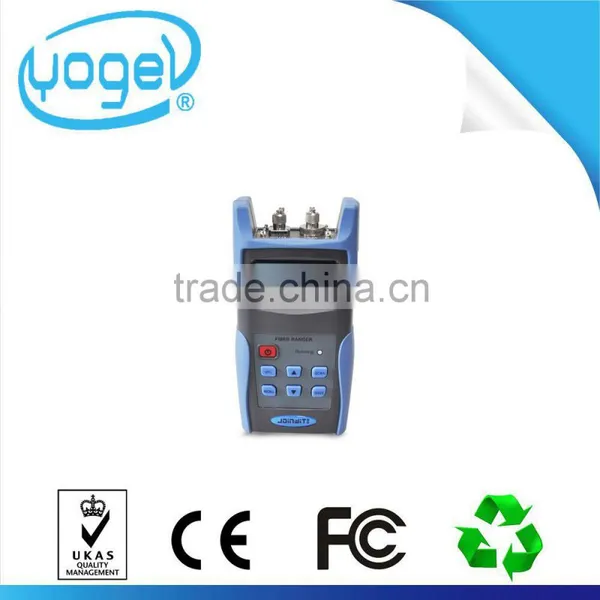

mini fiber optical power meter fiber optic cable tester optical detector
Key Features
Wave ID—Automatic wavelength identification and switching (when used with FTI3116 handheld light source)
•Frequency ID/Tone detection---Automatic frequency identification
•Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)
•Data storage function, up to 1000 test records
•USB communication port for saved testing records download
•Reference power level can be set up and stored
•User self calibration function
•Auto-off function can be activated or deactivated.
•Low battery indication
Specifications
Wavelength(nm) |
800~1700nm |
|
Detector Type |
InGaAs |
|
Detector Size |
Ø 1.0mm |
|
Measurement Range (dBm) |
-70~+10 |
-50~+26 |
Uncertainty |
±5% |
|
Calibrated Wavelength(nm) |
850,1300,1310,1490,1550,1625 |
|
Resolution(dB) |
0.01 |
|
Optical Connector |
FC(interchangeable SC,ST) / as well as 2.5mm universal |
|
Power Supply |
Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V) |
|
Battery Operating Time |
140 h with 1.5V Battery(3pcs) |
|
Operating Temperature(°C) |
-10 ~ +60 |
|
Storage Temperature(°C) |
-25 ~ +70 |
|
Relative Humidity |
0 to 95% (non-condensing) |
|
Dimension(mm) |
190X100X50 |
|
Weight(g) |
370 |
|
Packaging Details:15pieces/carton, Optical Fiber Product can be OEM/ODM
We can design some special packaging according to customer's requirement.
Delivery Details:3~5 days after receipt of deposit for little orders.
Before Sale Service:professional offer detailedproducts test report related specifications
Contract Manufacturing: OEM Service Offered design service offered buyer Label Offered
Shanghai Yogel Communication Equipment Co.,Ltd. welcome to visit our factory!
The core of Yogel is honesty and efficiency.pls feel free to contact us.
Your inquiry is expected! Warmly welcom you to inquiry us for this product.
1. Can I get some samples for optical fiber product?
Yes, Sample order is available for quality check and market test .But you have to pay the express cost.
2. What’s delivery time ?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3. What’s your payment terms ?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4. What’s your Fiber Type?
We provide G.652D Fiber , can be customized.
5. Do you have the products in stock ?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6. How does your factory do the quality control ?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping.
7.How to contact us?
If you have any questions or requirements, please send your Enquiry Details in the Below, Click "Send" Now! Or "the onlineTM".
