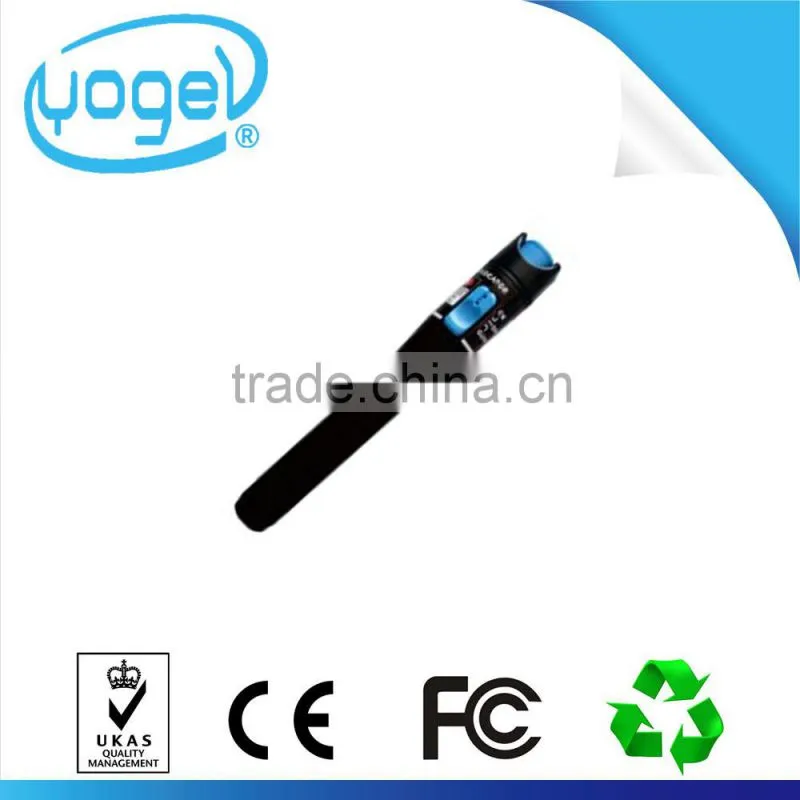

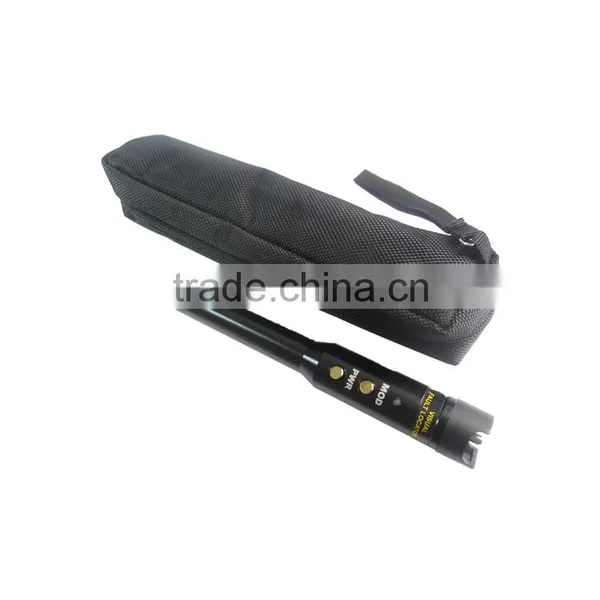

High Quality Reasonal Price Light Source Pen Type Optical Fiber Laser Visual Fault Locator for Fiber Equipment
Description:
The Pen-type Visual Fault Locator is visible red laser source for finding breaks and tight bends in optical fibers.The VFL generates red laser and the visible red laser that escaping from optical fibers makes testing and finding breaks in LANs, verifying continuity, checking the validity of patch cables or looking for cracked fiber in splice cases, bad connectors, tight bends in fiber cable.
Key Features:
Easy to use
Fast response, no warm up
continuous and pulsed-light
20 MW for Max output power
Standard AAA alkaline batteries
Rugged and weatherproof design
2.5mm universal connector,1.25mm can be optional
Specifications :
Model |
BD261A |
Emitter Type |
FP-LD |
Wavelength (±20nm) |
650 |
Output Power (mw) |
1,3,5,10,15,20 |
asurement Range (Km) |
1,3,5,10,15 |
Modulation Frequencies(Hz) |
CW 2Hz |
Connector Type |
2.5mm Universal connector (LC,MU,E2000 can be optional) |
Power Supply |
A A A 1.5v (2pcs batteries) |
Battery Life(℃) |
≥50hrs |
Operating Temp(℃) |
-20~+ 60 |
Storage Temp. |
-40 ~+60 |
Dimension(mm) |
175*25 |
Weight(g) |
80 |
Operation:
---Put AA battery into the locator,and then press BLACK button on the bottom of the tester to switch on it.The locator will Switch
between the continuous laser and 2Hz.If the indicator is on;the laser outputs xontinuous 650nm red laser.
---Press BLACK button again,the laser and indicator are blinking at the same time;the frequency is about 2Hz,which is convenient to check line faults.And the press"PWR"again to switch to continuous laser mode.
1/carton box,or according to customer request
You may Like These Ones!

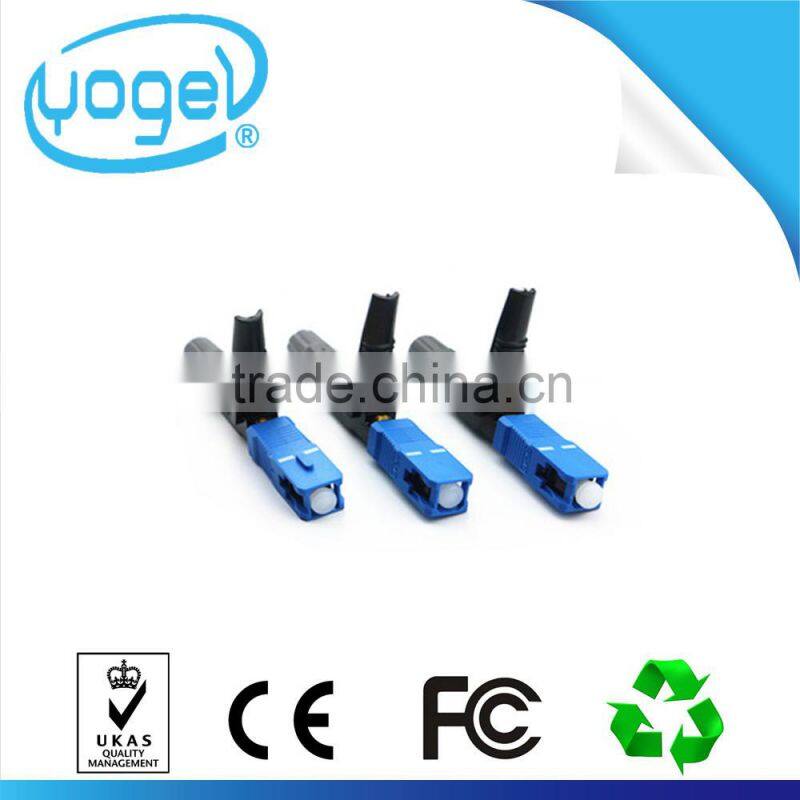

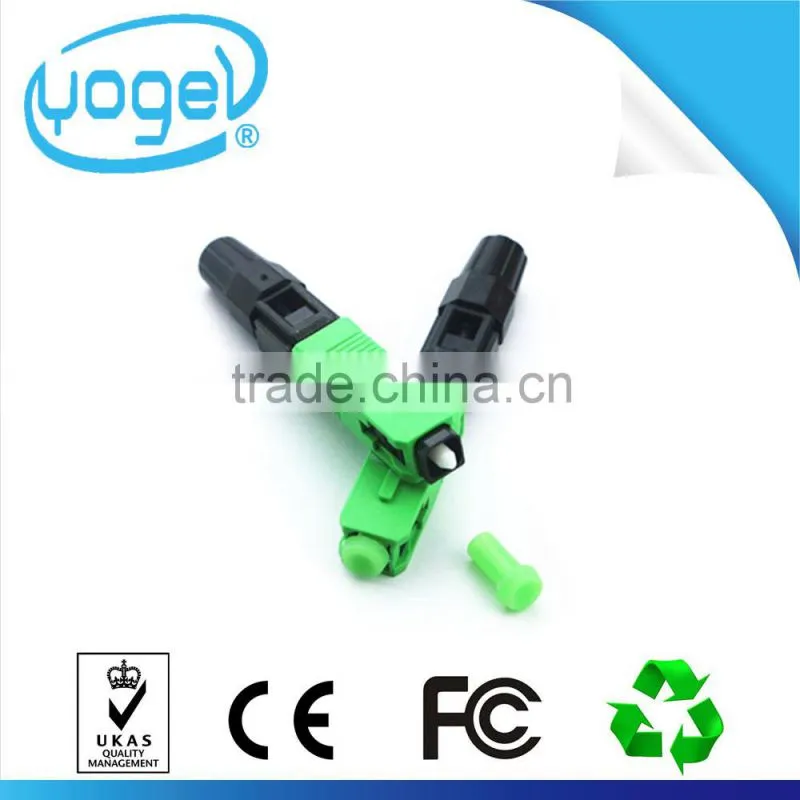

Optic Fiber Fast Connector

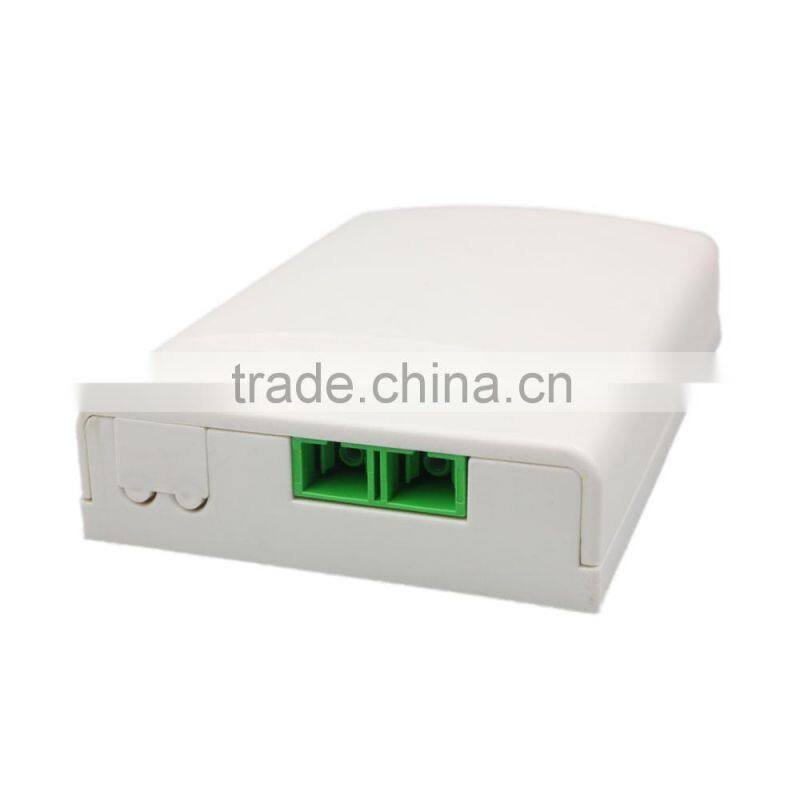

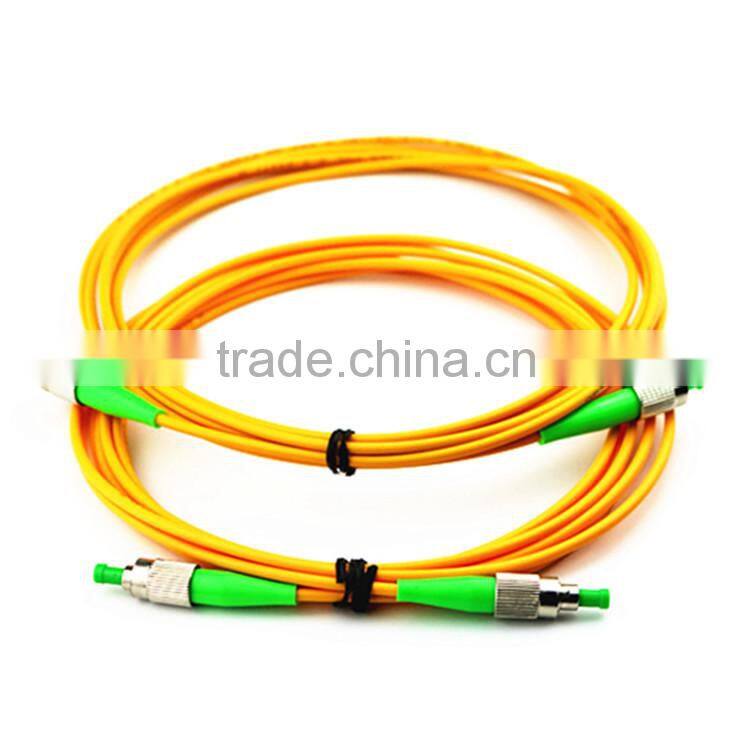

Optic Fiber Patch Cord Optic Fiber terminal box

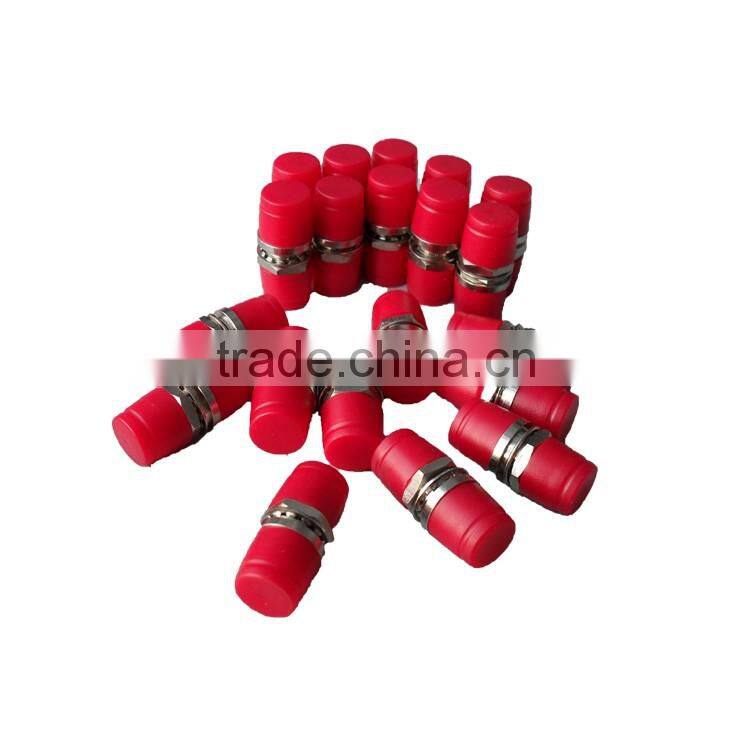

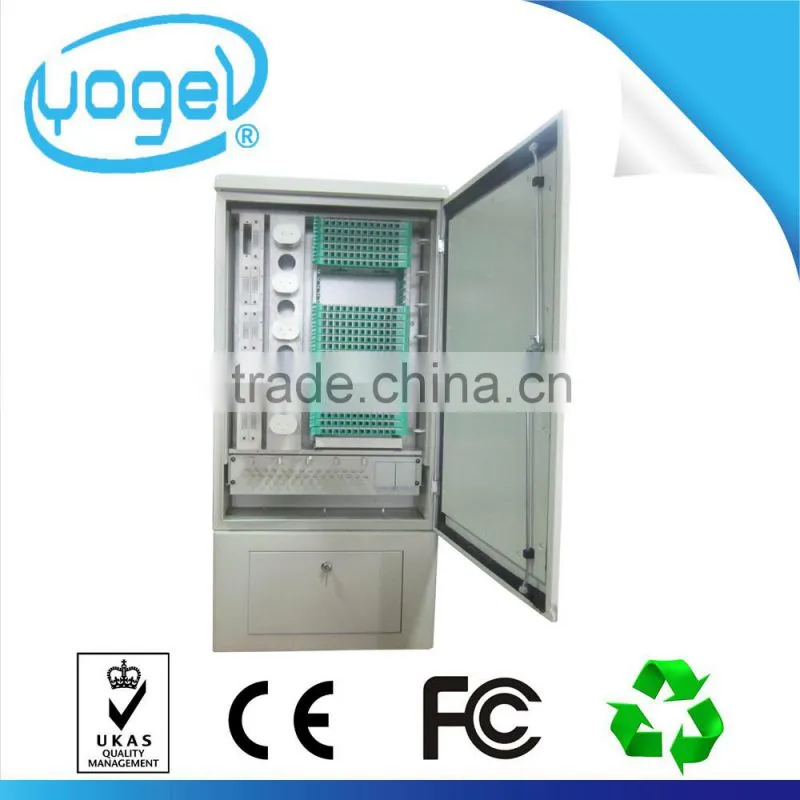

optic Fiber Adapter Fiber Optical Terminal Cabinet
