High efficiency grinding gold machine/ wheel
mill for gold of China leading brand
Instruction :
Grinding gold machine is also called wet grinding machine. It is praised by users be
cause of it has the features of low investment, high production capacity, low consu
mption, good efficiency, easy installation and maintenance. It is an excellent equip
ment ,which can replace ball mill, and gold grinding mill is mainly used for separat
ion of gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin a
nd other minerals selected.
Features :
Grinding gold machine is mainly through the mixing of raw materials, rolling, crush
ing, rolling repeatedly to reach moisture equilibrium, the ratio of uniform, low gas c
ontent, to increase molding and molding quality, grind the material through the mac
hine molding products,It has a high density, strength, and no porosity ratio. Energy
efficient, high output, the product is used for iron ore tailings recovery process, not
slag the loss, the effective resources can be fully utilized.
Technical Parameters :
Model |
Specification |
Input size(mm) |
Rotate Speed (r/min) |
Powder(kw) |
Weight(t) |
1600A |
1600×400×200×500±20mm |
30mm |
20-22 |
25KW |
14.5 |
1500A |
1500×350×200×460±20mm |
20-22 |
22KW |
13.5 |
|
1500B |
1500×350×150×460±20mm |
20-22 |
22KW |
12.3 |
|
1500C |
1500×300×150×420±20mm |
20-22 |
22KW |
11.3 |
|
1400A |
1400×250×150×350±20mm |
16-18 |
18.5kw |
8.5 |
|
1400B |
1400×250×150×350±20mm |
21-23 |
18.5kw |
8.5 |
|
1350A |
1350×250×150×350±20mm |
16-18 |
18.5kw |
8 |
|
1350B |
1350×250×150×350±20mm |
21-23 |
18.5kw |
8 |
|
1300A |
1300×250×150×350±20mm |
16-18 |
15kw |
7.5 |
|
1300B |
1300×250×150×350±20mm |
21-23 |
15kw |
7.5 |
|
1200A |
1200×200×80×250±20mm |
17-19 |
7.5kw |
5.5 |
|
1200B |
1200×200×80×250±20mm |
23-25 |
7.5kw |
5.5 |
|
1100A |
1100×200×80×250±20mm |
17-19 |
7.5kw |
5 |
|
1100B |
1100×200×80×250±20mm |
23-25 |
7.5kw |
5 |
|
1000 |
1000×200×80×250±20mm |
13-15 |
5.5kw |
4.5 |
Operation :
1.Before putting the raw materials into the machine, you must make sure that the ma
-chine has been checked for norma working.
2.If the machine is stopped,such as power cut,the material laying in the machine befo
-re should be cleaned out.
3.The frequency of feeding material should be stable,the frequency going up and dow
-ning is not allowed.
5.Check all the bolts regularly to make sure that the bolts are tight.
6.If the bearing parts are damaged,they should be taken place by new ones immediate
-ly.
7.When the machine is working, you should pay attention whether there’s abnormal
-sounds or high temperature,if it happens,you should stop and check in time.
8.While checking or repairing the machine,you should take out the V-belts.

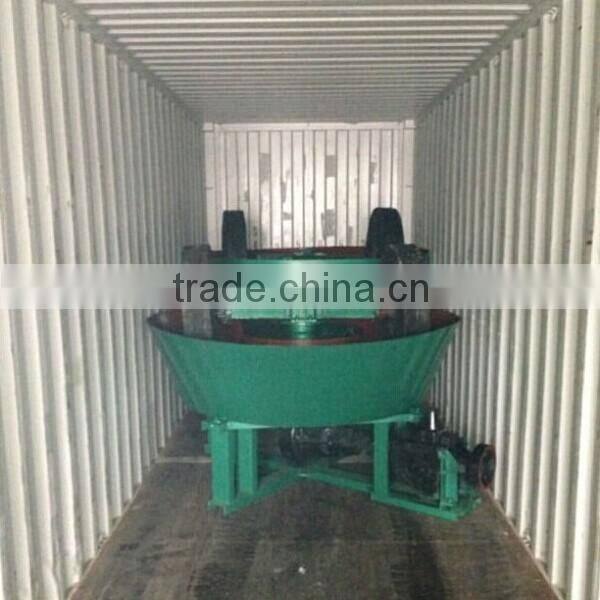

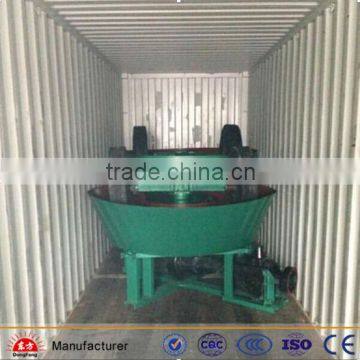

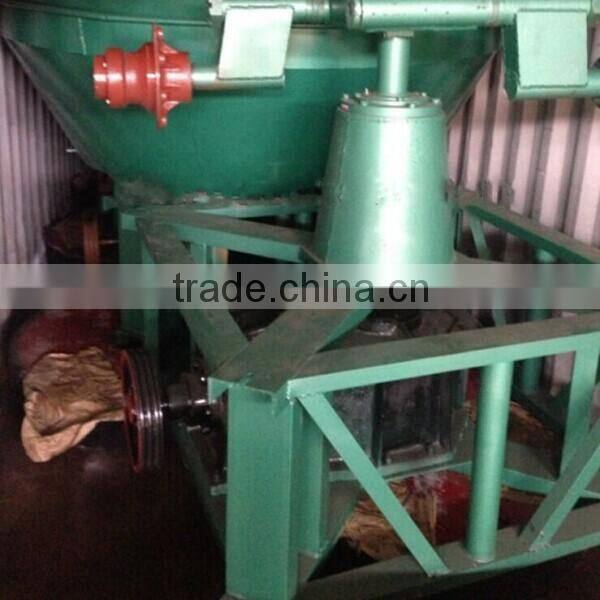

Delivering Pictures Presention:
The following pictures are the spot of delivering, our machines have been sold in
nearly 30 countries in Europe and Africa,as the quality and service of us are quite
good in China.
About Our Company:
Henan Dongfang Group is a manufacture factory.The factory has very rich experie
-nce as it has a history of more than ten years. The factory covers more than 60,000
square meters,180 sets of gold processing equipment,more than 1,000 employees,and
our factory .
This is our factory,Dongfang Group,and the workshop.You're welcome to visit our
factory.
Welcome to visit our factory and patronize for our common development creating brilliancy!
Contract Us:
If you want to know more about us and our production,please contract us,and we'll
be very
HENAN DONGFANG MACHINERY Co., Ltd.
Contact: Helen Zhao
Skype: dfmachine01
Tel: 0086-371-67668877 / 67944555
Fax: 0086-371-67944555
If you have any problems. Please feel free to contact us.
You're warmly welcome to visit our factory
Our website: http://hndongfang.en.china.cn/
