Iso50 Taper Spindle Milling Metal Machine

Name: Iso50 Taper Spindle Milling Metal Machine
Brand: YOURONGXILI
SKU: 106420063
Availability: InStock

US$ 8,000 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOURONGXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number X5750

Type Universal

CNC or Not Normal

Voltage 220V/380V

Power(W) 7500W

Dimension(L*W*H) 2625*2460*2080

Weight 5000KG

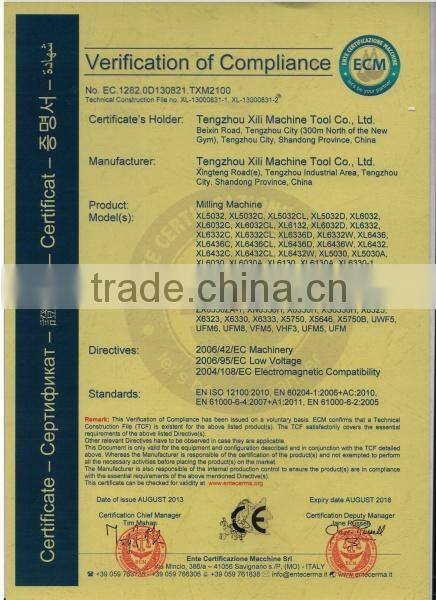

Certification CE ISO

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

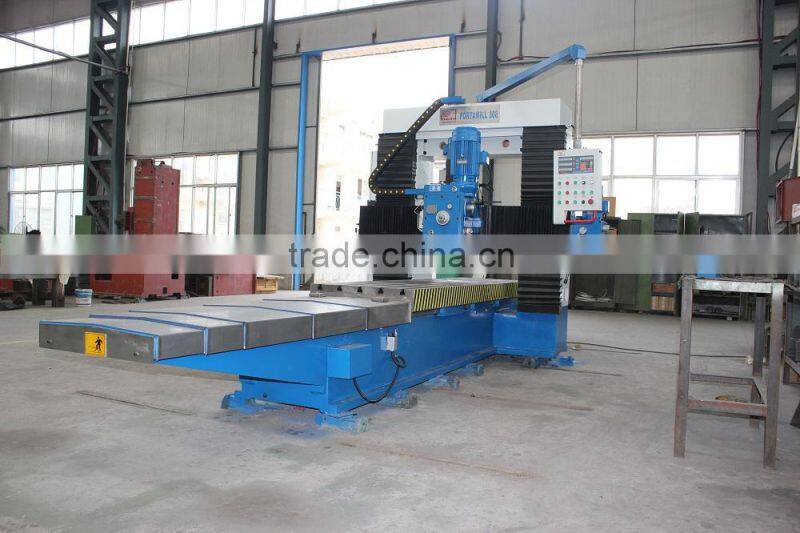

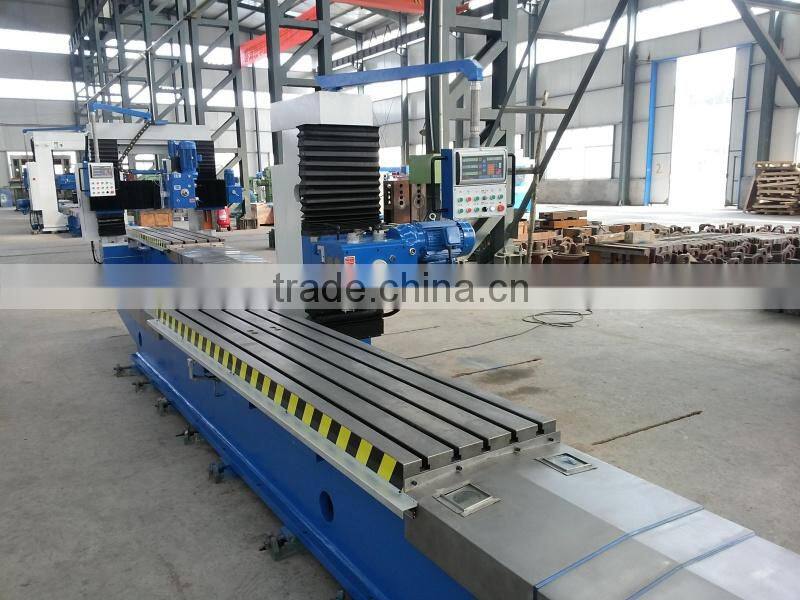

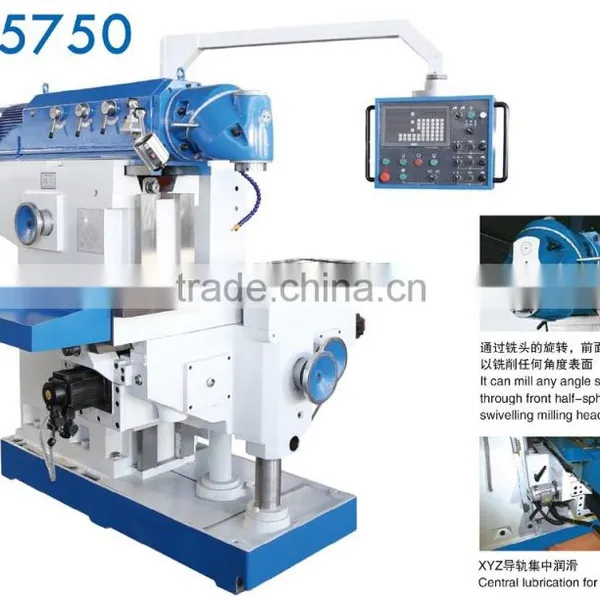

ISO50 Taper Spindle Milling Metal Machine

Product Description

1. Solid, heavy grey cast iron construction, making this model ideal for heavy machining of oversize workpieces.

2. Servo drive in all axis, a large work table and large travel

3. User-friendly control elements allow easy and quick speed change

4. The adjustment of the 90° and 45° level allows the universal mill head to be set to various different angles

5. Large dovetail guidings in X axis, rectangular guides at the Y and Z axis guarantees an increase in stability

6. Stepless feed settings and rapid feed in all axis, driven by servo motors

Specifications	Unit	X5750	X5750A
Table size	mm	500*1600	500*2000
T-slots(NO./width/pitch)	mm	51880
Table travel (X/Y/Z)	mm	1200700500	1400700500
Swivel angle of milling head	-	360°
Spindle taper	-	ISO50	ISO50
Spindle speed range	r.p.m	(27) 30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/5-500	10-1000/10-1000/5-500
Table rapid speed		2200/2200/1100
Distance between spindle nose and table surface	mm	25-525
Distance from spindle center line to column	mm	55-755
Main motor power	Kw	7.5
Feed motor	Kw	AC servo motor X/Y:15NM; Z: 18NM
Max load	Kg	1800	1800
Overall size	mm	247522602180	298622602180
weight	kg	5000	5500
