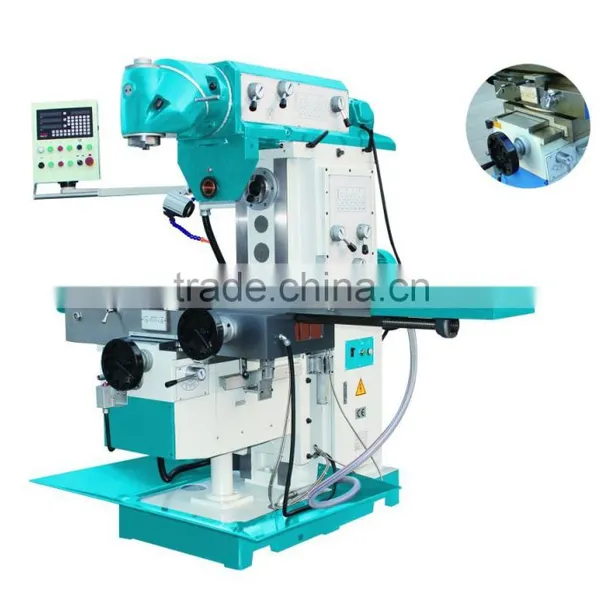

XL6436CL Servomotor Driven Universal Swivel Head Milling Machine

Name: XL6436CL Servomotor Driven Universal Swivel Head Milling Machine
Brand: YOURONGXILI
SKU: 106420085

US$ 5,000 - 8,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOURONGXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number XL6436CL

Type Universal

CNC or Not Normal

Voltage 220V/380V

Power(W) 5.5kw

Dimension(L*W*H) 2520*2100*2000

Weight 2800KG

Certification CE ISO

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

XL6436CL Servomotor Driven Universal Swivel Head Milling Machine

Product Description

1. This model is solidly constructed, featuring a moveable arm and big clamping area.

2. The big dimensioned guidings in all axis guarantees absolute precision and stability.

3. Variable speed adjustment (vertical spindle) via frequency inverter with optimal torque and almost constant speed at heavy workloads

4. Optimal adjustments of spindle speed and feed allow for economic machining of various materials

5. Central lubricatiion in X Y axis

6. Electronic components from Schneider Electric

Specification	Unit	XL6436CL
Table size	mm	1600×360
Table travel(X/Y/Z)	mm	1300/320/450
Max. swivel angle of table		45°
Table feed step	grade	8
Table feed range(X/Y/Z)	mm/min	30-750/20-500/15-375
Table rapid speed X	mm/min	1200
Table rapid speed Y	mm/min	800
Table rapid speed Z	mm/min	600
Spindle hole taper		(V)7:24, IS050; (H)7:24, IS050
Arm travel	mm	550
Distance between horizontal spindle center line and table surface	mm	(H)30-420
Distance between spindle nose and table surface	mm	(V)200-590
Distance between spindle center line and arm surface	mm	200
Spindle speed range	rpm	(V)12steps, 60-1750; (H)12steps, 60-1800
T-slots(NO./width/pitch)	mm	3/18/80
Main motor power	Kw	(H)5.5; (V)4
Overall size	mm	2520x2100x2000
Net weight	kg	2800
