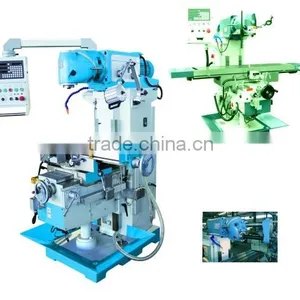

XL6230 Universal Milling Machine with digital readout

FOB Price

USD $5,000 - $8,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	YOURONGXILI	Model Number	XL6230
Type	Universal	CNC or Not	Normal
Voltage	380v	Power(W)	3KW
Dimension(LWH)	173017601700	Weight	1350
Certification	ISO CE	Warranty	12 MONTHS
After-sales Service Provided	Engineers available to service machinery overseas

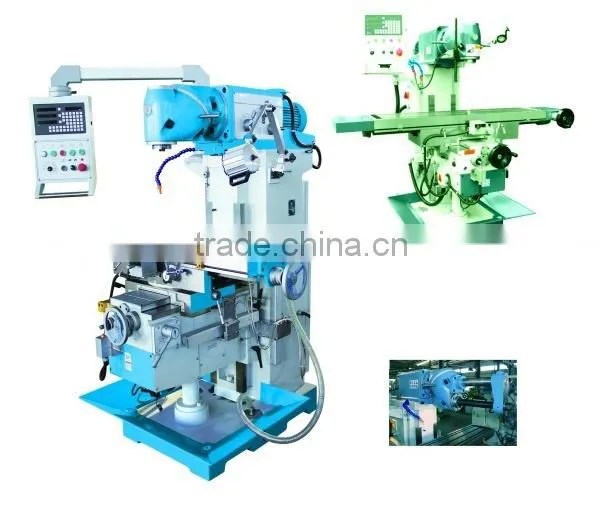

XL6230 Universal Milling Machine with digital readout

Product Description

1. This machine is desgned for light to medium heavy milling work.

2. Tiltable work table, the rectanguar guiding in Y and Z axs, and the servo drive for feeds and rapid feed in all axis

3. Complete with counter bearing and long milling arbor for milling in horizontal position

4. User-friendly control elements allw easy and quick speed change

5. Universal mill head adjustabe to various angles

6. Oversize flat guides guarantee stability at high milling load, mill table tilts from -45° to +45°

Specifications	Unit	XL6230	XL6230A	XL6230B	XL6230C
Table size	mm	1270*300	1370*300	1270*300	1370*300
T-slots(NO./width/pitch)	mm	31480
Max table travel - X/Y/Z	mm	720/300/400	820/300/400	900/380/400	1000/380/400
Spindle taper	-	7:24 ISO40
Distance between spindle nose and table surface	mm	100-500
Spindle speed range	r.p.m	11 steps 45-1660
Max swivel angle of milling head	-	360°
Table feed(X/Y/Z)	mm/min	No finite
Table rapid speed		1000/1000/750
Main motor power	Kw	2.2(V)/ 3(H)
Torque of X/Y/Z axis AC servo motor	Nm	10
Overall size	mm	173017601700	183017601700	173017601700		183017601700

Rotary table can be ordered at special request

Model	Table size	Max table travel - X/Y/Z	Max rotary angle of table	Distance between spindle nose and table surface
XL6230W	1270*320	720/300/400	±45°	60-460
XL6230AW	1370*320	820/300/400
XL6230BW	1270*320	900/380/400
XL6230CW	1370*320	1000/380/400
