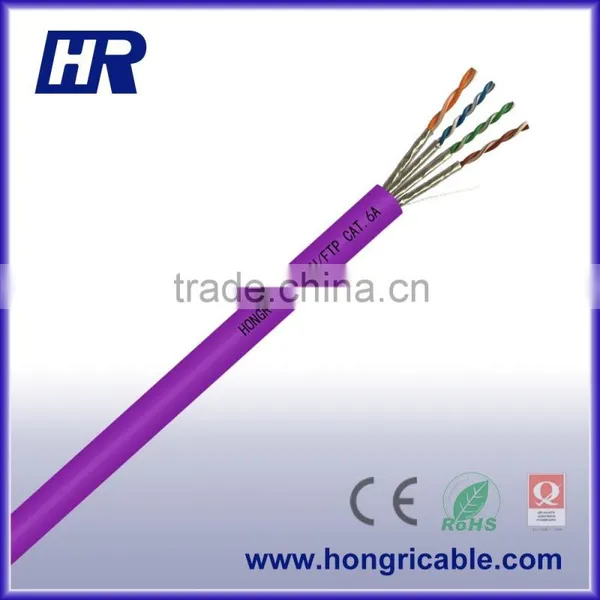

Help CenterCAT6A U/FTP Cable cu LSZH
US$ 90 - 130
MOQ: 100 Boxes
Key Specifications
Get Latest Price
Brand Name:
Hongri/OEM
Model Number:
CAT6A
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
Hongri/OEM
Model Number
CAT6A
Place of Origin
Zhejiang, China
Product Description
| Item | DC5706AU/F04 | Description | U/FTP CAT6A 4×2×0.57CU 305M/DRUM | ||
| Standard | IEC61156-5,ISO/IEC11801,ANSI/TIA568-C.2,YD/T1019 | ||||
| Application | structured premises cabling,VoIP,Token,ISDN,10Base-T,100Base-T,1000Base-T,10G Base-t(IEEE 802.3), TP-PMD/TP/DDI 125Mbit/s,ATM 155Mbit/s,(IEEE 802.5),TR-16 ACTIVE and Passive | ||||
| Marking | U/FTP CAT.6A 4P 23AWG IEC61156-5 ISO/IEC11801 ***M | ||||
| Construction | |||||
| Conductor | Solid Bare Copper | Insulation Colors | White/Blue,Blue | Jacket | LSZH or PVC |
| Conductor Dia. | 0.57±0.01mm | White/Orange,Orange | Jacket Dia. | 7.7±0.3mm | |
| Insulation | FPE | White/Green,Green | Jacket Color | Purple | |
| Insulation Dia. | 1.35±0.05mm | White/Brown,Brown | Jacket Thickness | 0.55±0.1mm | |
| Shield | Individual pair | Rip Cord | Yes | Packing | Drum |
| Electrical Characteristics | |||||
| Frequency(MHz) | ATT (≤dB/100m) | NEXT (≥dB) | ELFEXT (≥dB) | RL (≥dB) | PS NEXT (≥dB) |
| 1 | 2.1 | 75.3 | 68.0 | 20.0 | 72.3 |
| 4 | 3.8 | 66.3 | 56.0 | 23.0 | 63.3 |
| 8 | 5.3 | 61.8 | 49.9 | 24.5 | 58.8 |
| 10 | 5.9 | 60.3 | 48.0 | 25.0 | 57.3 |
| 16 | 7.5 | 57.2 | 43.9 | 25.0 | 54.2 |
| 20 | 8.4 | 55.8 | 42.0 | 25.0 | 52.8 |
| 25 | 9.4 | 54.3 | 40.0 | 24.3 | 51.3 |
| 31.25 | 10.5 | 52.9 | 38.1 | 23.6 | 49.9 |
| 62.5 | 15.0 | 48.4 | 32.1 | 21.5 | 45.4 |
| 100 | 19.1 | 45.3 | 28.0 | 20.1 | 42.3 |
| 200 | 27.6 | 40.8 | 22.0 | 18.0 | 37.8 |
| 250 | 31.1 | 39.3 | 20.0 | 17.3 | 36.3 |
| 300 | 34.3 | 38.1 | 18.5 | 17.3 | 35.1 |
| 400 | 40.1 | 36.3 | 16.0 | 17.3 | 33.3 |
| 500 | 45.3 | 34.8 | 14.0 | 17.3 | 31.8 |
| Impedance (4-100MHz) (100-600MHz) (600-1000MHz) | 100±15 Ohm 100±32 Ohm 100±43 Ohm | Conductor DC Resistance 20℃ | ≤95(ohms/km) | Capacitance unbalance | ≤160pF/100m |
| Resistance Unbalance | ≤2% | Prop. Delay | ≤555ns | Delay shew | ≤45ns |
Product Process
Packaging & Shipping
Certification
Company Information
Our Services
1. Professional Cable Manufacturer: Specializing in the production Lan cable, Alarm, cable, etc.
2. We provide good products, the factory price, good service.
3. Fast response: All the requirements we will reply within 24 hours.
4. Fast delivery.
5. We provide OEM,ODM service.
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2013
Factory Size
3,000-5,000 square meters
Total Employees
11 - 50 People
