Product Details
Condition: | New | CNC or Not: | Normal | Drilling Speed: | 1500 |
Place of Origin: | Shandong, China | Brand Name: | Yourongxili | Model Number: | Z5140B-1 |
Voltage: | 380 | Power(W): | 3000 | Dimension(L*W*H): | 1090*905*2465 |
Weight: | 1250 | Certification: | CE | After-sales Service Provided: | Overseas third-party support available |
Product Description
durable and powerful drill press Z5140B Z5150B
Main feature of Drill Press
1. Z5140B and Z5140B-1 Drill Machine are universal drill machine.the max drill diameter is 40mm.
2.Z5150B and Z5150B-1 Drill Machine are universal drill machine.the max drill diameter is 50mm.
3. The table of Z5140B, Z5150B is fixed and The Z5140B-1, Z5150B-1 is cross table.
4. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.
5. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.
Specification
Specification | Unit | Z5140B | Z5140B-1 | Z5150B | Z5150B-1 |
Max drilling diameter | mm | 40 | 50 | ||
Spindle taper |
| MT4 | MT5 | ||
Stroke of spindle quill | mm | 250 | |||
Spindle box travel(manual) | mm | 200 | |||
Spindle speed steps |
| 12 | |||
Spindle speed range | r.p.m | 31.5-1400 | |||
Spindle feed steps |
| 9 | |||
spindle feed range | mm/r | 0.056-1.80 | |||
Table size | mm | 560 x 480 | 800 x 320 | 560 x 480 | 800 x 320 |
Longitudinal/cross travel | mm | - | 450/300 | - | 450/300 |
Vertical travel | mm | 300 | |||
Max distance between spindle and table surface | mm | 750 | 550 | 750 | 550 |
Main motor power | kw | 3 | |||
Overall size | mm | 1090x905x2465 | 1300x1200x2465 | 1090x905x2465 | 1300x1200x2465 |
Net weight | kg | 1250 | 1350 | 1250 | 1350 |

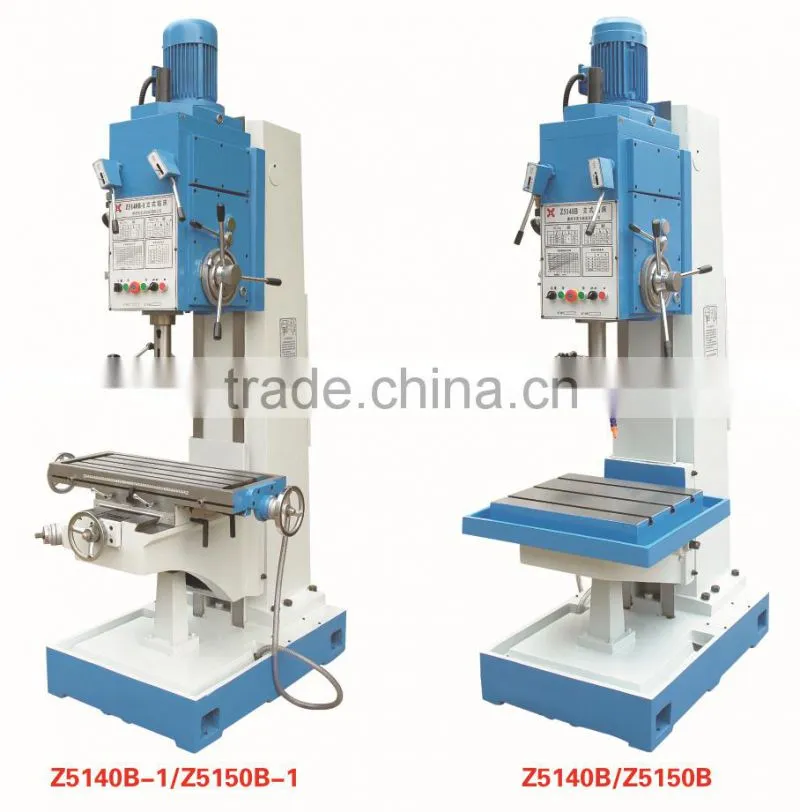

Picture of drill press
Certificate
CE , ISO9001
