Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > Z5150B-1Vertical Metal Stand Drilling Machine

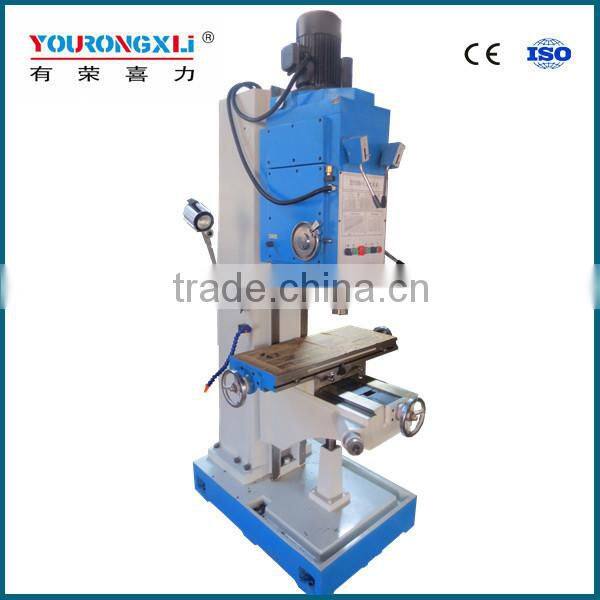

Z5150B-1Vertical Metal Stand Drilling Machine

Name: Z5150B-1Vertical Metal Stand Drilling Machine
Brand: XILI
SKU: 106416501
Availability: InStock

Z5150B-1Vertical Metal Stand Drilling Machine thumbnail-1

Z5150B-1Vertical Metal Stand Drilling Machine photo-1

US$ 1 - 9 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

Normal

Drilling Speed:

1500

Contact Supplier Request Quote Chat Now

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not Normal

Drilling Speed 1500

Place of Origin Shandong, China

Brand Name XILI

Model Number Z5140B/ Z5140B-1/Z5150B/Z5150B-1

Voltage according to your request

Power(W) 3000

Dimension(L*W*H) 1090*905*2465

Weight 1250

Certification CE ISO9001

After-sales Service Provided Overseas third-party support available

stand drilling machine Z5150B-1

1.Suitable for batch drilling on small and medium size plate, disc or shell type and other complex workpieces.

2.High accuracy, high efficiency, high automation and high flexibility.

stand drilling machine : Main feature

1. ZK5140B and Z5140B-1 are universal drilling machine.the max drilling diameter is 40mm.

2.ZK5150B and Z5150B-1 Column Drill are universal drilling machine.the max drilling diameter is 50mm.
3. The table of Z5140B, Z5150B is fixed and The Z5140B-1, Z5150B-1 is cross table.
4. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.

5. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.

stand drilling machine : Specification

Specification	Unit	Z5140B	Z5140B-1	Z5150B	Z5150B-1
Max drilling diameter	mm	40		50
Spindle taper		MT4		MT5
Stroke of spindle quill	mm	250
Spindle box travel(manual)	mm	200
Spindle speed steps		12
Spindle speed range	r.p.m	31.5-1400
Spindle feed steps		9
spindle feed range	mm/r	0.056-1.80
Table size	mm	560 x 480	800 x 320	560 x 480	800 x 320
Longitudinal/cross travel	mm	-	450/300	-	450/300
Vertical travel	mm	300
Max distance between spindle and table surface	mm	750	550	750	550
Main motor power	kw	3
Overall size	mm	1090x905x2465	1300x1200x2465	1090x905x2465	1300x1200x2465
Net weight	kg	1250	1350	1250	1350
