Z5150B-1 Vertical Column Manual Drilling Machine for sale
- 100 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | CNC or Not: | Normal | Drilling Speed: | 1500 |
Place of Origin: | Shandong, China | Brand Name: | XILI | Model Number: | Z5140B/ Z5140B-1/Z5150B/Z5150B-1 |
Voltage: | according to your request | Power(W): | 3000 | Dimension(L*W*H): | 1090*905*2465 |
Weight: | 1250 | Certification: | CE ISO9001 | After-sales Service Provided: | Overseas third-party support available |
Product Description

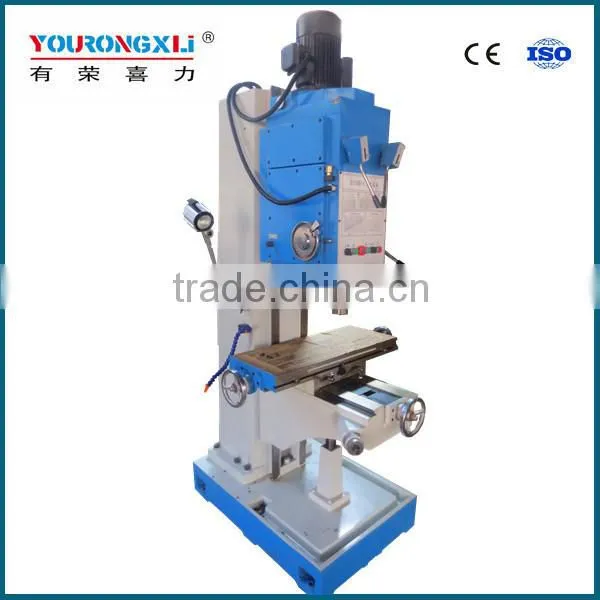

Vertical Column Manual Drilling Machine Z5150B-1
1.Suitable for batch drilling on small and medium size plate, disc or shell type and other complex workpieces.
2.High accuracy, high efficiency, high automation and high flexibility.
Manual Drilling Machine :Main feature
1. ZK5140B and Z5140B-1 are universal drilling machine.the max drilling diameter is 40mm.
2.ZK5150B and Z5150B-1 Column Drill are universal drilling machine.the max drilling diameter is 50mm.
3. The table of Z5140B, Z5150B is fixed and The Z5140B-1, Z5150B-1 is cross table.
4. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.
5. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.
Manual Drilling Machine :Specification
Specification | Unit | Z5140B | Z5140B-1 | Z5150B | Z5150B-1 |
Max drilling diameter | mm | 40 | 50 | ||
Spindle taper |
| MT4 | MT5 | ||
Stroke of spindle quill | mm | 250 | |||
Spindle box travel(manual) | mm | 200 | |||
Spindle speed steps |
| 12 | |||
Spindle speed range | r.p.m | 31.5-1400 | |||
Spindle feed steps |
| 9 | |||
spindle feed range | mm/r | 0.056-1.80 | |||
Table size | mm | 560 x 480 | 800 x 320 | 560 x 480 | 800 x 320 |
Longitudinal/cross travel | mm | - | 450/300 | - | 450/300 |
Vertical travel | mm | 300 | |||
Max distance between spindle and table surface | mm | 750 | 550 | 750 | 550 |
Main motor power | kw | 3 | |||
Overall size | mm | 1090x905x2465 | 1300x1200x2465 | 1090x905x2465 | 1300x1200x2465 |
Net weight | kg | 1250 | 1350 | 1250 | 1350 |

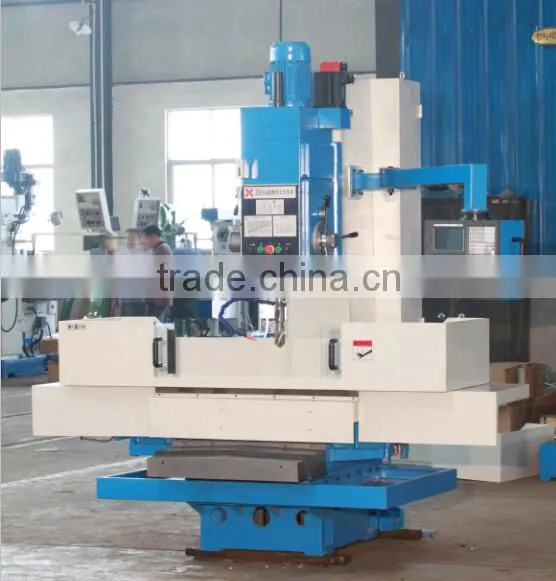

CNC Type Drilling Machine
Certificate: ISO9001, CE Certificate
