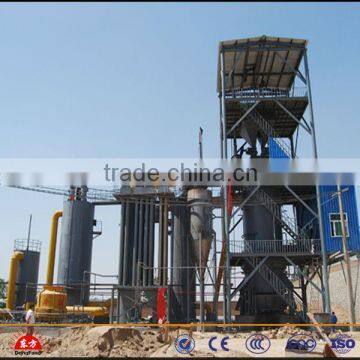

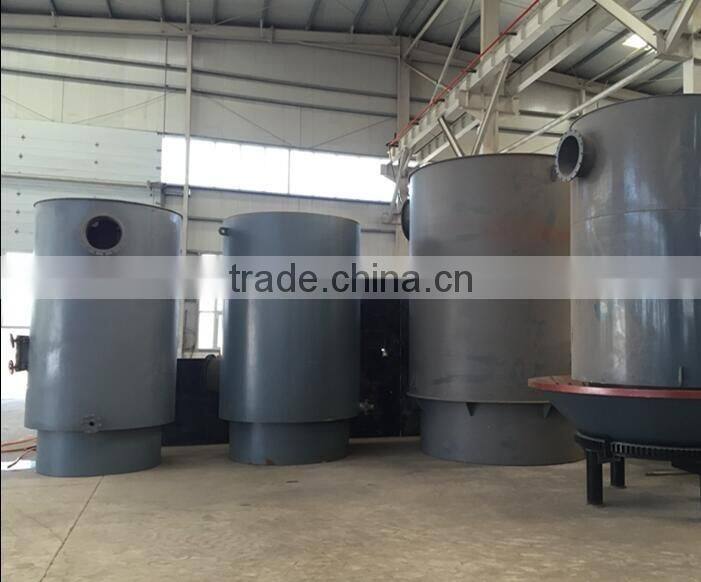

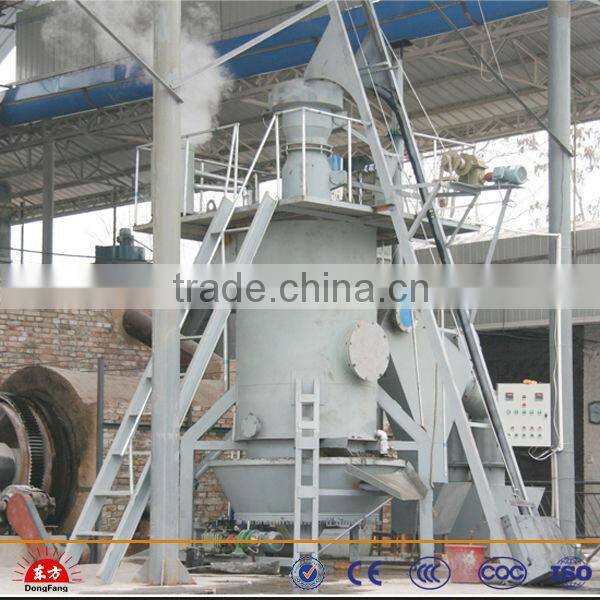

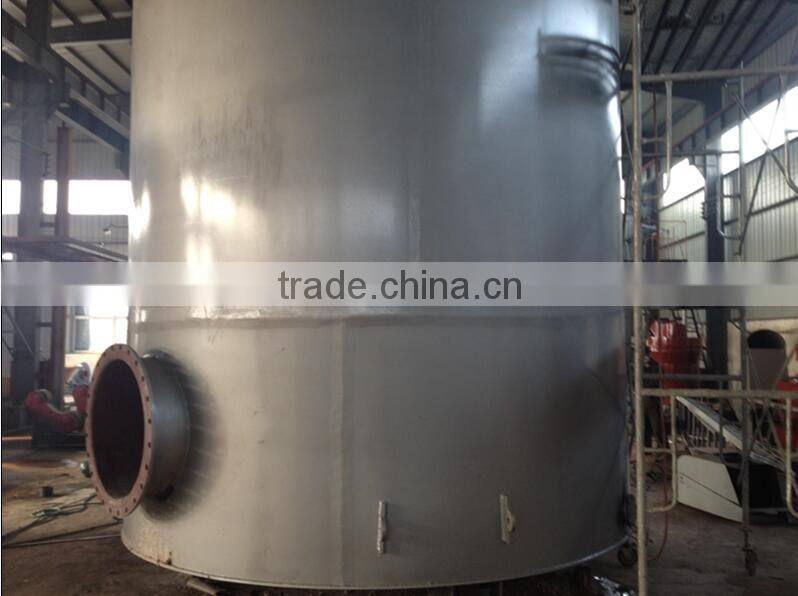

Low consumption coal gasifier /small coal gasifier /coal gasifier furnace

Model(mm)

QM0.8

QM1.0

QM1.2

QM1.5

QM1.6

QM1.8

QM2.0

QM2.4

QM2.6

QM3.0

QM3.2

Chamber diameter(m)

800

1000

1200

1500

1600

1800

2000

2400

2600

3000

3200

Hearth active surface

0.5

0.785

1.13

1.77

2.01

2.54

3.14

4.52

5.31

7.07

8.03

Suirable fuel

weak coherent gas carbon,anotherracite,burnt carbon

Fuel granularity(mm)

25-80

Fuel consumption quantitykg/h

40-100

70-140

120-190

160-350

350-460

500-600

500-720

700-1040

850-1200

1700-2000

1800-2200

Gasifying agent

Air ,steam Coal gasification is the process of producing coal gas, a type of syngas–a mixture of carbon monoxide (CO), hydrogen (H2), carbon dioxide (CO2) and water vapour (H2O)–from coal and water. Coal gas, which is a combustible gas, was traditionally used as a source of energy for municipal lighting and heat before the advent of industrial-scale production of natural gas, while the hydrogen obtained from gasification can be used for various purposes such as making ammonia, powering a hydrogen economy, or upgrading fossil fuels

Gas yieldNm³/h)

140-350

245-490

420-670

560-1200

1200-1600

1500-2100

1750-2500

2500-3600

3000-4300

6000-7000

6500-7500

Gas calorific valu(Kj/Nm³

5020-5670

5020-6000

Water jacket heating area()

4.02

5.02

6.78

10.37

11.06

12.44

17.58

21.87

23.69

30.16

38.4

Steam output (kg/h)

60

80

130

200

220

260

350

420

600

840

880

Gas outlet temperature()

(400-500)Plants related with the coal

(400-500)Plants related with the coal

Gas outlet pressure(Pa)

1000

980-1470

1470-1960

Gas exportation diameter(mm)

219

325

325

426

426

529

630

720

820

1020

1050

Air pressure(Pa)

3000

4000

4000

Saturated air temperature()

50-60

50-65

Ashpan rotational speed(r/h)

0.177-1.77

Equipment gross weight(t)

3.5

4.5

5

7.5

10

20

23.4

29.8

32

37.6

43.6

Motor power (kw)

6

6

6

7

8

10

14

20

20

27

32
