High Precision Paper Cutting Machine

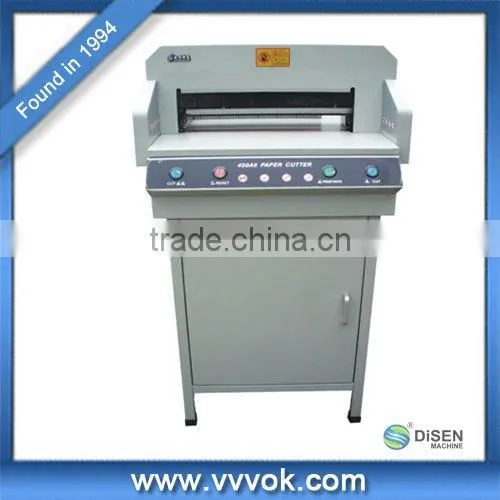

High Precision Paper Cutting Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Paper Cutting Machine
Computerized:
No
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Type Paper Cutting Machine
Computerized No
Place of Origin Guangdong, China
Brand Name Disen
Model Number 450A6
Warranty one year

High precision paper cutting machine





450-A6 Paper cutting machine

Independent paper technology

Technology leader in cutting speed,pressure intensity and thickness of paper

High quality alloy knife for selection

Safety infrared photo electricity protection

Extended front shield

450-A6 Precision Paper Cutter



Technical parameters



Model

Max Cutting Size

Min.Cutting Size

Cutting Thickness

Cutting precision

Press Paper Way

Power

Machine Weight

Machine Size(H*D*W)

DS-450A6

450mm

50mm

50mm

±0.5mm

Automatic

220v/110v±10% 50Hz(60Hz)

900W

120kg

870x760x740mm



High precision paper cutting machine



High precision paper cutting machine

High precision paper cutting machine



High precision paper cutting machine





High precision paper cutting machine



Electric Paper Cutters are the most efficient way to precisely cut large stacks of paper stock. Fully automatic and semi-automatic models are available. Automatic Electric Paper Cutting machines allow you to cut stacks of paper (from 50 to 1000 sheets of 20# bond) into smaller sizes. Electric paper cutting machines are also used to cut card stock.



Paper cutting machine advantage

Electric Paper Blade

Locking Back Gauge with Calibrated Crank

Solid Steel Blade Carrier

Two-hand operation for safety

Adjustable Steel Paper Guide in mm. / inches

All Metal Construction

Automatic Blade Return from any position

Blade/Knife Lock

Disc Brake for Instant Blade Stop

Solid spindle guided Paper Clamp applies variable, even vertical pressure along the Cutting Length

Easy Blade Change

External Blade Depth Adjustment

Fine Back Gauge (Back Stop) Manual Adjustments with calibrated hand crank on spindle guided Back Gauge.

Back Gauge moves in 1 mm. increments. Back Gauge accuracy is plus/minus .5mm/.019 inches

Hand Guard Shield for cutting safety on the Front and Rear Table.

Includes: 2 Keys, Power Cord, Knife Removal Sheath, Knife Removal Tool, Crank Handle and Screw, T3 and T5 Screw Drivers for changing the Blade and for Blade Micro Adjusting, 2 Knife Removal Screw Handles,Sleeve Set, Hexagonal Driver

Micro Adjustment of Blade

Resharpenable Blade

Safety Lock with key and Main Switch

paper cutting machine price

paper cutting machine

industrial guillotine paper cutting machine



Do you need paper cutters or paper trimmers? Choose from our range of paper trimmers and paper guillotines. Whatever your paper cutting requirements are there will be a paper cutting machine here to suit your needs. Whether you are looking for a home office paper trimmer that will cut a single sheet of paper or a large professional paper guillotine which is capable of trimming hundreds of sheets in one go – we have them all.

paper cutting machine price

paper cutting machine

industrial guillotine paper cutting machine



Paper Trimmer – these are the most precise type of paper cutters that allow great accuracy and cutting sheets exactly to the required dimensions. Most of the paper trimmers within our range are rotary trimmers which have their cutting blades enclosed in an easy to hold cutter head. Since their main advantage is high precision trimming without any uneven paper leftovers at the edge where it is being cut they are often use by photographers, designers, architects, etc. Rotary trimmers don’t take as many sheets at once as paper guillotines but as mentioned before they aim at precision rather than volume.

paper cutting machine price

paper cutting machine

industrial guillotine paper cutting machine



Paper Cutter – also referred to as paper guillotines are designed to precisely cut larger quantities of paper at once. Paper guillotines which are available on our site are capable of cutting between 15– 40 sheets during a single use of the cutter. The way a paper guillotine operates is similar to scissors just that instead of having two movable knives you only have one knife that is moving and the other one is stationary. Such method of cutting allows getting straight cuts which would be impossible to achieve if using scissors. Paper cutters are available for various paper sizes including the most popular sizes like A4 and A3.

paper cutting machine price

paper cutting machine

industrial guillotine paper cutting machine



1.Optimized structure design, precise production, stable preference, solid and durable;

2.Performance and sturdy for long use;

3.Adopt innovative integrated stable computer numerical control, ensure machine working reliable;

4.There is digital display indicates the size before cutting and after cutting;

5.Manual paper forward, Push button switch, both hand on work locking device, auto reset function,

safety guarantee;

6.Adopt high speed steel blade, sharp and endure;

7.Adopt infrared ray safe lock and protect-cover, safety guarantee;

8.Fashionable simple design, beauty and utility;

9.Separated motor-driven paper press, press before cutting, oblique cutting, ensure the cutting precisely;

10.Fashionable and simple design.



Other paper cutter related products
image Description Parameter
High precision paper cutting machine 450AB precise paper cutter with automatic paper pressing structure,and canbe operated conveniently and promptly it's reliable and steay when pressing the paper,because of the pressing structure rotar table style Adapted new high integrated&high steady sparparts,orighally created electric inficating line of knife locating to be sure that the equipment are running reliably. With the touching style,double hands'catenation fixing,the function of replacing automatically,the machine is absolutely quaranted safe the machine is sharp and durble when adapted high-speed steel the operation will be more handy with the function of special faults checking auomaticly the machine are beautiful and practical with the outlook designed fashionabely and compactly

Max Cutting Size:450mm

Min.Cutting Size:50mm

Cutting Thickness:40mm

Cutting precision:±0.5mm

Press Paper Way:Automatic

Power:AC220V(110V)±10% 50Hz(60Hz)

Machine Weight:70kg

Machine Size: 732*588*944 mm

High precision paper cutting machine 450D precise paper cutter Have all the funtion of 450AB It's reliable and steady when pressing the paper because of the pressing structure in rotary table

Max Cutting Size:450mm

Min.Cutting Size:50mm

Cutting Thickness:40mm

Cutting precision:±0.5mm

Press Paper Way:Manual

Power:AC220V(110V)±10% 50Hz(60Hz)

Machine Weight:120kg

Machine Size:732*588*944mm

High precision paper cutting machine 450C+ precise paper cutter With automatic contrapuntal funtion Cut the paper by the skew knife,can cut material such as PVC The life of the machine is double of the common one Search the cutting place automatically

Max Cutting Size:450mm

Min.Cutting Size:50mm

Cutting Thickness:40mm Cutting precision:±0.5mm

Press Paper Way:Automatic

Power:AC220V(110V)±10% 50Hz(60Hz)

Machine Weight:115kg

Machine Size:1020*760*670mm

High precision paper cutting machine 460-50V programmed fully automatic paper cutter characteristics 1.LCD Display,With fully automatic positioning funtion 2.Independent motor to press paper,completely resolve the inaccurate problem caused by spring pressing paper 3.Blade fine-tuning from the outside of machine patented technology 4.Infrared wall safety protection 5.Oblique knife cutting is more powerful,which can cut PVC materials 6.It can store 8 working data at the same time 7.Automatic adjustment of paper position.Double guide robs pushing paper ensure the accuracy of pushing paper. 8.Blade life is 2 times of common blade.Enhancing knife frame and high-quality blade ensure cutting precision and knife frame without distortion

Max Cutting Size:460mm

Min.Cutting Size:50mm

Cutting Thickness:50mm

Cutting precision:±0.5mm

Press Paper Way:Automatic

Power:AC220V(110V)±10% 50Hz(60Hz) 900W

Machine Weight:130kg

Machine Size:1020*760*670mm

High precision paper cutting machine 520 programmed fully automatic paper cutter characteristics 1.LCD Display,With fully automatic positioning funtion 2.Independent motor to press paper,completely resolve the inaccurate problem caused by spring pressing paper 3.Blade fine-tuning from the outside of machine patented technology 4.Infrared wall safety protection 5.Oblique knife cutting is more powerful,which can cut PVC materials 6.It can store 8 working data at the same time 7.Automatic adjustment of paper position.Double guide robs pushing paper ensure the accuracy of pushing paper. 8.Blade life is 2 times of common blade.Enhancing knife frame and high-quality blade ensure cutting precision and knife frame without distortion

Max Cutting Size:520mm

Min.Cutting Size:50mm

Cutting Thickness:60mm

Cutting precision:±0.2~0.5mm

Press Paper Way:Automatic

Power:AC220V(110V)±10% 50Hz(60Hz) 900w

Machine Weight:240kg

Machine Size:1020*760*670mm

High precision paper cutting machine 480-60V full-automatic numerical control paper cutter Liquid crystal surface after the demonstration,the microcomputer operation,the intellectualized design,the automatic reset,first press cuts a type work;Tertiary protection function;The operation safer,the use is more convenient. 1.overall casting rack,high strength;Does not have the distortion,imports the high-speed stell knife edge,the cutting with ease,the service life is long 2.pushes the paper,eneters the paper hnman nature design,lets your hands be far away the danger 3.shortcut key establishments.The multi-purpose use,enormously enhances your working effciency 4.infrared protections functions,safe reliable,has the electrocircuit circuit multiple protective measures 5.decelerators to use worm,the worm gear structure steadily in addition, the transmission reliable,the noise low 6.unique contours edsign,the overall lap,fad,beautful and practical 7.220V commonly used power source,suits each king of environment to use 8.numerical controls paper cutting machines is the institution,the school,the document printing,the numerical code flushes dinking die each kind of books,the paper, the printing thing and son on india, work,pringting,leater good helper,is necessary product which you staris an undertaking becomes rich

Max Cutting Size:480mm

Min.Cutting Size:50mm

Cutting Thickness:60mm

Cutting precision:±0.2~0.5mm

Press Paper Way:Automatic

Power:AC220V(110V)±10% 50Hz(60Hz)

High precision paper cutting machine 460-5k Digital fully automatic paper cutter characteristics 1.With fully automatic positioning function 2.Independent motor to press paper,completely resolve the inaccurate problem caused by spring pressing paper 3.Blade fine-tuning from the outside of machine patented technology 4.Infrared wall safety protection 5.Oblique knife cutting is more powerful,which can cut PVC materials 6.Automatic adjustment of paper position,with high accuracy 7.Adopting high stain steel blade, long life usage and very grace.

Max Cutting Size:460mm

Min.Cutting Size:50mm

Cutting Thickness:50mm

Cutting precision:±0.5mm

Press Paper Way:Automatic

Power:AC220V(110V)±10% 50Hz(60Hz)

Machine Weight:125kg

Machine Size:1020*760*670mm





High precision paper cutting machine

High precision paper cutting machine
