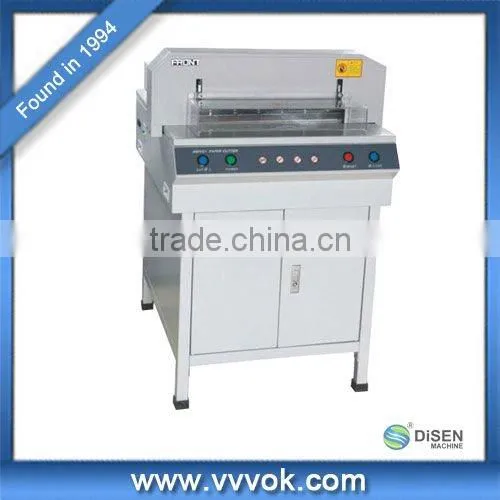

JN-450V+ Precision Electric Paper Cutter

JN-450V+ Precision Electric Paper Cutter thumbnail-1
JN-450V+ Precision Electric Paper Cutter photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Paper Folding Machine
Computerized:
No
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Guangzhou Disen Wenheng Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Paper Folding Machine
Computerized No
Place of Origin Guangdong, China
Brand Name disen
Model Number JN-450V

JN-450V+ Precision electric paper cutter

JN-450V+ Precision electric paper cutter

CHARACTERISTICS
1.Pressing paper automatically,press then cut
2.Precise numerical -control circuit design.Dotble orbit push pqper devicel
3.Front&back protection and safety guard power switch Device
4.Spin cutter withdepth curve technology device
5.Opitical cutting Line
6.Fashion able appearance design with patented
PARAMETERS
Max.Cutting Size: 450mm
Min.Cutting Size: 50mm
Cutting Thickness:40mm
Cutting Precision: ±0.5mm
Pressing paper Mode:Automatic
Pushing paper Mode: Numerical control
Power Supply: AC220V(110)±10% 50HZ(60HZ)900W
Net Weight: 115KG
Gross Weight:140KG
Packing size:870*740*700mm



Heavy-duty casting mechanism
Precision-machined parts processing technique to ensure machine working

Safe guard design
Making according to CE standard to guarantee safety with front & back plastic cover protective design

Inclined blade cutting patented technology
Any paper can be cut easily with inclined blade design

Patented appearance
Simple, exquisite metal technics and removable design, being applied to graphic printing office

Optical cutting line
Infrared laser indicating line,high-visible

Numerical-control circuit for pushing
Cutting size can be set at will and accurately





Promotion price: High precision Infrared electrical album cutter(450 model)
Product features:
1. Use wheel to press paper and album, stable and reliable
2. The optimized heavy frame design, precision processing, stable performance, strong and durable
3. Original electronic denoting line ensures the equipment running reliable;
4. Adopt high speed steel blade to cut albums .It is sharp and durable
5. Simple and fashionable appearance.
6. Unique fault self-test function, making your operation more handy



Main technical data:
1- Cut width: 450mm
2- Cut ply: 40mm
3- Press paper system: Manual turntable
4- Push paper system: We use hand-wheel to push paper
5- Electrical power: 750W gear braking
6-Dimensions: 820mm*750mm*1180mm
7-Weight: 110kgs
8- Cutting precision: ±0.5mm



Introduction:
1.Independent press paper patented technology
Completely resolve the inaccurate problem caused by spring pressing paper.
Highly increase the cutting accuracy by set different pressures according to different cutting material
2.Automatic pushing paper function
Automatic pushing paper design, saving taking book time, increasing working efficiency
3. Leading speed, dynamics and cutting thickness
The cutting speed, dynamics and thickness are all increased by 30%. Cutting thickness up to 5CM, 450 series meet more books and paper cutting requirements.
4. High-quality alloy knife optional
High-quality alloy knife is an optional. Grind one time can cut up to 12000 times
5. Blade fine-tuning from the outside of machine patented technology
Provide fast fine tuning technology when blade is so old that cant cut the paper beneath
6. Extensive front table
It can satisfy 460mm paper bisection (safety cover no opening), which can make operation more comfortable and safer.
7. LCD display
Intuitive operation prompts, error alarm clear at a glance, more convenient operation.
8. Numerical control cutting
Cutting size with arithmetic figure set. So the cutting size is clear at a glance.
9. Put and push paper without leakage design
The push paper platform is designed with lumpy surface to avoid paper leakage.
10. Safety
C standard, intellectual protection, two hands operation, transparent safety cover, two way air buttons protection and so on. These make usage safer and more comfortable.



model
max.
cutting szie
min.
cutting szie
cutting
thickness
cutting
precision
pressing
paper
mode
pushing
page
mode
program
display
power
machine net weight
FN-450V+
450mm
50mm
40mm
±0.5mm
automatic
Manual
--
--
220v/110v±10%
50Hz(60Hz)
800W
95kg
Machine Dimension(H*D*W)
760x670x1020mm



JN-450V+ Precision electric paper cutter



JN-450V+ Precision electric paper cutter

JN-450V+ Precision electric paper cutter



JN-450V+ Precision electric paper cutter



JN-450V+ Precision electric paper cutter

JN-450V+ Precision electric paper cutter
