Keeping in mind the varied needs of clients, we are engaged in offering the best quality corrugated steel pipes to our clients. The product is made with high quality steel, brought from reputed retailers of the market. All these products are based on advanced tools and machines in line with global standards. The corrugated steel tower can be availed for the customers at affordable prices.

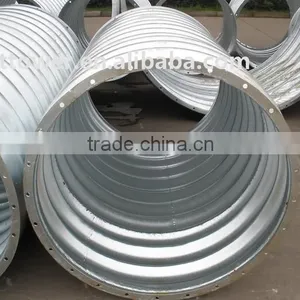

assembly corrugated steel culvert pipes
Corrugated steel pipe also called corrugated pipe culvert or corrugated metal pipe refers to the screw corrugated pipe buried in the road or under the railway culvert. It is circular corrugated pipe that composed of corrugated metal coils or semi-circular corrugated steel sheet.
Steel Pipe Specification
Name of product |
Corrugated culvert tube |
Specification |
INNER DIAMETER: 2000~10000MM |
OUTSIDE DIAMETER: ID+WT+D | |
WALL THICKNESS: 4~7.5MM | |
SPACING WAVE: 150~200MM | |
HEIGHT OF WAVE: 55MM | |
LENGTH: 300~1800MM or according to the customer's request | |
SYSTEM INTERFACE: Overlap connection | |
Technique |
Hot dip galvanized |
|
Product Features
|
Lightweight-can be nested for economical shipping |
High strength and durable | |
Long service life-capable of 100+years | |
Fast installation-economical, versatility, and flexibility | |
Environmentally | |
Application |
1. structral relines, road culverts. 2. storm sewers 3. stormwater detention systems 4. oil or gas transportation 5. fluid pipe 6. line pipe 7. drill pipe 8. boiler pipe 9. other uses we can produce according to customer requirement |
Surface treatment |
galvanized or as per required by customer's |
Package |
plastic caps on both ends, steel bundle or according to the customer's |
Delivery time |
10~30 days after receiving the deposit,depends on the order quantity |
contact |
Tel: 86-15075889268 Skype: april-fang2015 What's App: 86-15075889268 |
Features |
Benefits |
Long service life |
Exceeds 100-years with proper specification that meets all AASHTO and ASTM pipe specifications |
Strength |
Can handle fill heights in excess of 100 feet |
Versatile |
Available in a wide variety of shapes and sizes; diameters from 450mm to 16000 mm |
Flexible |
Forgiving during the rigors of installation and allows for steep slope applications |
Lightweight |
Easier and less expensive to install than concrete pipe |
Its application has been extended to road culverts, underpasses, bridges, water seepage wells, temporary pavement, old bridges and culverts repairing, municipal drainage ditch, municipal utility tunnel, mine conveying pipes and other fields. According to the applications of corrugated steel pipe at home and abroad, it has a good applicable capacity and a promising future due to its features.
