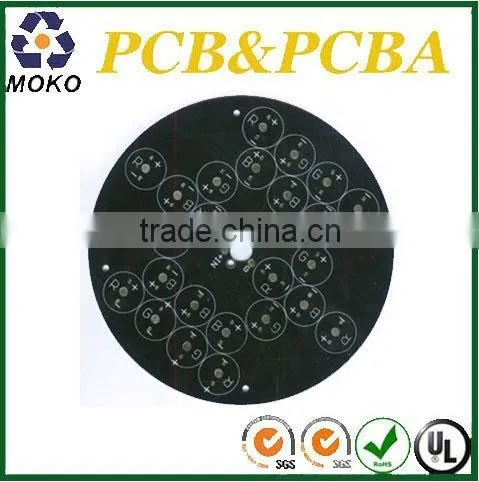

Help CenterAluminum Base Copper-clad Laminate PCB
Related Products
-
Hot Sale Colorful Led Light Circuit Boards(PCB Layout)US$ 0.1 - 3.5MOQ: 1 Piece -
White Single Sided Fpc/alumium Pcb and PcbaUS$ 0.01 - 15MOQ: 1 Piece
-
2 Layer MCPCB Manufacturer for LEDUS$ 0.55 - 3.5MOQ: 1 Square Centimeter
-
Blank Led Board/Outdoor Led Reader BoardUS$ 1 - 100MOQ: 1 Piece
-
Cem-1 94v0 PcbUS$ 1 - 100MOQ: 1 Piece
Specifications

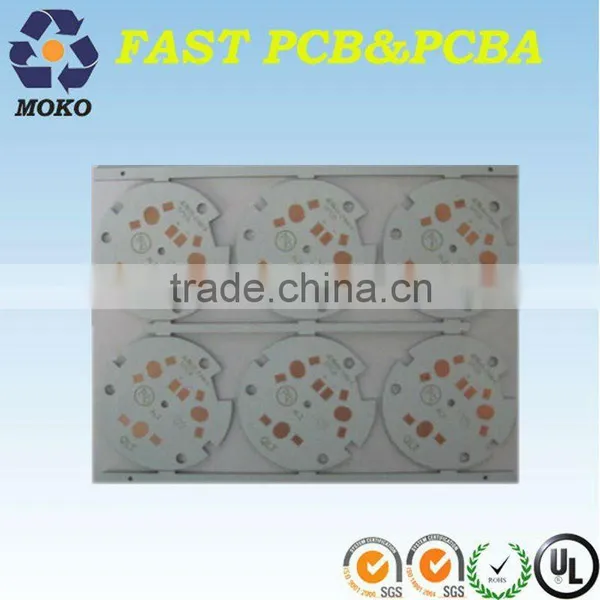

1.aluminum base copper-clad laminate pcb2. pcb clone and pcba
3.4days delivery
4. UL,SGS,ROHS,CE,ISO9001
5. MOQ:1
Welcome to MOKO pcb and pcba manufacturer!!!
-----------------------------------------------------------------------------
Moko, your single point of contact for all of your raw materials, parts, and pcb assembly, also offers:
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
-----------------------------------------------------------------------------
PCB Fabrication
Supply single pcb,Multi-layer FR4 PCB's,MCPCB(Aluminum PCB),FPC,PCBs with UL ROHS Certificate Low
volume,Prototype and mass fabrication are welcome.
Layer | 1,2,4 or 6,upto 12 layers |
Material | FR4,CEM1,CEM3,Hight TG,FR4 Halogen Free,FR1,FR2 |
Order Quantity | 1-500,000 |
Board shape | Rectangular,round,slots,cutouts,complex,irregular |
Board type | Rigid,flexible,rigid-flexible |
Board material | FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc |
Board cutting | Shear,V-score,tab-routed |
Board thickness | 0.2~4.0mm,Flex 0.01~0.25'' |
Copper weight | 1.0,1.5,2.0oz |
Solder mask | Double-sided green LPI,Also support red,white,yellow,blue,black |
Silk screen | Double-sided or single-sided in white,yellow,black,or negative |
Silk screen min line width | 0.006'' or 0.15mm |
Max board dimensions | 20inch*20inch or 500mm*500mm |
Min drill hole diameter | 0.01'',0.25mm.or 10 mils |
Surface finish | HASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc |
Board thickness tolerance | ± 10% |
Copper weight tolerance | ± 0.25oz |
Minimal slot width | 0.12'',3.0mm,or 120mils |
V-score depth | 20-25% of board thickness |
Plated through holes | Yes |
Sink holes | Yes |
Design file format | Gerber RS-274X,274D,Eagle and AutoCAD'S DXF,DWG |
-----------------------------------------------------------------------------
PCB board manufacture and PCBA service:
o PCB board file with parts list provided by customers
o PCB board made, circuit board parts purchased by us
o PCB board with parts assembled
o Electronic testing circuit board or PCBA
o Fast delivery, anti-static package
o RoHS Directive-compliant, lead-free
o One stop service for PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
1.Detailed Terms for Pcb Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement:
1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us
3)Test method for PCBA
-----------------------------------------------------------------------------
Our Superiority
1.High efficiency&Experience
Moko can provide one stop service.Established in 2001, with many years hard-working and constant innovation,we have grown
up into a professional PCB&PCBA manufacturer. We have our own independent research and development and sophisticated quality control system
--------------------------------------------------------------------------------
2.Quality
Our product are manufactured according to the UL/Rohs standards to insure quality assemblies from start to finish. Whether it's a simple custom or not.Product or a complex turnkey production run, We will adhere to the highest quality standards.
--------------------------------------------------------------------------------
3.Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.
--------------------------------------------------------------------------------
4.Service
We can provide 24hours service for you. We pride ourselves on our ability to custom tailor programs
Send Inquiry to This Supplier
