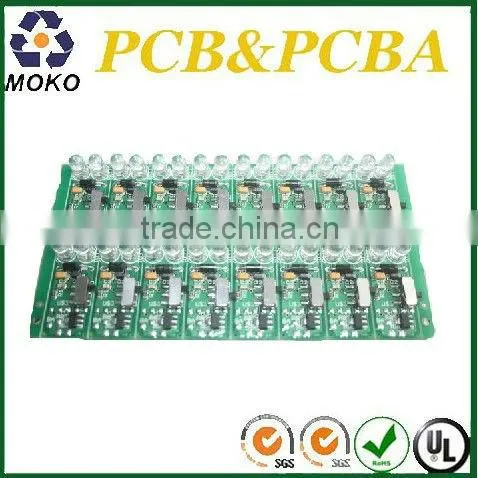

Help CenterBlank Led Board/Outdoor Led Reader Board
Related Products
Specifications
PCB/PCBA manufactureOEM/ODM+100%test
UL,ROHS,CE,SGS
Pcb lead time 7-10days
High quality,fast delivery
· PCB board manufacture and PCBA service:
o PCB board file with parts list provided by customers
o PCB board made, circuit board parts purchased by us
o PCB board with parts assembled
o Electronic testing circuit board or PCBA
o Fast delivery, anti-static package
o RoHS Directive-compliant, lead-free
o One stop service for PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
· Detailed terms for PCB assembly:
o Technical requirement:
§ Professional surface-mounting and through-hole soldering technology
§ Various sizes like 1206, 0805, 0603 components SMT technology
§ ICT (In Circuit Test), FCT (Functional Circuit Test) technology
§ PCB assembly with UL, CE, FCC, RoHS approval
§ Nitrogen gas reflow soldering technology for SMT

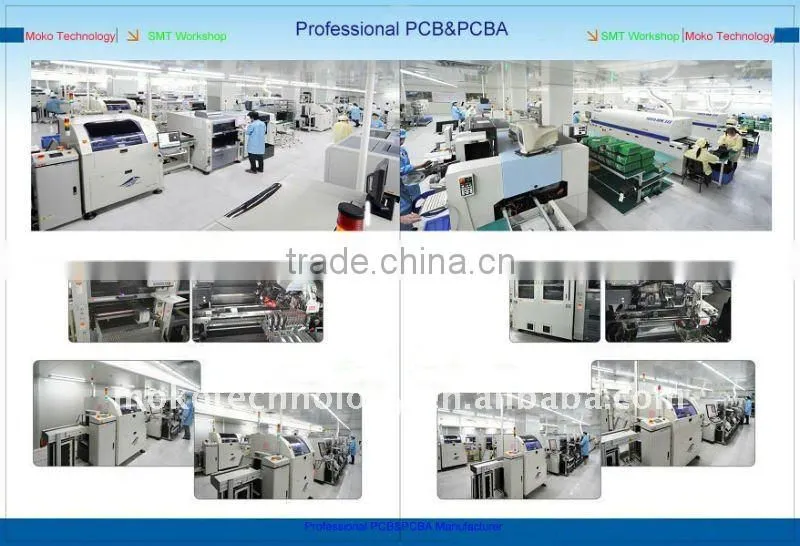

§ High standard SMT and solder assembly line
§ High density interconnected board placement technology capacity
o Quote requirement:
§ Gerber file and Bom list
§ Clear pics of pcba or pcba sample for us
§ Test method for PCBA
o PCB and PCBA specification:
§ Layer: 1 to 28 layers
§ Material: FR-4, CEM-1, CEM-3, Hight TG, FR4 halogen free, FR-1, FR-2
§ Max. finished thickness: 0.4 to 7.0mm (0.016 to 2.75”)
§ Max. finished board side: 500 x 500mm (20 x 20”)
§ Min. drilled hole size: 0.25mm (10mil)
§ Min. line width: 0.13mm (5mil)
§ Min. line spacing: 0.10mm (5mil)
§ Surface finish/treatment: HALS/HALS lead free, chemical tin, chemical gold, immersion gold, plating gold
§ Copper thickness: 0.5 to 3.0 oz
§ Solder mask color: green/black/white/red/blue
§ Inner packing: plastic bag
§ Outer packing: standard carton packing
§ Hole tolerance: PTH: ±0.076, NTPH: ±0.05
§ Certificate: UL, ISO 9001, ISO 14001, RoHS
§ Profiling punching: routing, V-cut, beveling
§ Providing OEM service to all sorts of printed circuit board assembly
