Help Center4 Layer Pcb/hal Finishing
Related Products
Specifications

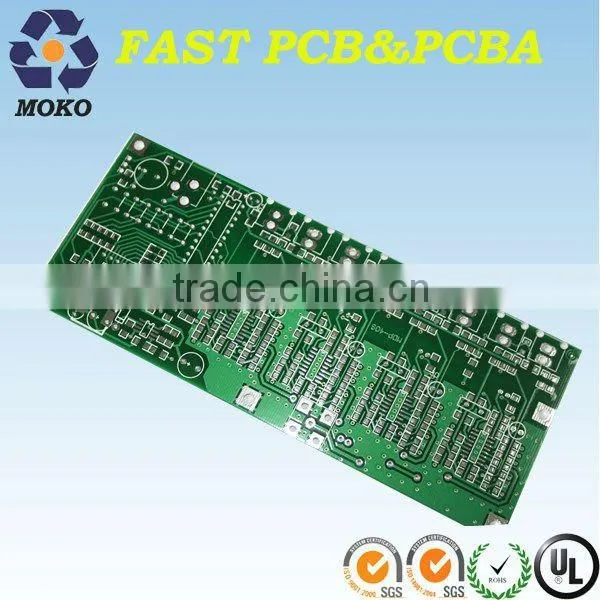

1.4 layers printed circuit board pcb2. pcb clone and pcba
3. 1-16 layers
4. high quality
5. MOQ:1pcs
Moko, your single point of contact for all of your raw materials, parts, and pcb assembly, also offers:
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
PCB Fabrication
MOKO supply with single and multi-layer FR4 PCB's,MCPCB(Aluminum PCB),FPC,PCBs with UL ROHS
Certifications Low volume,Prototype and mass fabrication are welcome.All PCBs are delivery in time.
Technical capabilities
Layer |
1,2,4 or 6,upto 12 layers |
Material |
FR4,CEM1,CEM3,Hight TG,FR4 Halogen Free,FR1,FR2 |
Order Quantity |
1-500,000 |
Board shape |
Rectangular,round,slots,cutouts,complex,irregular |
Board type |
Rigid,flexible,rigid-flexible |
Board material |
FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc |
Board cutting |
Shear,V-score,tab-routed |
Board thickness |
0.2~4.0mm,Flex 0.01~0.25'' |
Copper weight |
1.0,1.5,2.0oz |
Solder mask |
Double-sided green LPI,Also support red,white,yellow,blue,black |
Silk screen |
Double-sided or single-sided in white,yellow,black,or negative |
Silk screen min line width |
0.006'' or 0.15mm |
Max board dimensions |
20inch*20inch or 500mm*500mm |
Min drill hole diameter |
0.01'',0.25mm.or 10 mils |
Surface finish |
HASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc |
Board thickness tolerance |
± 10% |
Copper weight tolerance |
± 0.25oz |
Minimal slot width |
0.12'',3.0mm,or 120mils |
V-score depth |
20-25% of board thickness |
Plated through holes |
Yes |
Sink holes |
Yes |
Design file format |
Gerber RS-274X,274D,Eagle and AutoCAD'S DXF,DWG |
PCB Lead time
Single,Double sided |
Four layer |
Six layer |
Above eight layer |
HDI |
|
Sample lead time(Normal) |
5-6 |
6-7 |
7-8 |
10-12 |
15-20 |
Sample lead time(Fastest) |
48 to 72 hours |
5 |
6 |
6-7 |
12 |
|
Mass production lead time(First batch) |
7-9 |
10-12 |
13-15 |
16 |
20 |
FAQ:
1.Q:How can i make inquiry?
A:Send us gerber files.We will quote you within 4 hours.If any questions,we will email you in 2 hour.
2.Q:How long has your company been?
A:Our company established in the year 2001,we're focus on PCB and PCBA service with more than 10 years.The factory has gotten ISO9001:2008,ISTO14001:2004 certificates.With 300 experienced staff in our factory.
3.Q:How many SMT line do you have in your factory?
A:For assembly,we have 8 high-speed SMT lines from Yamaha and Sony,to meet customers' need.
4.Q:What's your products application?
A:Household /Appliance/Medical Products/Industrial products/Consumer electronics
5.Q:What's your service scope?
A:1.Fast PCB fabrication of samples and mass production;Available on FR4 and Aluminum
2.Electronic components purchasing service
3.PCB Assembly service:Available on SMT,BGA,DIP
4.PCBA Test service
5.Stencil and Enclosure service
6.Q:How can i receive a quotation?
A:Send us gerber files.We will quote you within 4 hours.If any questions,we will email you in 2 hour.If you don't have pcb design file,you can contact us and send us samples.We will quote you once we received them.
7.Q:If all PCBs will be tested before delivery?
A:Yes,we ensure that each piece of PCB use film test or electronic test.
8.Q:What files do you use in bare PCB FABRICATION?
A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG
9.Q:How can I know the processing about my PCB order?
A:Each customer will have a sale to contact with you.MOKO working hours:AM9:00-PM:600(Beijing time) from Monday to Friday,we will reply your email in two hours in our working time.And you also can contact with our cell phone in urgent.
Factory pcb&pcba manufacture line
Our Superiority
1.High efficiency&Experience
We can provide one stop service.Established in 2004, with many years hard-working and constant innovation,we have grown up into a professional PCB&PCBA manufacturer. We have our own independent research and development and sophisticated quality control system
--------------------------------------------------------------------------------
2.Quality
Our product are manufactured according to the UL/Rohs standards to insure quality assemblies from start to finish. Whether it's a simple custom or not.Product or a complex turnkey production run, We will adhere to the highest quality standards.
--------------------------------------------------------------------------------
3.Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.
--------------------------------------------------------------------------------
4.Service
We can provide 24hours service for you. We pride ourselves on our ability to custom tailor programs around our customers' needs.We take time to listen to your unique business needs and then set out to surpass them.
