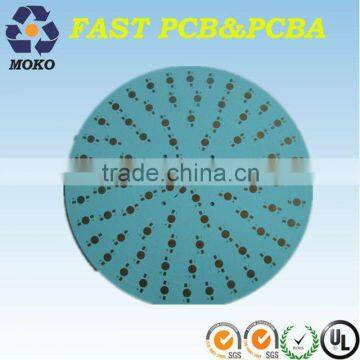

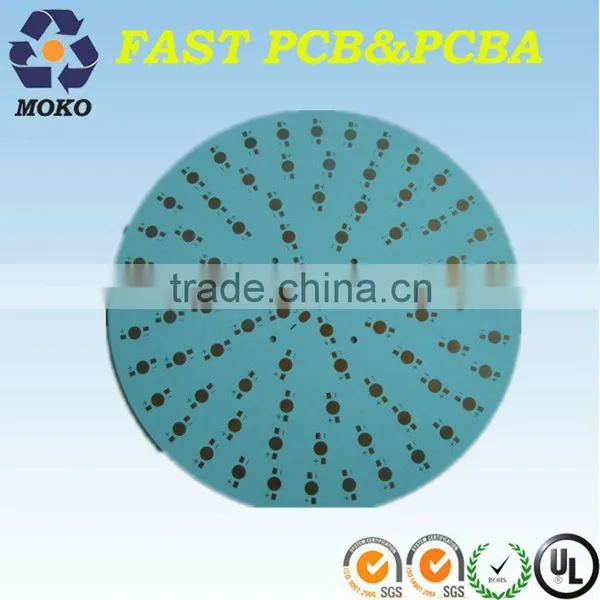

Help Center2oz Copper White Useful Aluminium LED PCB OEM
Related Products
-
2oz Copper White Useful Aluminium LED PCB OEMUS$ 0.1 - 3.5MOQ: 1 Piece -
Aluminum Base Copper-clad Laminate PCBUS$ 0.1 - 3.5MOQ: 1 Piece
-
Hot Sale Colorful Led Light Circuit Boards(PCB Layout)US$ 0.1 - 3.5MOQ: 1 Piece
-
White Single Sided Fpc/alumium Pcb and PcbaUS$ 0.01 - 15MOQ: 1 Piece
-
2 Layer MCPCB Manufacturer for LEDUS$ 0.55 - 3.5MOQ: 1 Square Centimeter
Specifications
1.2oz copper white useful aluminium led pcb oem2.pcb and pcba service
3.UL CE AOI X-ray test
4.high quality,fast delive
Welcome to MOKO pcb and pcba manufacturer!!!
Moko, your single point of contact for all of your raw materials, parts, and pcb assembly, also offers:
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
PCB Fabrication Technical capabilities
Layer |
1,2,4 or 6,upto 12 layers |
Material |
FR4,CEM1,CEM3,Hight TG,FR4 Halogen Free,FR1,FR2 |
Order Quantity |
1-500,000 |
Board shape |
Rectangular,round,slots,cutouts,complex,irregular |
Board type |
Rigid,flexible,rigid-flexible |
Board material |
FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc |
Board cutting |
Shear,V-score,tab-routed |
Board thickness |
0.2~4.0mm,Flex 0.01~0.25'' |
Copper weight |
1.0,1.5,2.0oz |
Solder mask |
Double-sided green LPI,Also support red,white,yellow,blue,black |
Silk screen |
Double-sided or single-sided in white,yellow,black,or negative |
Silk screen min line width |
0.006'' or 0.15mm |
Max board dimensions |
20inch*20inch or 500mm*500mm |
Min drill hole diameter |
0.01'',0.25mm.or 10 mils |
Surface finish |
HASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc |
Board thickness tolerance |
± 10% |
Copper weight tolerance |
± 0.25oz |
Minimal slot width |
0.12'',3.0mm,or 120mils |
V-score depth |
20-25% of board thickness |
Plated through holes |
Yes |
Sink holes |
Yes |
Design file format |
Gerber RS-274X,274D,Eagle and AutoCAD'S DXF,DWG |
PCB Assembly Capabilities
Quantity |
Prototype&Low Volume PCB Assembly,from 1 Board to 250,is for specialty,but we can handle orders up to 1000 |
Type of Assembly |
SMT and Thru-hole |
Solder Type |
Water Soluble Solder Paste,Leaded and Lead-Free |
Components |
Passives Down to 0201 Size BGA and VFBGA Leadless Chip Carries/CSP Double-Sided SMT Assembly Fine Pitch to 08 Mils BGA Repair and Reball Part Removal and Replacement-Same Day Service |
Bare Board Size |
Smallest:0.25x0.25 Inches Largest:20x20 Inches |
File Formats |
Bill of Materials Gerber Files Pick-N-Place File(XYRS) |
Type of Service |
Turn-Key,Partial Turn-Key or Consignment |
Component Packaging |
Cut Tape Tube Reels Loose Parts |
Turn Time |
Same Day Service to 15 day service |
Testing |
Flying Probe test XRAY Inspection AOI Test |
PCB and PCBA Lead time
Single,Double sided |
Four layer |
Six layer |
Above eight layer |
HDI |
|
Sample lead time(Normal) |
5-6 |
6-7 |
7-8 |
10-12 |
15-20 |
Sample lead time(Fastest) |
48 to 72 hours |
5 |
6 |
6-7 |
12 |
|
Mass production lead time(First batch) |
7-9 |
10-12 |
13-15 |
16 |
20 |
PCB Assembly |
PCB Fab+Components Sourcing+PCBA=15 days
|
PCB board manufacture and PCBA service:
o PCB board file with parts list provided by customers
o PCB board made, circuit board parts purchased by us
o PCB board with parts assembled
o Electronic testing circuit board or PCBA
o Fast delivery, anti-static package
o RoHS Directive-compliant, lead-free
o One stop service for PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
1.Detailed Terms for Pcb Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement:
1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us
3)Test method for PCBA
