BAE Wall Mounted Enclosure

BAE Wall Mounted Enclosure thumbnail-1
BAE Wall Mounted Enclosure photo-1
US$ 97 - 246 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
KAIWEI
Model Number:
BAE2030120304
Contact Supplier Request Quote Chat Now
Shanghai Kaiwei Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name KAIWEI
Model Number BAE2030120304
Protection Level Other, IP56
Type Control Box
External Size 200mm*300mm*120mm

Specifications

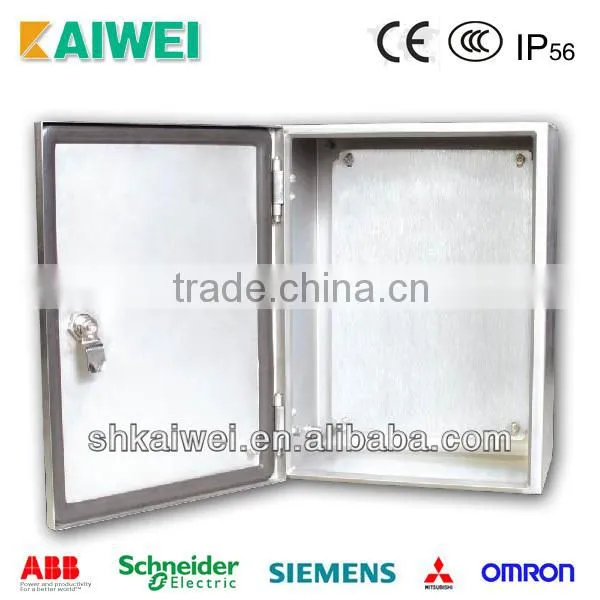

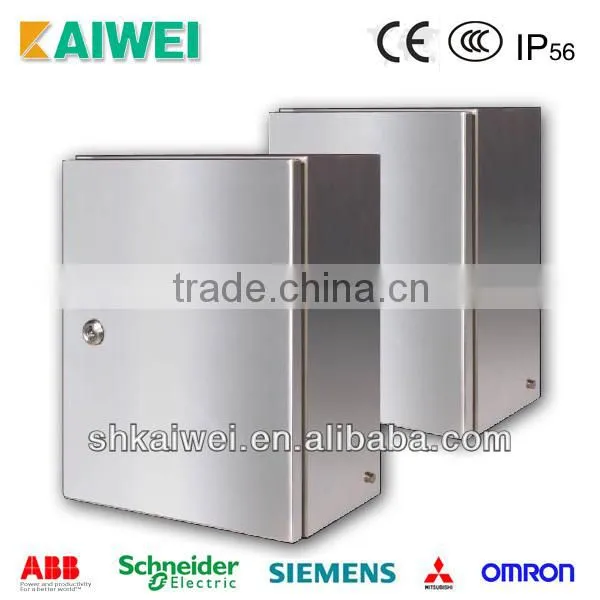

BAE wall mounted enclosure
1.Multiple Protection grooves can prevent the entry of dirt or water
2. IP56


Product Description

 BAE  wall mounted enclosure

1. Material:  SUS304(Other material can be optional)

2. Surface Treatment:  Wire Drawing,Mounting Plate is Galvanized

3. Class of Protection: IP56(According to GB4205-1993)   PU Foaming Sealing



Item Name: BAE  wall mounted enclosure
Material: SUS304(Other material can be optional)
Thickness: Box Body:1.5mm Door Plate:2.0mm                                         Mounting Plate:2.5mm
Standard Configuration: Box Body,Door Plate,Sealing Strip,Grounding Sets,Mounting Plate,Door Lock
Surface Treatment: Wire Drawing,Mounting Plate is Galvanized
Class of Protection: IP56(According to GB4205-1993)                                                   PU Foaming Sealing
MOQ: 100 PCS
Supply Ability: 10000 PCS/Month
Delivery Time: 10-15 days
Remark: Special Demands Can Be Customized




No.
Order No.
Width
Height
Depth
1 BAE2030120304 200 300 120
2 BAE2030155304 200 300 155
3 BAE2030210304 200 300 210
4 BAE3030210304 300 300 210
5 BAE3040120304 300 400 120
6 BAE3040155304 300 400 155
7 BAE3040210304 300 400 210
8 BAE3830155304 380 300 155
9 BAE3830210304 380 300 210
10 BAE3838210304 380 380 210
11 BAE3860210304 380 600 210
12 BAE4040155304 400 400 155
13 BAE4050210304 400 500 210
14 BAE5050210304 500 500 210
15 BAE5050300304 500 500 300
16 BAE5060210304 500 600 210
17 BAE6038210304 600 380 210
18 BAE6038350304 600 380 350
19 BAE6060210304 600 600 210
20 BAE6060250304 600 600 250
21 BAE6060300304 600 600 300
22 BAE6060350304 600 600 350
23 BAE6076210304 600 760 210
24 BAE6076250304 600 760 250
25 BAE6076350304 600 760 350





 Details:





Main advantage of BAE BAE  wall mounted enclosure:

  1. PU foaming sealing strip ensures a protection class of IP56 to box body.

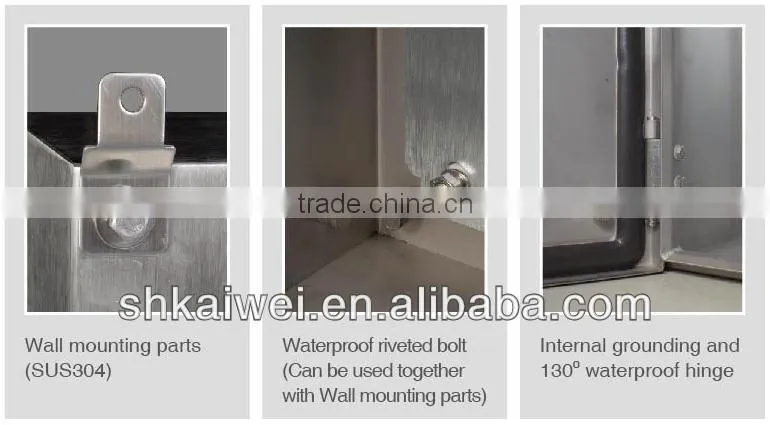

  2. Galvanized mounting plate can also be used for wiring outside the box.
  3. Multiple Protection grooves are designed at the box opening for reinforcement, which can prevent the entry of dirt or water when the door is opened.
  4. Special SUS304 stainless steel lock system with double-teeth cylinder shows high quality and ensures universality.
  5. Surface wire drawing treatment (sand blasting is available in high-class box).

Equipment:

 Office:

Certificates:

...
