US$ 240 - 940
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
KAIWEI
Model Number:
PC608040002
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FR Non-standard Network EnclosureUS$ 273 - 1,075MOQ: 1 Set -
BPC Electrical Instrument EnclosuresUS$ 717 - 2,822MOQ: 1 Set
-
PS Combined CabinetUS$ 376 - 619MOQ: 1 Set
-
TE Indoor and Outdoor Network EnclosureUS$ 615 - 1,158MOQ: 1 Set
-
Mitsubishi OEM Vertical Metal PLC Control CABINETUS$ 1,027 - 3,087MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
KAIWEI
Model Number
PC608040002
Protection Level
IP54
Type
Network Cabinet
External Size
600mm*800mm*400mm
Specifications
PC electronic & instrument enclosures1.Humanized design keyboard and mouse system reveals high quality
2.safety, reliability
Product Description

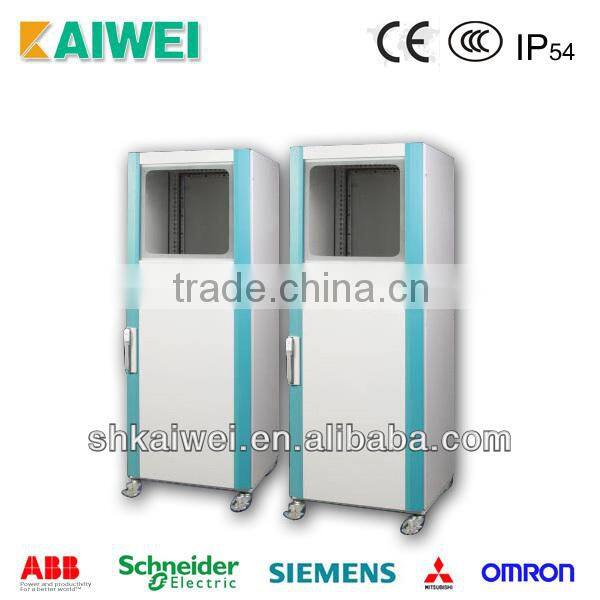

PC electronic & instrument enclosures
1. Material: Cold Rolled Steel Sheet and Aluminum Alloy Section
2. Surface Treatment: Etch Primer for Cabinet Body,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,The Color of Decoration Strip is RAL5018.The Color of Laminated Plate is The Same as Cabinet Body.
3. Class of Protection: IP54(According to GB4205-1993)
| Item Name: | PC electronic & instrument enclosures | |||||||
| Material: | Cold Rolled Steel Sheet and Aluminum Alloy Section | |||||||
| Thickness: | Decoration Strip:Aluminum Alloy Frame:9-fold Sections 1.5mm Door Plate:2.0mm Laminated Plate:2.0mm | |||||||

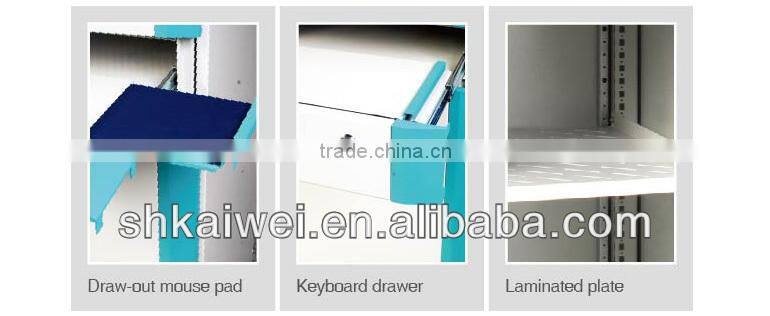

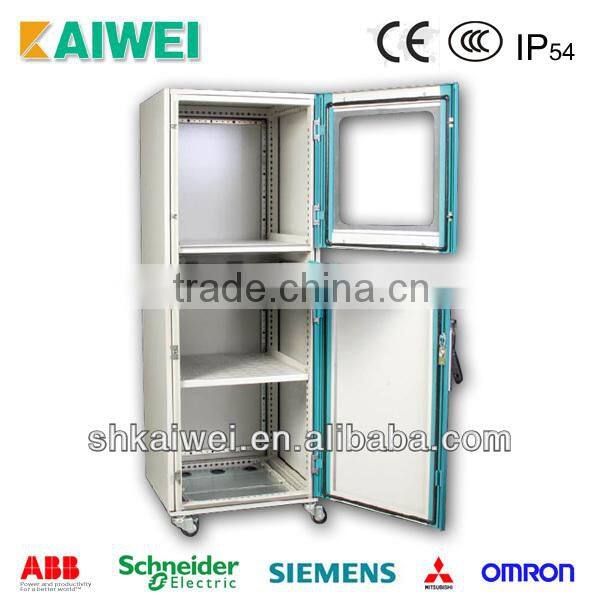

| Standard Configuration: | Cabinet Body,Back Plate,Front Upper Glass Door,Front Lower Steel Door,Keyboard Drawer,Sealing Strip,Laminated Plate,Door Lock and Casters(Optional) | |||||||
| Surface Treatment: | Etch Primer for Cabinet Body,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,The Color of Decoration Strip is RAL5018.The Color of Laminated Plate is The Same as Cabinet Body. | |||||||
| Class of Protection: | IP54(According to GB4205-1993) | |||||||
| MOQ: | 100 PCS | |||||||
| Supply Ability: | 10000 PCS/Month | |||||||
| Delivery Time: | 10-15 days | |||||||
| Remark: | Special Demands Can Be Customized | |||||||
No. | Order No.(RAL7032) | Order No.(RAL7035) | Width | Height | Depth |
| 1 | PC608040002 | PC608040005 | 600 | 800 | 400 |
| 2 | PC608050002 | PC608050005 | 600 | 800 | 500 |
| 3 | PC608060002 | PC608060005 | 600 | 800 | 600 |
| 4 | PC601050002 | PC601050005 | 600 | 1000 | 500 |
| 5 | PC601060002 | PC601060005 | 600 | 1000 | 600 |
| 6 | PC601070002 | PC601070005 | 600 | 1000 | 700 |
| 7 | PC601080002 | PC601080005 | 600 | 1000 | 800 |
| 8 | PC601260002 | PC601260005 | 600 | 1200 | 600 |
| 9 | PC601270002 | PC601270005 | 600 | 1200 | 700 |
| 10 | PC601280002 | PC601280005 | 600 | 1200 | 800 |
| 11 | PC801260002 | PC801260005 | 800 | 1200 | 600 |
| 12 | PC601460002 | PC601460005 | 600 | 1400 | 600 |
| 13 | PC601470002 | PC601470005 | 600 | 1400 | 700 |
| 14 | PC601480002 | PC601480005 | 600 | 1400 | 800 |
| 15 | PC801460002 | PC801460005 | 800 | 1400 | 600 |
| 16 | PC601660002 | PC601660005 | 600 | 1600 | 600 |
| 17 | PC601680002 | PC601680005 | 600 | 1600 | 800 |
| 18 | PC801660002 | PC801660005 | 800 | 1600 | 600 |
| 19 | PC801680002 | PC801680005 | 800 | 1600 | 800 |
| 20 | PC601860002 | PC601860005 | 600 | 1800 | 600 |
| 21 | PC601880002 | PC601880005 | 600 | 1800 | 800 |
| 22 | PC801860002 | PC801860005 | 800 | 1800 | 600 |
| 23 | PC801880002 | PC801880005 | 800 | 1800 | 800 |
| 24 | PC602060002 | PC602060005 | 600 | 2000 | 600 |
| 25 | PC602080002 | PC602080005 | 600 | 2000 | 800 |
| 26 | PC802060002 | PC802060005 | 800 | 2000 | 600 |
| 27 | PC802080002 | PC802080005 | 800 | 2000 | 800 |
| 28 | PC602260002 | PC602260005 | 600 | 2200 | 600 |
| 29 | PC602280002 | PC602280005 | 600 | 2200 | 800 |
| 30 | PC802260002 | PC802260005 | 800 | 2200 | 600 |
| 31 | PC802280002 | PC802280005 | 800 | 2200 | 800 |
Details:
Main advantage of PC electronic & instrument enclosures:
- Main body in RAL7035 fitted with decoration strips in RAL5018 presents high-end quality of the cabinet body.
- Surveillance area is equipped with non-reflect safety glass to ensure safety and reliability.
- Frame made of nine-fold section ensures flexibility and convenience of internal installation.
- The front lower door is arranged with a luxury handle lock and the access door arranged with a standard flat lock, reasonably embodying humanized design of the cabinet body.
- Humanized design of keyboard and mouse system reveals high quality of the cabinet body.
