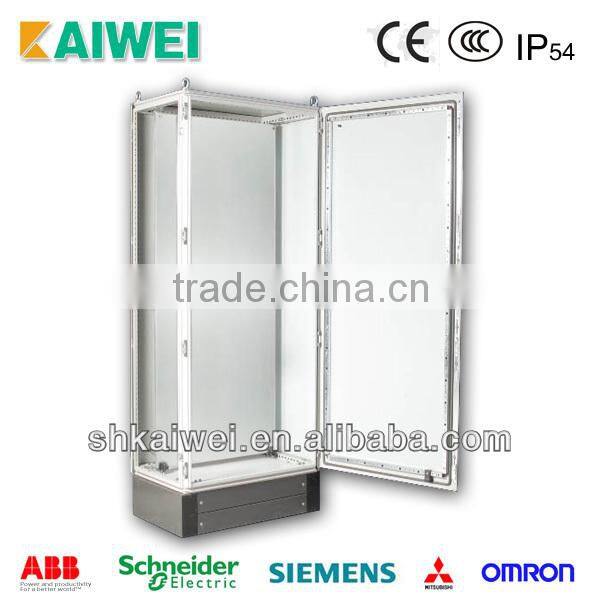

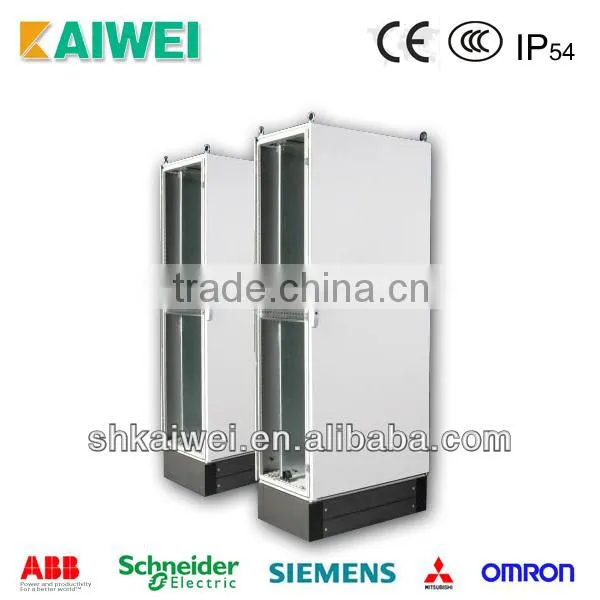

TS Optical Distribution Cabinet
US$ 470 - 772
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
KAIWEI
Model Number:
TS601840002
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
KAIWEI
Model Number
TS601840002
Protection Level
IP54
Type
Other, Control cabinet
External Size
600mm*1800mm*400mm
Specifications
TS optical distribution cabinet1.Special section design thoroughly overturns the concept of conventional cabinet
Product Description
1. Material: Cold Rolled Steel Sheet
2. Surface Treatment: Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.
3. Class of Protection: IP54(According to GB4205-1993)
| Item Name: | TS optical distribution cabinet | |||||||
| Material: | Cold Rolled Steel Sheet | |||||||
| Thickness: | Frame:15-fold Sections 1.5mm Door Plate:2.0mm Back Plate and Side Plate:1.5mm Mounting Plate:2.5mm(3.0mm optional) | |||||||
| Standard Configuration: | Front Door,Back Plate,Mounting Plate,Cabinet Body,Door Lock,Sealing Strip,Side Plate(optional) | |||||||
| Surface Treatment: | Etch Primer for Cabinet Body,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized. | |||||||
| Class of Protection: | IP54(According to GB4205-1993) | |||||||
| MOQ: | 100 PCS | |||||||
| Supply Ability: | 10000 PCS/Month | |||||||
| Delivery Time: | 10-15 days | |||||||
| Remark: | Special Demands Can Be Customized | |||||||
No. | Order number of cabinet body(RAL7032) | Order number of side plate(RAL7032) | Order number of cabinet body(RAL7035) | Order number of side plate(RAL7035) | Width | Height | Depth |
| 1 | TS601840002 | TS1840002 | TS601840005 | TS1840005 | 600 | 1800 | 400 |
| 2 | TS801840002 | TS1840002 | TS801850005 | TS1850005 | 800 | 1800 | 400 |
| 3 | TS101840002 | TS1840002 | TS101840005 | TS1840005 | 1000 | 1800 | 400 |
| 4 | TS121840002 | TS1840002 | TS121840005 | TS1840005 | 1200 | 1800 | 400 |
| 5 | TS601850002 | TS1850002 | TS601850005 | TS1850005 | 600 | 1800 | 500 |
| 6 | TS801850002 | TS1850002 | TS801850005 | TS1850005 | 800 | 1800 | 500 |
| 7 | TS121850002 | TS1850002 | TS121850005 | TS1850005 | 1200 | 1800 | 500 |
| 8 | TS601860002 | TS1860002 | TS601860005 | TS1860005 | 600 | 1800 | 600 |
| 9 | TS801860002 | TS1860002 | TS801860005 | TS1860005 | 800 | 1800 | 600 |
| 10 | TS121860002 | TS1860002 | TS121860005 | TS1860005 | 1200 | 1800 | 600 |
| 11 | TS602040002 | TS2040002 | TS602040005 | TS2040005 | 600 | 2000 | 400 |
| 12 | TS802040002 | TS2040002 | TS802040005 | TS2040005 | 800 | 2000 | 400 |
| 13 | TS122040002 | TS2040002 | TS122040005 | TS2040005 | 1200 | 2000 | 400 |
| 14 | TS602050002 | TS2050002 | TS602050005 | TS2050005 | 600 | 2000 | 500 |
| 15 | TS802050002 | TS2050002 | TS802050005 | TS2050005 | 800 | 2000 | 500 |
| 16 | TS102050002 | TS2050002 | TS102050005 | TS2050005 | 1000 | 2000 | 500 |
| 17 | TS122050002 | TS2050002 | TS122050005 | TS2050005 | 1200 | 2000 | 500 |
| 18 | TS602060002 | TS2060002 | TS602060005 | TS2060005 | 600 | 2000 | 600 |
| 19 | TS802060002 | TS2060002 | TS802060005 | TS2060005 | 800 | 2000 | 600 |
| 20 | TS102060002 | TS2060002 | TS102060005 | TS2060005 | 1000 | 2000 | 600 |
| 21 | TS122060002 | TS2060002 | TS122060005 | TS2060005 | 1200 | 2000 | 600 |
| 22 | TS602080002 | TS2080002 | TS602080005 | TS2080005 | 600 | 2000 | 800 |
| 23 | TS802080002 | TS2080002 | TS802080005 | TS2080005 | 800 | 2000 | 800 |
| 24 | TS122080002 | TS2080002 | TS122080005 | TS2080005 | 1200 | 2000 | 800 |
| 25 | TS602260002 | TS2260002 | TS602260005 | TS2260005 | 600 | 2200 | 600 |
| 26 | TS802260002 | TS2260002 | TS802260005 | TS2260005 | 800 | 2200 | 600 |
| 27 | TS122260002 | TS2260002 | TS122260005 | TS2260005 | 1200 | 2200 | 600 |
Details:

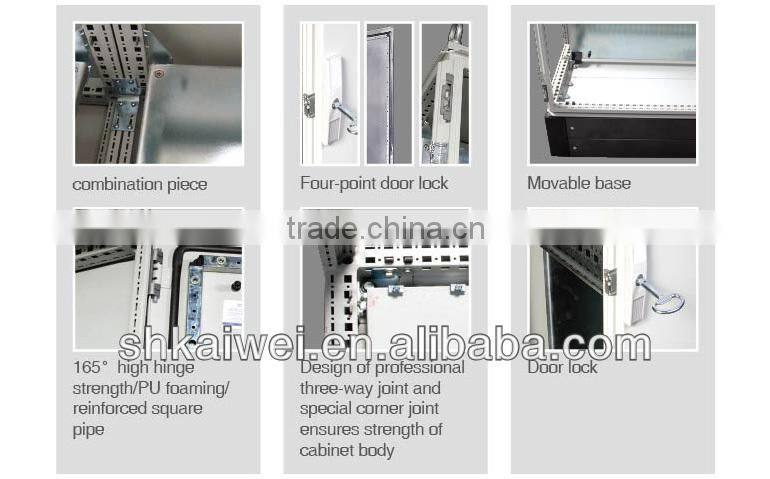

Main advantage of TS optical distribution cabinet :
- World-leading fifteen-fold section fitted with specially fabricated corner connection elements to ensure universality and high strength of the cabinet body.
- Special section design thoroughly overturns the concept of conventional cabinet, realizing left and right doors and front and back cabinet combination.
- Professional four-point door lock system and PU foaming technology completely resolve sealing problems of the cabinet body.
- The top plate is removable and the side plate is demountable, ensuring convenient and fast work.
- Special developed unique movable base system is not only elegant but also easy to install and fix in the field.
