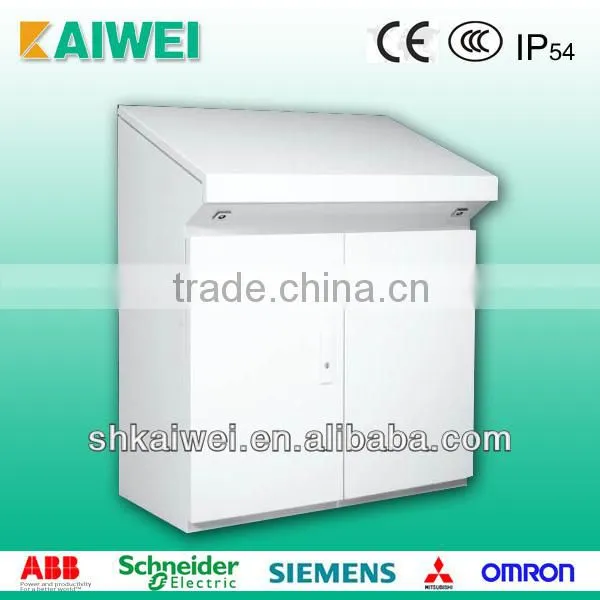

AP Control System
US$ 318 - 590
MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
KAIWEI
Model Number:
APXM60964002
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
KAIWEI
Model Number
APXM60964002
Protection Level
IP54
Type
Other, Operation Console
External Size
600mm*960mm*400/480mm
Specifications
1.Easy to install and convenient for dismantlement of the door plate2.PU foaming technology ensures tightness of console body
AP control system
1. Material: Cold Rolled Steel Sheet
2. Surface Treatment: Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.
3. Class of Protection: IP54(According to GB4205-1993)
| Item Name: | AP control system | |||||||
| Material: | Cold Rolled Steel Sheet | |||||||
| Thickness: | Cabinet Body 2.0mm Door Plate:2.0mm Operation Console Board:2.0mm Mounting Plate:2.5mm | |||||||
| Standard Configuration: | Front Single(dual)Door,Operation Console Board,Cabinet Body,Mounting Plate,Door Lock,Sealing Strip,and Hydraulic Support | |||||||
| Surface Treatment: | Etch Primer for Cabinet Body,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized. | |||||||
| Class of Protection: | IP54(According to GB4205-1993) | |||||||
| MOQ: | 100 PCS | |||||||
| Supply Ability: | 10000 PCS/Month | |||||||
| Delivery Time: | 10-15 days | |||||||
| Remark: | Special Demands Can Be Customized | |||||||
|

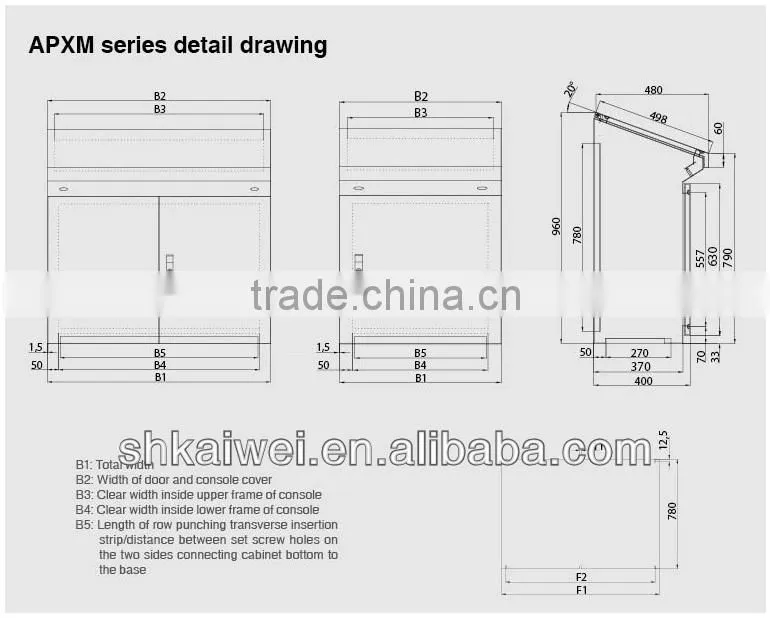

No. |
Order No.(RAL7032) |
Order No.(RAL7035) |
Width |
Height |
Depth |
| 1 | APXM609640002 | APXM609640005 | 600 | 960 | 400/480 |
| 2 | APXM809640002 | APXM809640005 | 800 | 960 | 400/480 |
| 3 | APXM109640002 | APXM109640005 | 1000 | 960 | 400/480 |
| 4 | APXM129640002 | APXM129640005 | 1200 | 960 | 400/480 |
Details:
Main advantage of AP control system:
- Humanized structure design is elegant and decent.

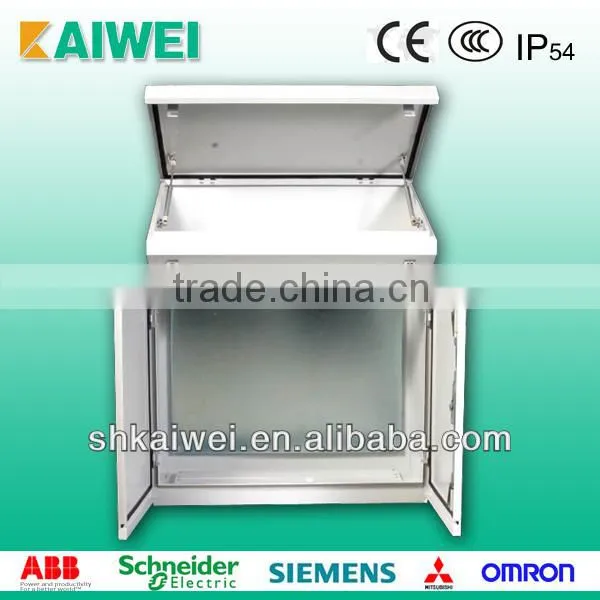

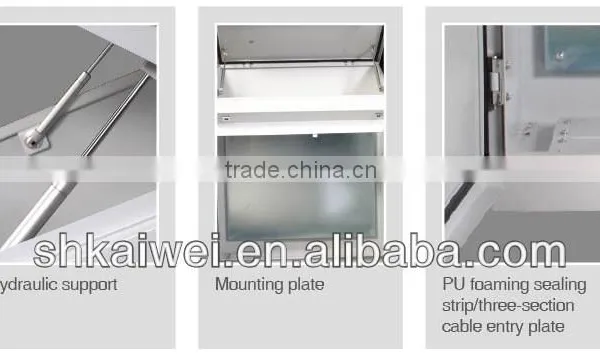

- Operating console board can be raised and fixed with luxury hydraulic supports, reflecting high-end quality and humanization of the console body.
- Ground clearance of front single(dual) door is sufficient, about 25mm, ensuring smoothness and convenience of door opening.
- Blind hinge, incapable of protruding into door frame and cabinet, easy to install and convenient for dismantlement of the door plate.
- PU foaming technology ensures tightness of console body.
Equipment:
Office:
Certificates:
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2004
Factory Size
10,000-30,000 square meters
Total Employees
101 - 200 People
