ES Control Equipment

FOB Price

US$ 360 - 770 / Set

100 Sets(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	KAIWEI
Model Number	ES601640002	Protection Level	IP55
Type	Other, Control Cabinet	External Size	600mm1600mm400mm

Product Description

Specifications

1.Unique main body frame integrally welded with 5-fold section ensures high strength and IP56
2.Easy disassembly and transport

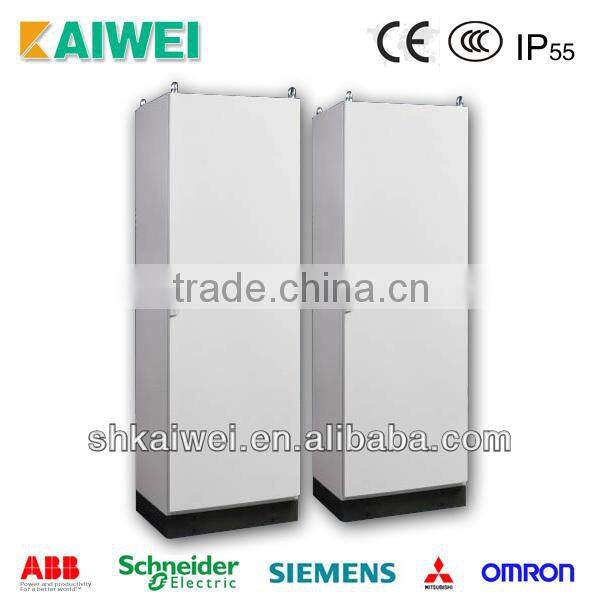

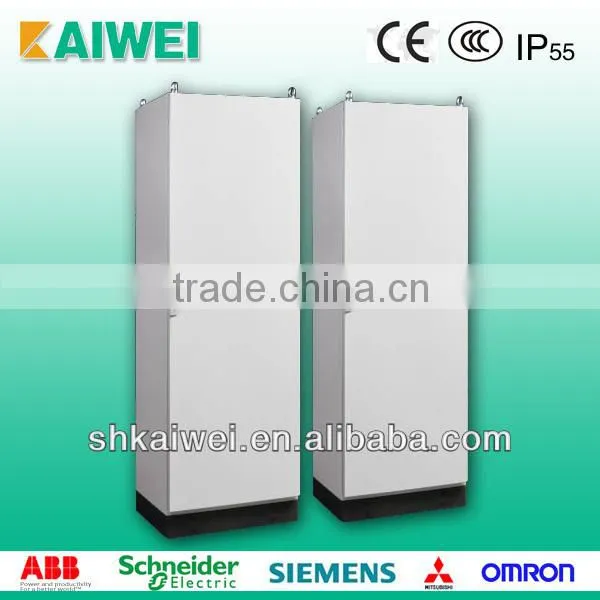

ES control equipment

1. Material: Cold Rolled Steel Sheet

2. Surface Treatment: Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.

3. Class of Protection: IP55(According to GB4205-1993)

Item Name:		ES control equipment
Material:		Cold Rolled Steel Sheet
Thickness:		Frame:5-fold Sections 1.5mm Door Plate:2.0mm Back Plate:1.5mm Mounting Plate:2.5mm(3.0mm optional)

Standard Configuration:		Front Door,Back Plate,Mounting Plate,Cabinet Body,Door Lock,Sealing Strip

Surface Treatment:		Etch Primer for Cabinet Body,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.


Class of Protection:		IP55(According to GB4205-1993)

MOQ:		100 PCS
Supply Ability:		10000 PCS/Month
Delivery Time:		10-15 days
Remark:		Special Demands Can Be Customized

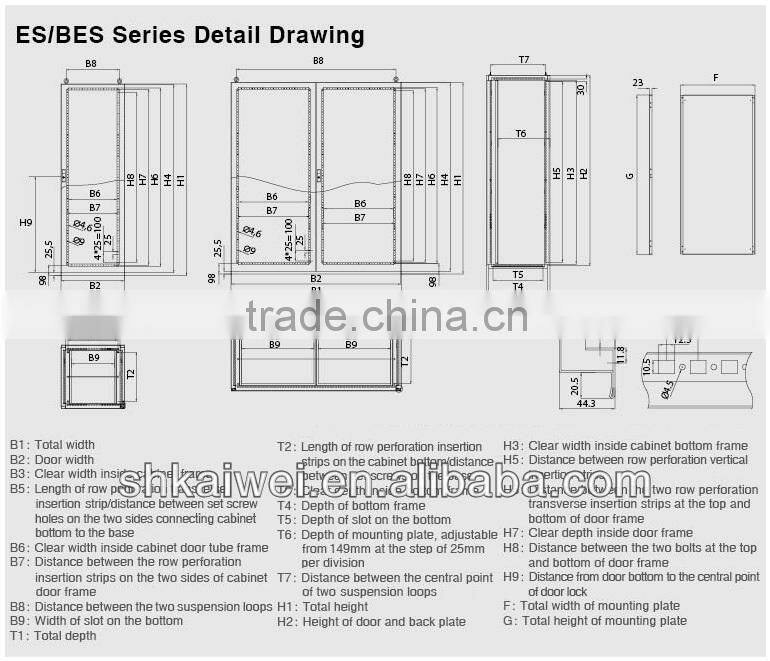

No.	Order No.(RAL7032)	Order No.(RAL7035)	Width	Height	Depth
No.	Order No.(RAL7032)	Order No.(RAL7035)	Width	Height	Depth
1	ES601640002	ES601640005	600	1600	400
2	ES601650002	ES601650005	600	1600	500
3	ES801650002	ES801650005	800	1600	500
4	ES121650002	ES121650005	1200	1600	500
5	ES601840002	ES601840005	600	1800	400
6	ES601850002	ES601850005	600	1800	500
7	ES801840002	ES801840005	800	1800	400
8	ES801850002	ES801850005	800	1800	500
9	ES101840002	ES101840005	1000	1800	400
10	ES121840002	ES121840005	1200	1800	400
11	ES161840002	ES161840005	1600	1800	400
12	ES602050002	ES602050005	600	2000	500
13	ES602060002	ES602060005	600	2000	600
14	ES802060002	ES802060005	800	2000	500
15	ES802060002	ES802060005	800	2000	600
16	ES102050002	ES102050005	1000	2000	500
17	ES102060002	ES102060005	1000	2000	600
18	ES122050002	ES122050005	1200	2000	500
19	ES122060002	ES122060005	1200	2000	600
20	ES122080002	ES122080005	1200	2000	800
21	ES182050002	ES182050005	1800	2000	500
22	ES602250002	ES602250005	600	2200	500
23	ES602260002	ES602260005	600	2200	600
24	ES802260002	ES802260005	800	2200	600
25	ES102250002	ES102250005	1000	2200	500
26	ES102260002	ES102260005	1000	2200	600
27	ES122260002	ES122260005	1200	2200	600
28	ES122280002	ES122280005	1200	2200	800
29	ES802050002	ES802050005	800	2000	500
30	ES802250002	ES802250005	800	2200	500
31	ES102080002	ES102080005	1000	2000	800
32	ES122250002	ES122250005	1200	2200	500
33	ES802280002	ES802280005	800	2200	800
34	ES102280002	ES102280005	1000	2200	800

Details:

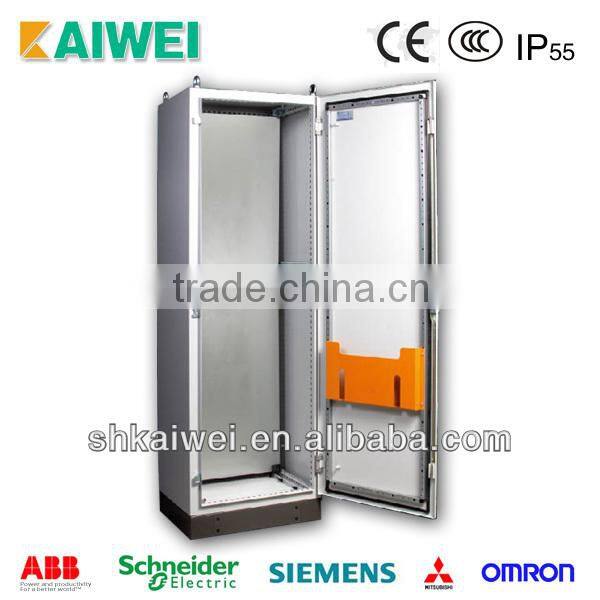

Main advantage of ES control equipment:

Stand-alone electric cabinet, inapplicable for cabinet incorporation.
High door plate (approx 25mm from the ground), to ensure smooth door opening.

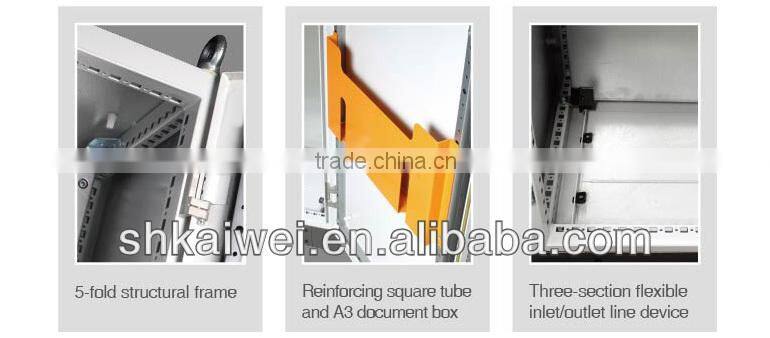

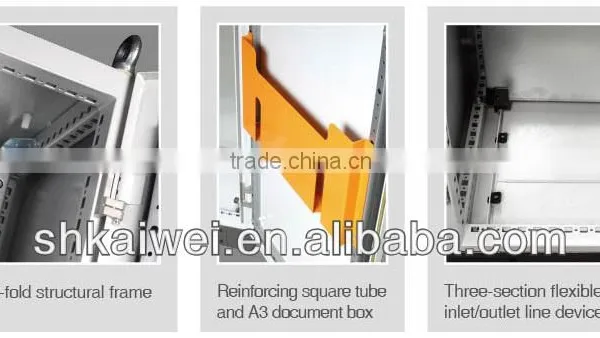

Unique main body frame integrally welded with 5-fold section ensures high strength and IP56 of cabinet body.

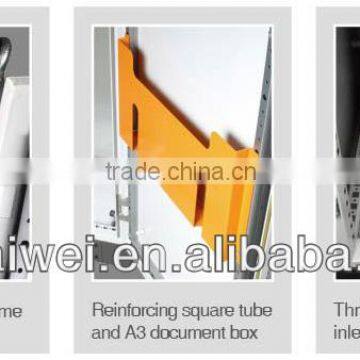

Special door plate square tube reinforcing system can be fixed on door plate by screws for easy disassembly.
Modular holes with spacing of 25mm on the frame ensure flexibility and universality of installation.
Optional 3.0mm galvanized mounting plate can be pushed into the cabinet by plastic slide through rail, U flanges on both sides ensure firmer plate and easy transporting.

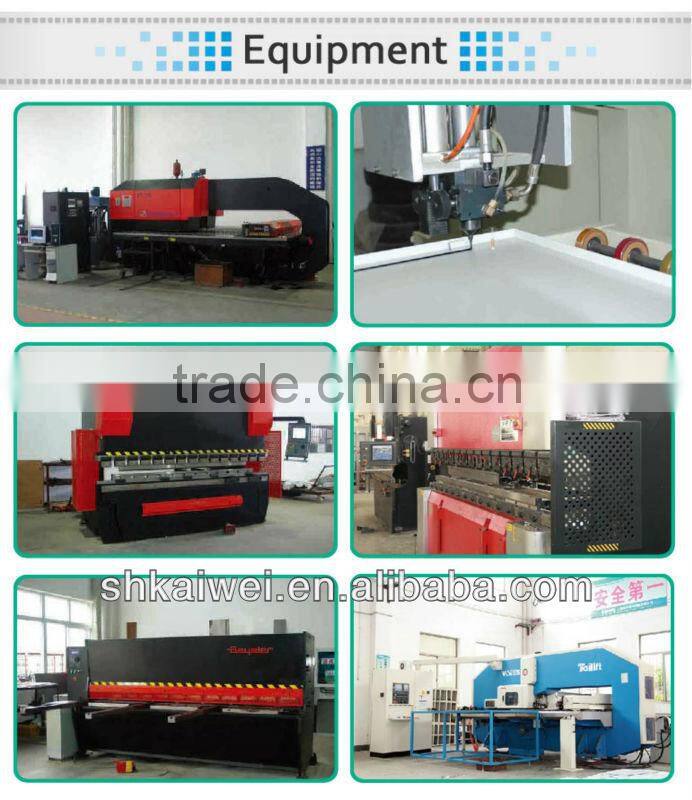

Equipment:

Office:

Certificates:
