WELCOME TO THE WEBSITE:en.
professional hot runner temperature instrument for plastic injection machine
The KT-300D series controller has been designed for moulding applications with a low number of control zones. Extremely compact, these twin zone modular controllers can be fitted into cabinets. The KT-300D series benefits from the latest manufacturing technology,including the optimum use of surface mounted electronic components(SMC) and becomes a new milestone in terms of performance, robustness and price.
GENERAL SPECIFICATIONS:
1. Twin Zone Modular Controller
2.More cabinet sizes to be selected
3.15 Amps per zone
4.Press up/down to adjust set temperature, there are two keys of A and B, A for the first zone, B for the second zone
STANDARD FEATURES:
1.Automatic, manual, and standby mode
2.Soft start mode
3.Separately adjustable alarms on temperature deviation(High and Low)
4.Alarms on thermocouple faults(breakage, inversion)
5.Alarms on heater faults
6.Power on self test
ADVANCED FEATURES:
1.Shift to manual mode in case of temperature failure
2.Alarms on faults during working
SPECIFICATION:
| Control Accuracy | ±1°c |
| Temperature Unit | °c or °F (menu-selectable) |
| Temperature Range | 50 ~ 550 °c |
| Thermocouple | Type J or K |
| Operation Mode | Auto, Manual and Standby Mode |
| Process Sampling Rate | 25 ms |
| Temperature Stability | ±0.5% |
| Output | PHA, OCR |
| Overload Protection | field-replaceable fuses |

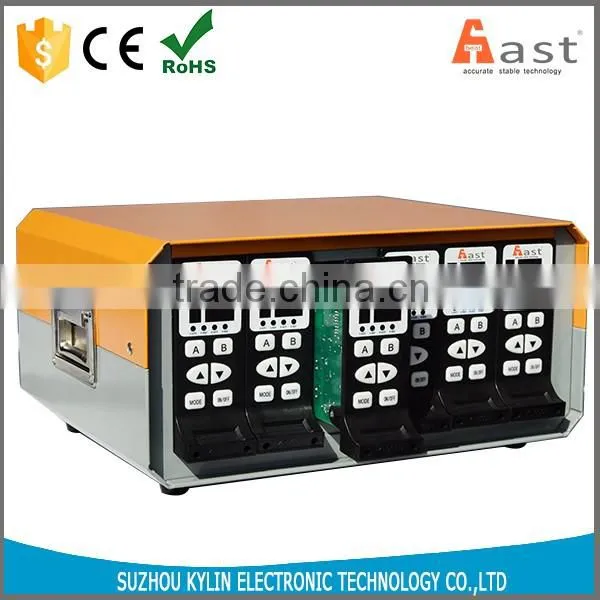

Product Picture:
Connector:
10 Years Experience On Hot Runner Mould
SuZhou Kylin Electronic Technology Co.,Ltd founded in 2007, was a subsidiary of ShenZhen Kylin Hot Runner Accessories Co., Ltd founded in 2003. After 10 years of efforts and development, we has a certain scale and strength. We specialize in industrial communications products and temperature control equipment's research and development, manufacturing and sales of FCS, and has a highly skilled R & D team and a good after-sales service system. With excellent product quality, professional and safe technical service strength, we can provide customers with better services quality.
1.OEM Service
2.Have professional R&D group, all your technical requirement will be customized.
3.24 online service,email will get back in 24 hours.
Package:International standard wooden case
Delivery: 5 working days after confirm the deposit.
Shipping: EXPRESS, AIR, SEA
L/C or T/T
Contact us if you require specific details for your application.
We will response and fulfill your needs soonest.
Please contact us directly .
We are looking forward to your inquiry and develop a long-term business relationship with you!
