Touch screen hot runner injection mold temperature controller
- 2000 Piece / Pieces per Month
- Shenzhen
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | AST | Model Number: | KT-600D |
Usage: | Other, Industrial, Industrial | Theory: | Other, Temperature Controller, Temperature Controller | Accuracy: | ±1 ℃ |
Temperature Range: | 50℃-530℃ |
Product Description
WELCOME TO THE WEBSITE:en.

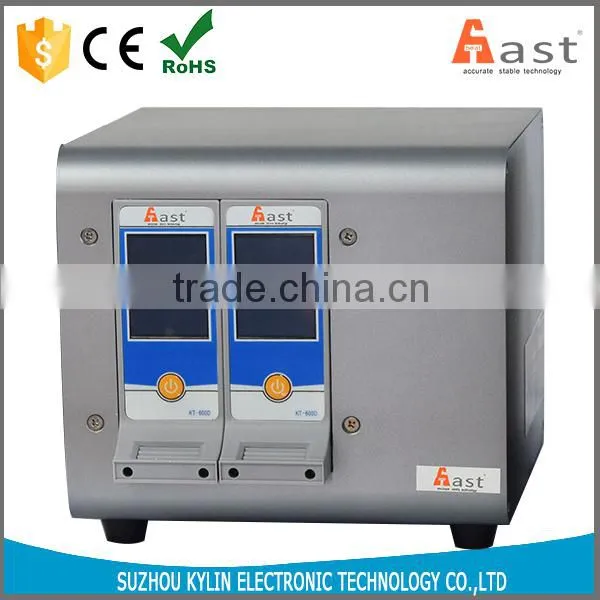

Touch screen hot runner temperature controller for plastic injection molding machine
The KT-600D series controller is a microprocessor based double zone temperature controller specially designed for hot runner applications and compatible with all standard mainframes .Centralized control: The controller is assembled with inner temperature control card and display. Inner temperature control card is integrated with multiple-point temperature control chip and connected to the display via data cable. The display can show preset temperature, actual temperature and alarm of all heating points, and you may set temperature parameters of all heating points via the display. In case of controlling over same quantity of heating points, the volume of centralized controller is the smallest one due to its highly-integrated inner temperature control card.
The inner circuit board of centralized controller controls multiple points so the processing technique for circuit is more demanding. Controller producers apply high-end temperature control technology and display operating software to centralized controller. In terms of controlling over 16 heating points, the advantage of centralized controller in performance-price ratio is obvious.
GENERAL SPECIFICATIONS:
1. Simple Modular Controller
2. More cabinet sizes to be selected
3. 15 Amps per zone
4. Press up/down to adjust set temperature
STANDARD FEATURES:
1.Automatic, manual, and standby mode
2.Soft start mode
3.Separately adjustable alarms on temperature deviation(High and Low)
4.Alarms on thermocouple faults(breakage, inversion)
5.Alarms on heater faults
6.Power on self test
ADVANCED FEATURES:
1.Shift to manual mode in case of temperature failure
2.Alarms on faults during working
SPECIFICATION:
Control Accuracy | ±1°c |
Temperature Unit | ℃ or °F (menu-selectable) |
Temperature Range | 50 ~ 550 °c |
Thermocouple | Type J or K |
Operation Mode | Auto, Manual and Standby Mode |
Temperature Stability | ±0.5% |
Process Sampling Rate | 25 ms |
Output | PID/PIDD |
Product pictures:
10 Years Experience On Hot Runner Mould
SuZhou Kylin Electronic Technology Co.,Ltd founded in 2007, was a subsidiary of ShenZhen Kylin Hot Runner Accessories Co., Ltd founded in 2003. After 10 years of efforts and development, we has a certain scale and strength.We specialize in industrial communications products and temperature control equipment's research and development, manufacturing and sales of FCS, and has a highly skilled R & D team and a good after-sales service system. With excellent product quality, professional and safe technical service strength, we can provide customers with better services quality.
By virtue of our rich experiences, our sales staff acting as your advisor will recommend products with highest performance-price ratio to you according to your requirements. Our warehouse system's safe inventory ensures that you can get the desired goods at any time. Our engineers pay special attentions to your suggestions and complaints to improve the quality of our products. The market of hot runner system in China becomes mature gradually. The market with benign growth cultivates excellent manufacturer of hot runner system, injection molding corporations boasting rich experiences in using hot runner. These corporations need a reliable provider of quality hot runner accessory. The best choice is Kylin. Kylin always pays great efforts to become the best provider of hot runner accessory to survive and satisfy customer's requirements.
Certificate:
1. OEM Service
2. Have professional R&D group,all your techical requirement will be customized
3. 24 online service,email will get back in 24 hours
L/C or T/T
Contact us if you are interested in our products.We will response and fulfill your needs soonest.
We are looking forward to your inquiry and develop a long-term business relationship with you!
