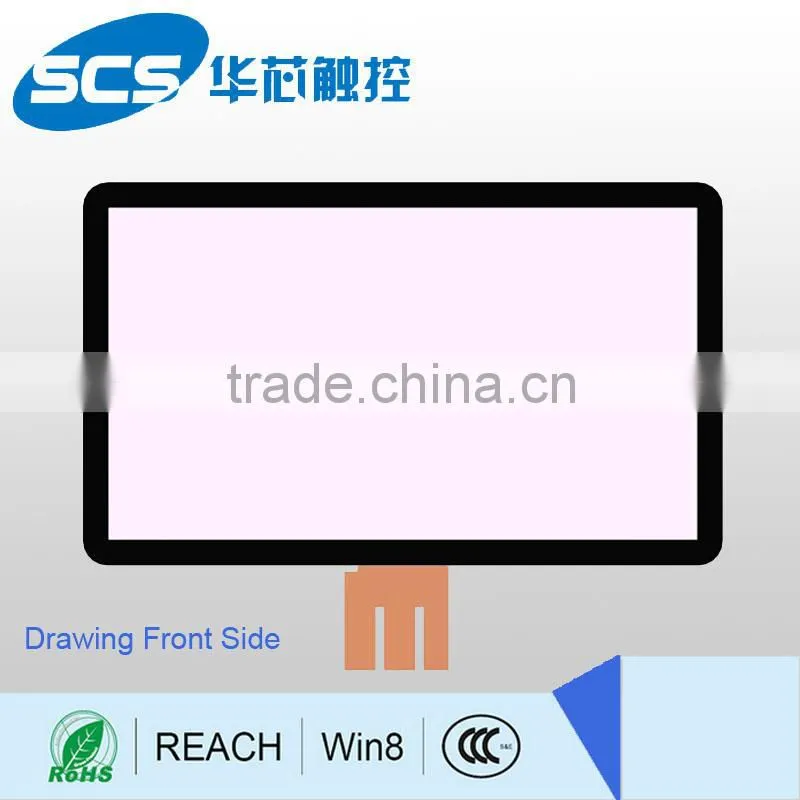

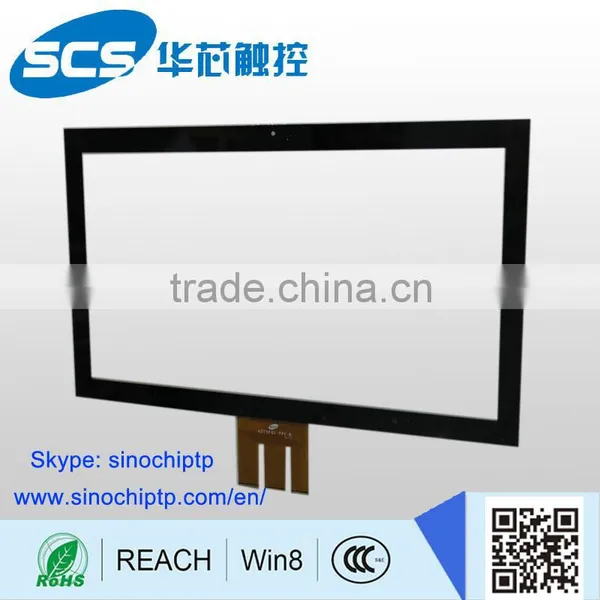

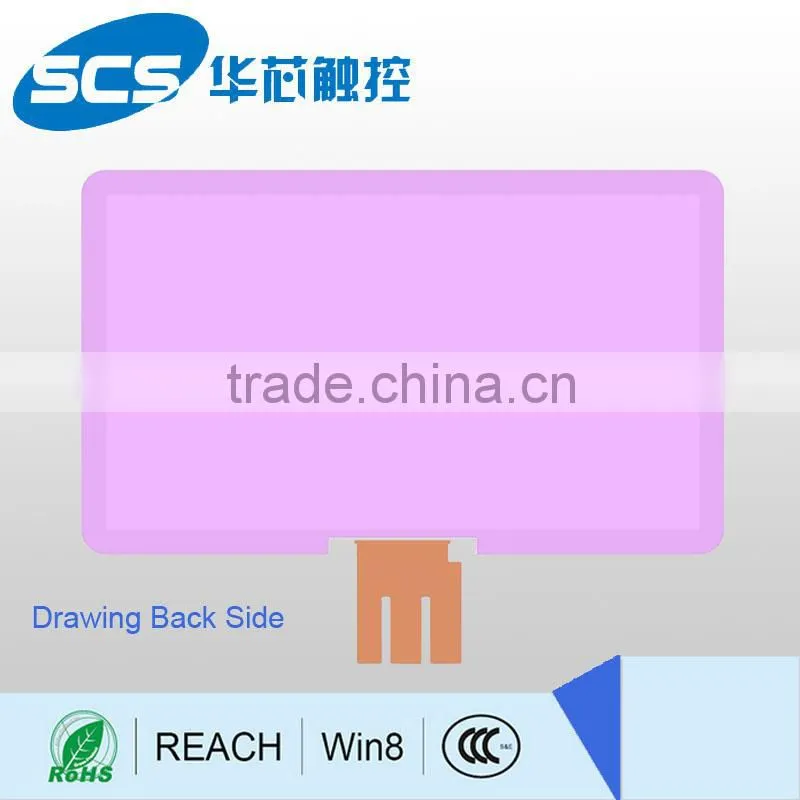

Help Center21.5 Inch 16:9 USB Touch Panel for Restaurant Table
Related Products
-
Large Size Usb Capacitive Touch Screen PanelUS$ 108 - 120MOQ: 1 Piece -
Laptop Touchscreen With High Strength and Anti-reflection TreatmentUS$ 57.00 - 62.00MOQ: 100 Pieces
-
Tft Lcd Capacitive Touch Screen Module Touch ScreenUS$ 13.5 - 16.5MOQ: 1 Piece
-
23.6 Inch Industrial Custom Capacitive Touch PanelUS$ 95 - 105MOQ: 1 Piece
-
Large Size PCAP Touch Panel Andriod and Win System CampatibleUS$ 108 - 120MOQ: 1 Piece
Item |
Description |
Tolerance |
Touch Panel Size |
21.5 inch |
Accordance drawing |
TP Outline Dimension |
520.64mm*312.11mm*2.9 (T) mm |
W & L: ± 0.30 mm |
T: ± 0.30mm | ||
Viewable Area |
478.84mm*270.31mm |
± 0.30mm |
Frame Color |
Black |
- |
Module Weight |
TBD |
TBD |
Cover Lens |
Single Side & Double Layer |
2.8mm± 0.25mm |
ITO Glass | ||
FPC |
Polyimide film |
0.1mm± 0.05 mm |
PCB |
SIS9250+SIS9202 |
0.91 mm±0.05 mm |
Molex 53261-0471 |
3.40 mm±0.05 mm |
|
Transmittance |
Min87% (550nm) |
- |
Surface Hardness |
>7H |
- |
Multi-touch |
10 points |
- |
Applications |
Andriod/WIN/Linux |
- |
Interface |
USB 2.0/IIC/RS232 |
- |
Touch Panel BU, a subsidiary of Sinochip Semiconductors Co., Ltd. (SCS), a leading IC solution provider in China, was founded in Jinan Comprehensive Free Trade Zone by Jinan High-tech Zone administrative committee and SCS in 2013. SCS dedicates to R&D, manufacture and sales of TP and also provides integrated touch panel solution.
SCS owns the first large-size OGS TP production line in China and products size is from 10” to 28”. We has developed own innovative OGS hi-technologies and our products have been incorporated into financial self-service equipment, industrial computer, military products, medical terminal, vehicle electronics, information inquiry systems, panel controller and consumer electronics.
SCS has an outstanding team in the TP R&D, process, manufacture, quality control and customer service. We are committed to introduce high quality OGS TP products with cost advantage and also offer a whole TP turn-key solution for ODM and OEM. SCS has passed the certifications of ISO 9001, ISO 14001, IECQ QC 080000, and our products meet the standard of ROHS, REACH, Microsoft Windows and CCC.
SCS devotes to becoming the leading company of OGS TP solution supplier in China. We welcome all TP’s customers, solution deliverers, monitor suppliers, equipment vendors, open-frame suppliers and material suppliers to discuss cooperation. We sincerely look forward to developing Chinese TP industry together with all our partners.
