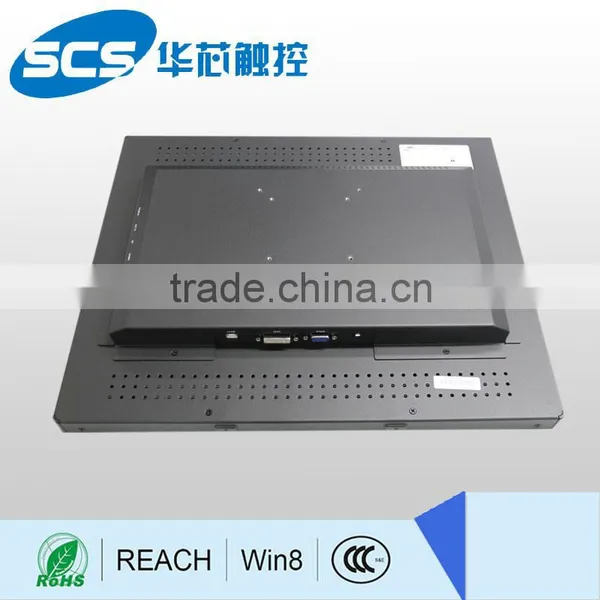

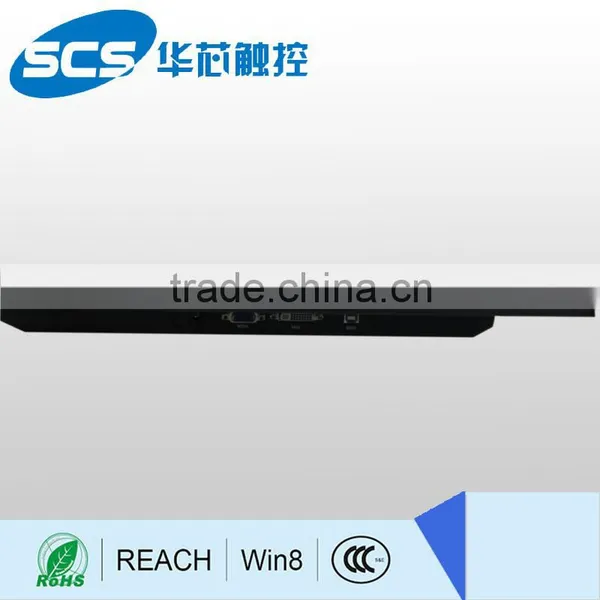

Touch Screen LCD Monitor, 1024/2048 level pressure sensitivity
- 50000 Piece / Pieces per Month
- Qingdao Jinan airport
- T/T Credit Card
- 12.1" SVGA Open Frame Touch Screen Industrial LCD Display (LCD Module)
- 7" Open Type Module (OTM) Touch Screen Industrial LCD Display
- 7" Open Type Module (OTM) Touch Screen Embedded LCD Monitor
- 17" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 19" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 12.1" XGA Open Frame Touch Screen Embedded LCD Monitor (LCD Module)
Product Details
Products Status: | Stock | Screen Size: | Other, 19" | Type: | Capacitive |
Interface Type: | D-Sub, DVI, Serial, USB | Resolution: | Other | Brand Name: | SCS |
Model Number: | PA190B01A01 | Place of Origin: | Shandong, China |
Product Description
Item | Standard | ||
Content | Remark | ||
Open frame | Size | 429mm x 356.40mm x 55.50mm | Note1 |
Type | Open frame with touch | ||
VA | 376.32mm x 301.06mm | Note1 | |
Data interface | USB (Type B) | ||
Video | VGA& DVI-D | ||
Power jack | DC φ5.5/2.1mm | ||
Power Spec | DC 12V/2A | ||
Power consume | ≤20W | ||
Supported OS | Android / Windows XP/7/8/8.1 | Note2 | |
Anti-View Film | Transmintance | 60%, ±5% | |
View Angle | ±35° | ||
Apprearance Treatment | matte surface | ||
Thickness | ≤0.5mm | ||
LCM | Type | LED | |
LED size | 19'' | ||
LED type | MV190E0M-N10 | ||
Aspect Ratio | 4:03 | ||
Resolution | 1280xR.G.Bx1024@60Hz | ||
Color | 16.7M | ||
AA | 376.32mm x 301.06mm | ||
Luminance | 250Cd/m2 (Type) | ||
CR | 1500:01:00 | ||
LCD Type | TN | ||
Backlight type | LED | ||
Working time | ≥50,000hours | ||
Response time | ≤5ms | ||
Other features | Dust and water proof | ||
Touch panel | TP size | 19'' | |
TP type | projective capacitance | ||
TP structure | OGS | ||
Aspect Ratio | 4:3 | ||
Transmintance | ≥95% | ||
Frame color | Black | ||
AA | 376.32mm x 301.06mm | Note1 | |
Hardness | 7H | ||
Strength | 509g ball, 100cm | Note3 | |
Data interface | USB | Note2 | |
Response time | ≤10ms | ||
Operation mode | touch(finger/ passive stylus) | ||
Touch panel life time | ≥50,000,000times | ||
Touch point | 10 points | ||
Report rate | >100 points/sec |
Touch Panel BU, a subsidiary of Sinochip Semiconductors Co., Ltd. (SCS), a leading IC solution provider in China, was founded in Jinan Comprehensive Free Trade Zone by Jinan High-tech Zone administrative committee and SCS in 2013. SCS dedicates to R&D, manufacture and sales of TP and also provides integrated touch panel solution.
SCS owns the first large-size OGS TP production line in China and products size is from 10” to 28”. We has developed own innovative OGS hi-technologies and our products have been incorporated into financial self-service equipment, industrial computer, military products, medical terminal, vehicle electronics, information inquiry systems, panel controller and consumer electronics.
SCS has an outstanding team in the TP R&D, process, manufacture, quality control and customer service. We are committed to introduce high quality OGS TP products with cost advantage and also offer a whole TP turn-key solution for ODM and OEM. SCS has passed the certifications of ISO 9001, ISO 14001, IECQ QC 080000, and our products meet the standard of ROHS, REACH, Microsoft Windows and CCC.
SCS devotes to becoming the leading company of OGS TP solution supplier in China. We welcome all TP’s customers, solution deliverers, monitor suppliers, equipment vendors, open-frame suppliers and material suppliers to discuss cooperation. We sincerely look forward to developing Chinese TP industry together with all our partners.
