Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 3kw Open Frame Air Cooled Diesel Generator-KOOP

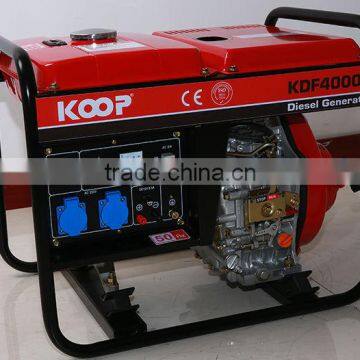

3kw Open Frame Air Cooled Diesel Generator-KOOP
US$ 300 - 500
MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KOOP
Model Number:
KDF4000X
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANG HAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
KOOP
Model Number
KDF4000X
Output Type
AC Single Phase
Speed
3000/3600
Frequency
50/60
Rated Power
2.8
Rated Voltage
220V
Rated Current
12.7A
Specifications
1.Air Cooled Single Cylinder Diesel Generator2.Portable and Easy Maintance
3. CE Certificate
4. Longer service Life
Professional Manufacture Factory of High Quality Air Cooled Diesel Engine, Generator and Water Pump for many years
| KOOP Air Cooled Diesel Generator | ||||
| Model | KDF4000X/XE | KDF6700X/XE | ||
| Rated Frequency(Hz) | 50 | 60 | 50 | 60 |
| Rated Voltage(V) | 220,230,240,110/220,115/230,120/240,220/380 | |||
| Rated Output(KVA) | 2.6 | 3 | 4.5 | 5 |
| Max Output(KVA) | 3 | 3.3 | 5 | 5.5 |
| Rated Rotation Speed(rpm) | 3000 | 3600 | 3000 | 3600 |
| Power Factor(Cos¢) | 1/0.8 | |||
| Phase Number | Single/Three | |||
| Fuel Consumption(g/KW.h) | 370 | 340 | ||
| Fuel Tank Capacity(L) | 12.5 | |||
| Continuous Running Time(hr) at rated power | 14 | 7 | ||
| Noise Level(dBA@7m)(Zero Load~Full Load) | 72~77 | 75~79 | ||
| Starting System | X:Recoil Starter;XE:Electric Starter | |||
| Fuel Type | 0#(Summer),-10#(Winter),-35#(Chill Cold)Diesel Oil | |||
| Lube | SAE10W30(above CD Grade) | |||
| Engine Model | X:KD178F | X:KD186FA | ||
| XE:KD178FE | XE:KD186FAE | |||
| Engine Type | 1-Cylinder,4-Stroke, Air Cooled,Vertical,Diesel Engine | |||
| BorexStroke(mm) | 78x62 | 86x72 | ||
| Displacement(cc) | 296 | 418 | ||
| Compression Ratio | 20:01 | 19:01 | ||
| Rated Power(KW/RPM) | 3.7/3000 | 4.0/3600 | 6/3000 | 6.6/3600 |
| Overall Dimension(mm)(LxWxH) | 685x470x570 | 735x485x620 | ||
