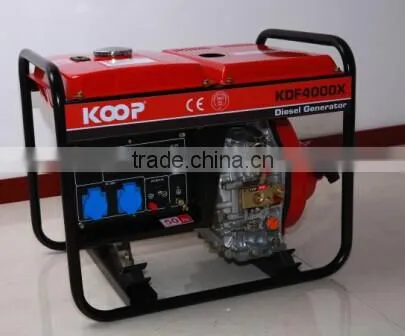

Model KDF4000X/XE
Rated frequency (Hz) 50 60
Rated voltage (V) 220, 230, 240, 110/220, 115/230, 120/240 220/380 230/400
Rated output power (KVA) 2.6 3
Max output power (KVA) 3 3.3
Rated rotation speed (rpm) 3000 3600
Power factor cosφ 1/0.8 1/0.8
Phase number Single/Three Single/Three
DC output 12V 8.3A 12V 8.3A
Excitation transistorized Self-excitation, brushless
Structure type Open-frame
Fuel consumption (g/KW.h) 370
Fuel tank capacity (L) 12.5
Continuous running time (hr)(at rated power) 14
Noise level (dBA@7m) (zero load ~ full load) 72-77
Starting system X: recoil starter; XE: electric starter
Fuel type 0# (summer), -10# (winter), -35# (chill cold) diesel oil
Lube SAE10W30 (above CC grade)
Engine model X: KD178F
XE: KD178FE
Engine type 1-cylinder, 4-stroke, air-cooled, verical, diesel engine
Bore×stroke (mm) 78×62
Displacement (cm³) 0.296
Compression ratio 20:1
Rated power (KW/rpm) 3.7/3000 4.0/3600
Optional standard ATS
Remote control
Three phase
Wheel and handle
Net weight (kg) X: 65 XE: 70
Overall dimension (mm)(L×W×H) 685*470*570
