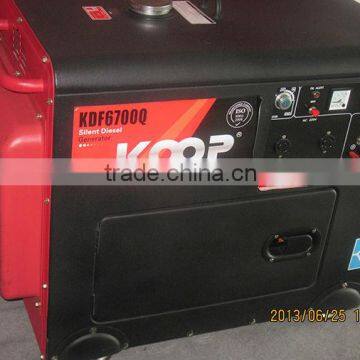

Super Silent Diesel Generator-KOOP-KDF6700Q
US$ 200 - 800
MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KOOP
Model Number:
KDF6700Q
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
KOOP
Model Number
KDF6700Q
Output Type
AC Single Phase
Speed
3000/3600rpm
Frequency
50/60hz
Rated Power
5kw, 5KW
Rated Voltage
220v
Specifications
1.Lower Noise Air Cooled Diesel Generator2.Compact and Portable
3.Easy Maintance
4.CE,EPA Certificated
Manufacturer high quality Air Cooled Diesel Generator-Sound Proof/Silent
| Model | KDF6700Q | |
| Rated Frequency | 50 | 60 |
| Rated Voltage(V) | 220,230,240,220/110,230/115,240/120,220/380,230/400 | |
| Rated Output Power(KVA) | 5 | 5.5 |
| Rated Rotation Speed(rpm) | 3000 | 3600 |
| DC Output | 12V 8.3A | |
| Power Factor Cos¢ | 1/0.8 | |
| Phase Number | Single Phase/Three Phase | |
| Excitation Mode | Self-excitation Brushless | |
| Noise LeveldB(A)@7m(Zero Load-Full Load) | 70-74 | |
| Structure Model | Sound Proof With Cannopy | |
| Connection Mode | Single Bearing,Rotor Drive Shaft,Rigid Coupling | |
| Engine Model | KD186FAE | |
| Engine Type | 1-Cylinder,4-Stroke,Air Cooled,Direct Injection,Diesel Engine | |
| Displacement[cm³(Cu-in)] | 418(25.51) | |
| Compression Ratio | 19:01 | |
| Rated Power[KW(hp)/rpm] | 5.8(7.9)/3600 | |
| Starting System | Electric Starting | |
| Rotation Direction(View from Flywheel) | Clockwise | |
| Fuel Type | 0#(Summer),-10#(Winter) Diesel Oil | |
| Lube | SAE10W30(Above CD Grade) | |
| Low Oil Pressure alarm system | With | |
| Optional Standard | ATS | |
| Remote Control | ||
| Three Phase Voltage | ||
| Digital Panel | ||
| Overall Dimension[mm](LxWxH) | 960*560*770 | |
| Net Weight(kg) | 170 | |
