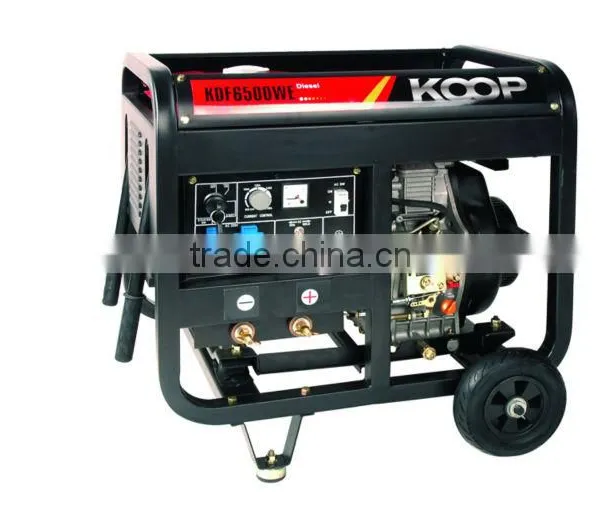

Diesel Welder&Generator

Diesel Welder&Generator thumbnail-1
Diesel Welder&Generator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
koop
Model Number:
KDF6500WE
Contact Supplier Request Quote Chat Now
Changzhou Koop Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name koop
Model Number KDF6500WE

Specifications

ce approved,powered by KOOP advanced air-cooled diesel engine,large silent muffler&air cleaner reducing exhaust and intake noise


Rated frequency (Hz)  50  60
Rated voltage (V)  230  240
Rated current (A)  8.7  9.2
Rated output power (KVA)  2  2.2
Rated rotation speed (rpm)  3000  3600
Welding voltage without load (V)  55-65
Rated current (A)  160
Work voltage (V)  26
Current regulation range (A)  50-180
Welding load continuous ratio  60%
Power factor cosφ  1
Phase number  Single phase
Noise level dB(A)@7m (zero load-full load)  74-79
Net weight [kg(lbs)]  154 (338)
Overall dimension [mm(in)](L×W×H)  775×485×580 (30.51×19.09×22.83)
Structure model  Open-frame
Engine model  KD186FE
Engine type  1-cyliner, 4-stroke, air-cooled, vertical, diesel engine
Displacement [cm³(Cu-in)]     406 (24.78)
Compression ratio  19:01
Rated power [KW(Hp)/rpm]  6.3 (8.6)/3600
Rated rotation speed (rpm)  3000/3600
T.C.L.  No
Spark plug  12V electric starter
Starting system  Electric starting
Rotation direction (view from flywheel)  Clockwise
Fuel type  0- (summer), -10-(winter) diesel oil
Lube  SAE10W30 (above CC grade)
Low oil pressure alarm system  With
