Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Open Frame Diesel Generator

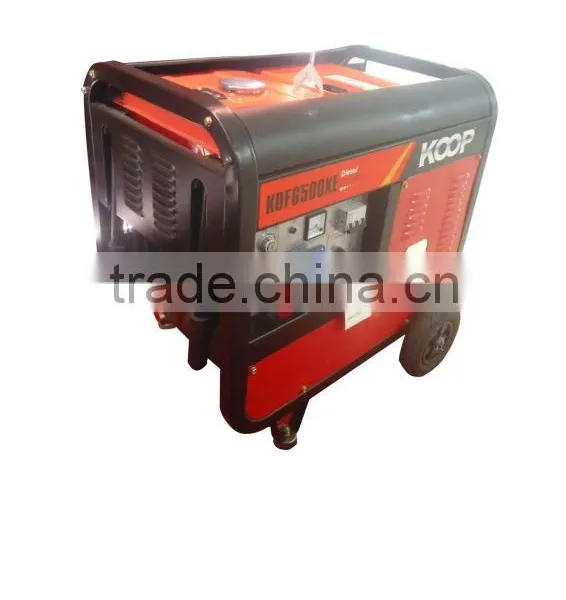

Open Frame Diesel Generator
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KOOP
Model Number:
KDF6500XE
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
KOOP
Model Number
KDF6500XE
Output Type
AC Single Phase
Speed
3000
Frequency
50
Rated Power
5
Rated Voltage
220
Specifications
1. CE approved, powered by KOOP advanced air-cooled diesel engine.2. Large fuel tank, ensuring hours of continuous output
4.
| Model | KDF6500X-3/XE-3 | |
| Rated frequency (Hz) | 50 | 60 |
| Rated voltage (V) | 380/220, 400/230, 420/240 | |
| Rated output power (KVA) | 4.2 | 4.5 |
| Max output power (KVA) | 4.5 | 5 |
| Rated rotation speed (rpm) | 3000 | 36000 |
| Power factor cosφ | 0.8 (lag) | |
| Phase number | Three | |
| Pole number | 2 | |
| Excitation transistorized | Self-excitation, constant voltage (AVR) | |
| ATS type | Without ATS, optional | |
| Structure type | Open-frame | |
| Fuel consumption (g/KW.h) | 360 | |
| Fuel tank capacity (L) | 12.5 | |
| Continuous running time (hr)(at rated power) | 7.5 | |
| Noise level (dBA@7m) (zero load ~ full load) | 75-79 | |
| Net weight (kg) | X: 95 | XE-3: 100 |
| Overall dimension (mm)(L×W×H) | 735×485×670 | |
| Starting system | X: recoil starter; XE: electric starter | |
| Fuel type | 0 (summer), -10 (winter), -35 (chill cold) diesel oil | |
| Lube | SAE10W30 (above CC grade) | |
| Engine model | X-3: KD186F | |
| XE-3: KD186FE | ||
| Engine type | 1-cylinder, 4-stroke, air-cooled, verical, diesel engine | |
| Bore×stroke (mm) | 86×70 | |
| Displacement (cm³) | 0.406 | |
| Compression ratio | 19:1 | |
| Rated power (KW/rpm) | 5.7/3000 | 6.3/3600 |
| Rotation direction (view from the flywheel) | Clockwise | |
