Specifications

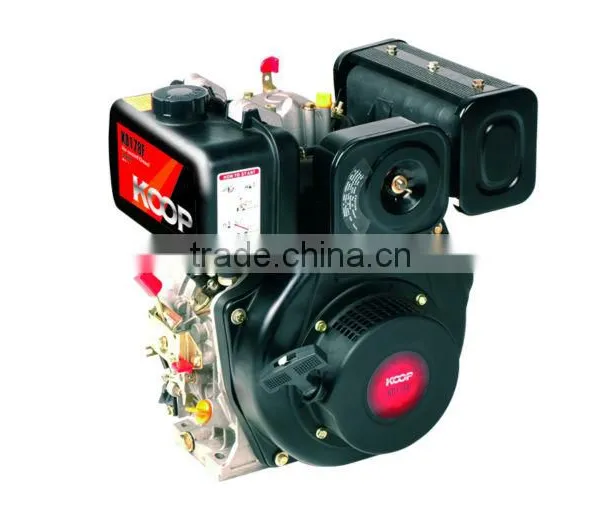

single cylinder,quick starting,electric starter or recoil starter,EPA approved,EPA 5HP 1 cylinder diesel engine
We are the manufactory, the price will be more favorable & reasonable for the direct order.
Model |
KD178F/FE |
Type |
Vertical, 1-cylinder, 4-stroke, air-cooled |
Combustion system |
Direct injection |
Bore×storke [mm(in)] |
78×62 (3.07×2.44) |
Displacement [L(cc)] |
0.296(406) |
Compression ratio |
20:1 |
Rated power [KW/rpm] |
3.7/3000,4/3600 |
Rated power [HP/rpm] |
5.0/3000,5.5/3600 |
Rated speed (rpm) |
3000/3600 |
Starting system |
F: Recoil starter; E: Eletric starter |
Fuel tank capacity [L(US.gal)] |
3.5 (0.92) |
Lube capacity [L(US.gal)] |
1.1(0.29) |
Fuel consumpition [g(ml)/KWh] |
3000rpm: 276 (378) |
3600rpm: 285 (391) | |
Fuel |
0 (summer), -10 (winter) diesel oil |
Lube |
SAE10W30 (above CC grade) |
Overall dimension [mm(in)](L×W×H) |
400×420×450 (15.75×16.54×17.72) |
Net weight [kg(lbs)] |
Recoil starter : 33 (72.6) |
Electric starter : 38 (83.6) | |
Rotaion direction (view from flywheel) |
Clockwise |
Send Inquiry to This Supplier
