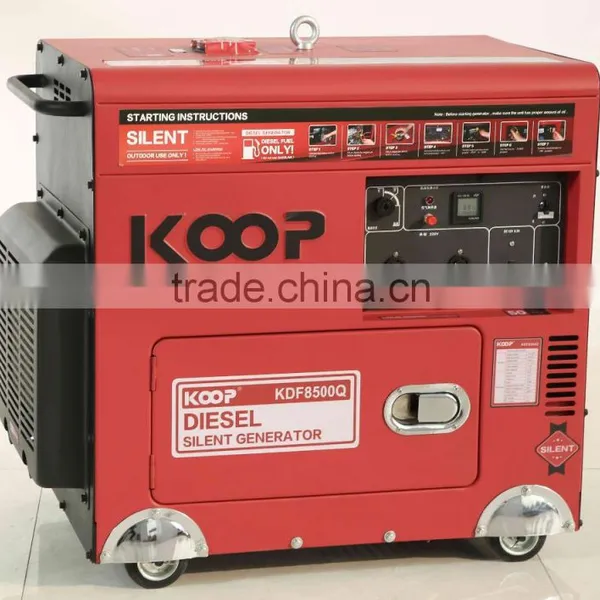

Silent Generator

Silent Generator thumbnail-1
Silent Generator photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
OEM
Model Number:
KDF8500Q
Contact Supplier Request Quote Chat Now
Changzhou Koop Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name OEM
Model Number KDF8500Q
Output Type AC Single Phase
Speed 3000/3600rpm
Frequency 50/60HZ
Rated Power 6.5
Rated Voltage 220V
Rated Current 30A
Model  KDF8500Q
Rated frequency (Hz) 50 60
Rated voltage (V) 220, 230, 240, 220/110, 230/115, 240/120 220/380 230/400
Rated output power (KVA) 6 6.5
Rated rotation speed (rpm) 3000 3600
DC output 12V, 8.3A
Power factor cosφ 1/0.8
Phase number Single phase/Three phase
Excitation mode  Self-excitation Brushless
Noise level dB(A)@7m                     (zero load - full load) 70-74
Structure model Low noise type with enclosure
Connection mode  Single bearing, rotor drive shaft, rigid coupling
Engine model KD192FAE
Engine type  1-cylinder, 4-stroke, air-cooled, direct injection, diesel engine
Displacement [cm³(Cu-in)] 499
Compression ratio 19:01
Rated power [KW(Hp)/rpm] 8(12)/3600 8.6(14)/3600
Starting system Electric starting
Rotation direction (view from flywheel) Clockwise
Fuel type 0# (sumber), 10# (winter) diesel oil
Lube SAE10W30 (above CC grade)
Low oil pressure alarm system With
Optional standard  ATS
Remote control
Three phase voltage
digital panel
Overall dimension [mm](L×W×H) 960*520*760
Net weight kg 155
