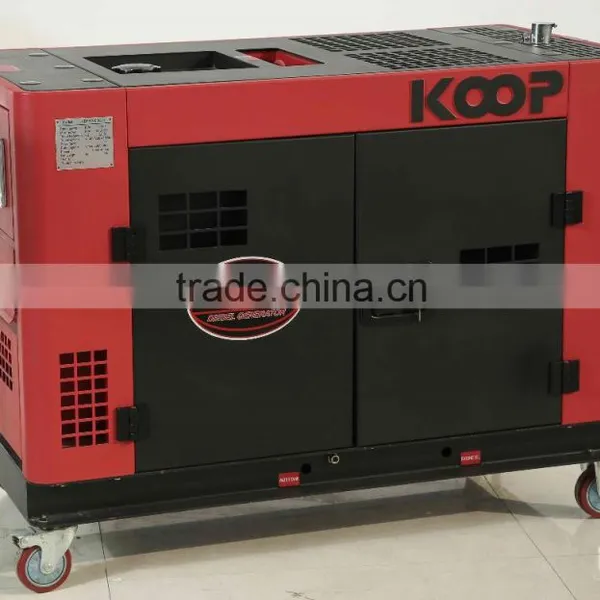

DIesel Generator
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KOOP
Model Number:
KDF16000XE-3
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
50HZ 6kva 6kw Portable Silent Diesel GeneratorUS$ 600 - 700MOQ: 5 Sets -
60HZ 7kva 7kw Portable Silent Diesel GeneratorUS$ 600 - 700MOQ: 5 Sets
-
SUPER SILENT GENERATORUS$ 700.00 - 700.00MOQ: 5 Sets
-
60HZ 7kva 7kw Super Silent Diesel Generator 65dBUS$ 750 - 850MOQ: 5 Sets
-
50HZ 7kva 7kw Super Silent Diesel Generator 65dBUS$ 750 - 850MOQ: 5 Sets
Place of Origin
Jiangsu, China
Brand Name
KOOP
Model Number
KDF16000XE-3
Output Type
AC Three Phase
Speed
3000/3600rpm
Frequency
50/60HZ
Rated Power
10KVA
Rated Voltage
220V/380V
Rated Current
36A
| Model | KDF16000Q3 | |
| Frequency(HZ) | 50 | 60 |
| Rated Speed(rpm/min) | 3000 | 3600 |
| Rated Power(KW/KVA) | 10/12.5 | 12/15 |
| Max.Power(KW/KVA) | 11/13.8 | 13.2/16.5 |
| Engine Model | KD292F | |
| Engine Type | Vertical 2-Cylinder,4-Stroke,Air Cooled | |
| Starting Way | Electric | |
| Cooling Way | Air Cooled | |
| Rated Power Fuel Consumption g/Kw.h | <330/3000min | <340/3600min |
| Inlet Way | normally aspirated | |
| Compressed Ratio | 19:1 | |
| Bore*Stroke(mm) | 2-92*75 | |
| Displacement(L) | 0.997 | |
| Firebox Type | Direct Injection | |
| Fuel Capacity(L) | 45 | |
| Fuel Type | 0#(Summer),-10#(Winter)Diesel Oil | |
| Noise(dB)(@7m) | 80 | 75 |
| Voltage(V) | 220,230,240,220/110,220/380,230/400,240/415 | |
| Phase | Three Phase | |
| Power Factor | 1.0/0.8 | |
| Open/Silent | Both | |
| Overall Dimension(mm) | 960x675x910 | 1160x720x960 |
| Weight(Kg) | 230 | 355 |
