CO2 Up and Down Table Laser Cutting and engraving Machine
Main Features
1.Al platform design with 240mm height to ensure rotary device working smoothly.
2.48 gears improve lifting strength on basic of big contacting area.
3.Adjustable design of bold screw holder offer lower noisy and stable moving.
4.Both limited switches on top and bottom, protecting working table.
Technical Parameter
Model | VLC-N1006 | VLC-N1309 | Option |
Working Area | 1000*600*240mm | 1300*900*240mm | According to demands |
Laser Power | 40w/50w/60w/80w/100w/130w//150w | ||

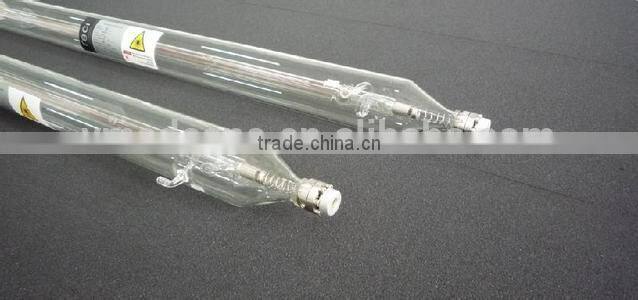

Laser Type | CO2 Sealed Laser Tube,10.6μm | ||
Cooling Type | Water Cooling | ||
Engraving Speed | 0-60000mm/min | ||
Cutting Speed | 0-40000mm/min | ||
Laser Output Control | 0-100% Set by Software | ||
Min.Engraving Size | Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm | ||
Highest Scanning Precision | 4000DPI | ||
Locating Accuracy | ≤+0.01mm | ||
Controlling Software | DSP Control System | ||
Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||
Compatible Software | CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. | ||
Color Separation | Yes | ||
Drive System | High-precision 3-phase Stepper Motor | ||
Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||
Power Supply | AC110V/220V+10%,50HZ/60HZ | ||
Working Environment | Temperature:0-45C,Humidity:5-95%(No Condensate Water) | ||
Packing Size | According to the Model | ||
Net Weight | According to the Model | ||
Option | Honeycomb Worktable,Rotary Device,Auto-focus Device | ||

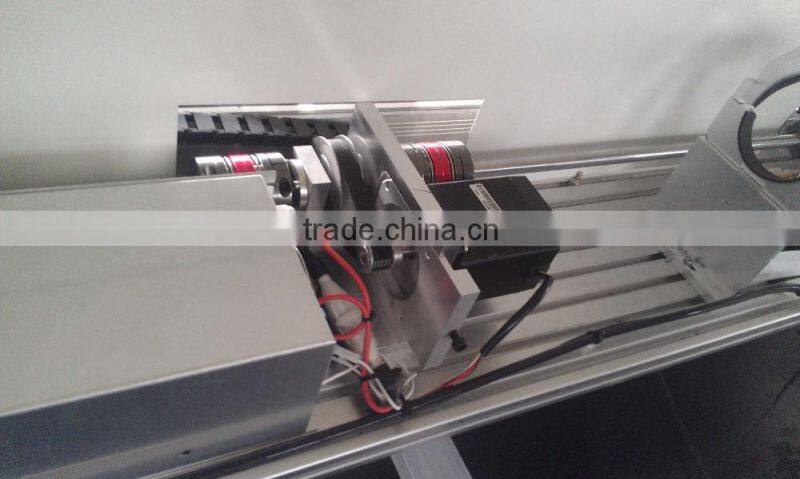

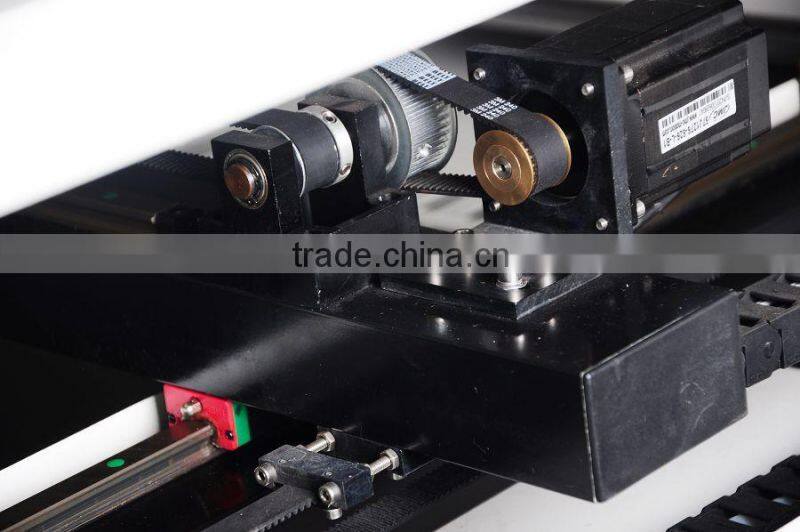

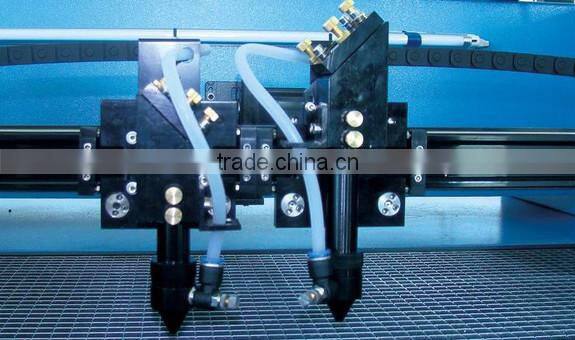

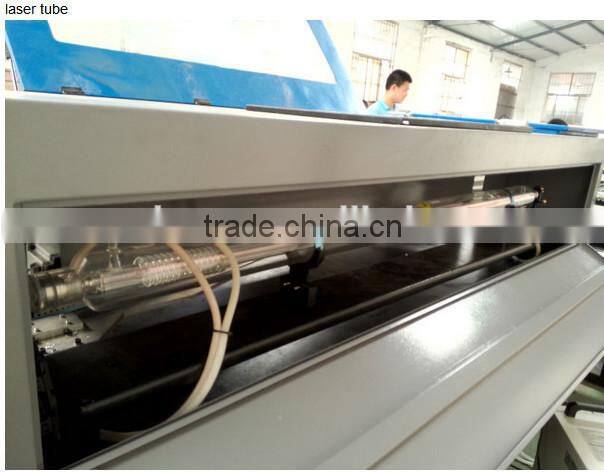

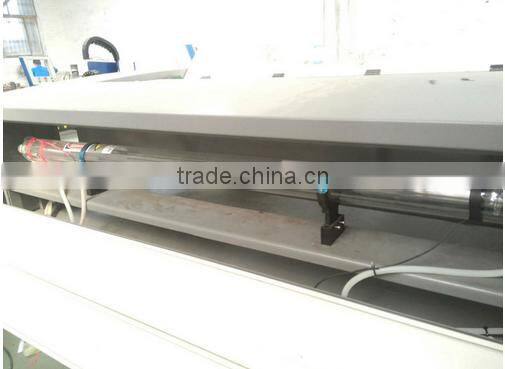

Details Part
Samples
Nice Invitation Card Cutting
Happy Wedding and Valentines Day Car Cutting
1.One year warranty for the whole machine.
2.Teach video and detailed manual sent with the machine.
3.24 hours online support.
4.Professional technical support
5.Free design and guide for customer
6.Free software update
7.We can supply the new machine parts or fix the old one.
Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in high-tech zone, Jinan City,
Shandong Province of China.
It is a professional team which specialized in Optic, Electricity, Mechanics, and R&D field. Vmade keep delicate and
attentive attitude on every step and always keep to learn the most advanced technology and create more humanized
products to all our customers.
