High Speed ,3-phase Stepper Motor Driver

Name: High Speed ,3-phase Stepper Motor Driver
Brand: DEWO
SKU: 106294685
Availability: InStock

Changzhou Dewo International Trade Co., Ltd.

High Speed ,3-phase Stepper Motor Driver thumbnail-1

High Speed ,3-phase Stepper Motor Driver photo-1

US$ 90 - 120 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

DEWO

Model Number:

M2280A

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name DEWO

Model Number M2280A

Motor Type Other, Stepper motor driver

Driver functions descriptions

Driver function	Operating instructions
Output current setting	Users can set the driver output current by SW8-SW10 three switches. The setting of the specific output current, please refer to the instructions of the driver panel figure.
Microstep setting	Users can set the driver Microstep by the SW1-SW5 five switches. The setting of the specific Microstep subdivision, please refer to the instructions of the driver panel figure.
Single/double Pulse setting	SW7 sets pulse mode, setting “on” as double pulse mode, setting “off” as pulse + direction mode.
Self-test setting	When SW1-SW5 five switches are all on “off”, the driver will test the motor normal or not according to the inner 1KHZ pulse.
Automatic half current function	Users can set the driver half flow function by SW6. "OFF" indicates the quiescent current is set to half of the dynamic current, that is to say, 0.5 seconds after the cessation of the pulse, current reduce to about half automatically. "ON" indicates the quiescent current and the dynamic current are the same. User can set SW6 to "OFF", in order to reduce motor and driver heating and improve reliability.
Signal interfaces	PUL+ and PUL- are the positive and negative side of control pulse signal; DIR+ and DIR- are the positive and negative side of direction signal; ENA+ and ENA- are the positive and negative side of enable signal.
Motor interfaces	A+ and A- are connected to a phase winding of motor; B+ and B- are connected to another phase winding of motor. If you need to backward, one of the phase windings can be reversed.
Power interfaces	It uses AC power supply. Recommended operating voltage is 110VAC-220VAC, and power consumption should be greater than 500W.
Indicator lights	There are two indicator lights. Power indicator is green. When the driver power on, the green light will always be lit. Fault indicator is red, when there is over-voltage or over-current fault, the red light will always be lit; after the driver fault is cleared, if re-power the red light will be off.
Installation instructions	Driver dimensions:198×130×76mm, please refer to dimensions diagram. Please leave 10CM space for heat dissipation. During installation, it should be close to the metal cabinet for heat dissipation.

Control signal and external interface:

Signal amplitudes	External current limiting resistor R
5V	Without R
12V	680Ω
24V	1.8KΩ

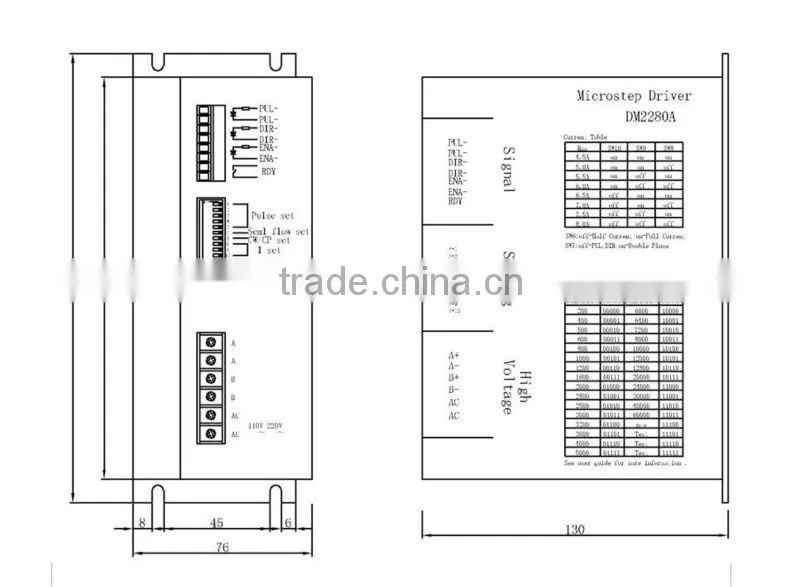

Outline and installation size (unit:mm)

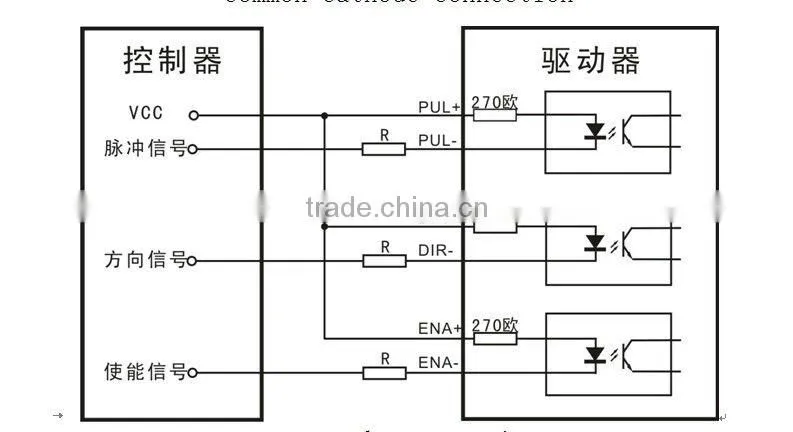

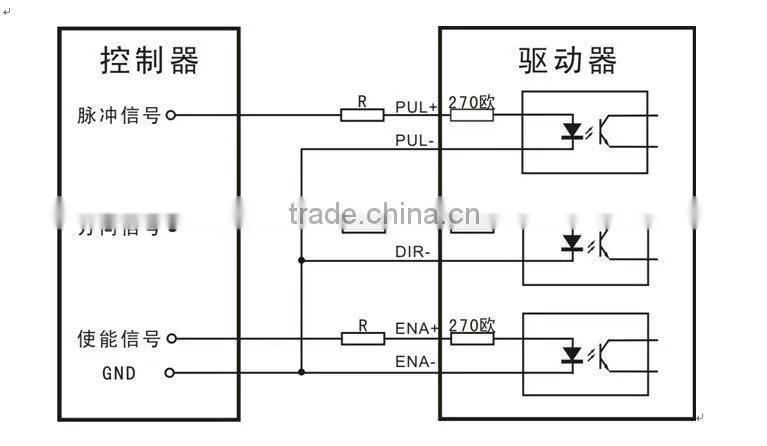

Signal interface details:

The internal interface circuits of the driver are isolated by the opt coupler signals, R in the figure is an external current limiting resistor. The connection is differential. And it has a good anti-jamming performance.
